Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Leading Technology

CINEMA 40 abounds with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

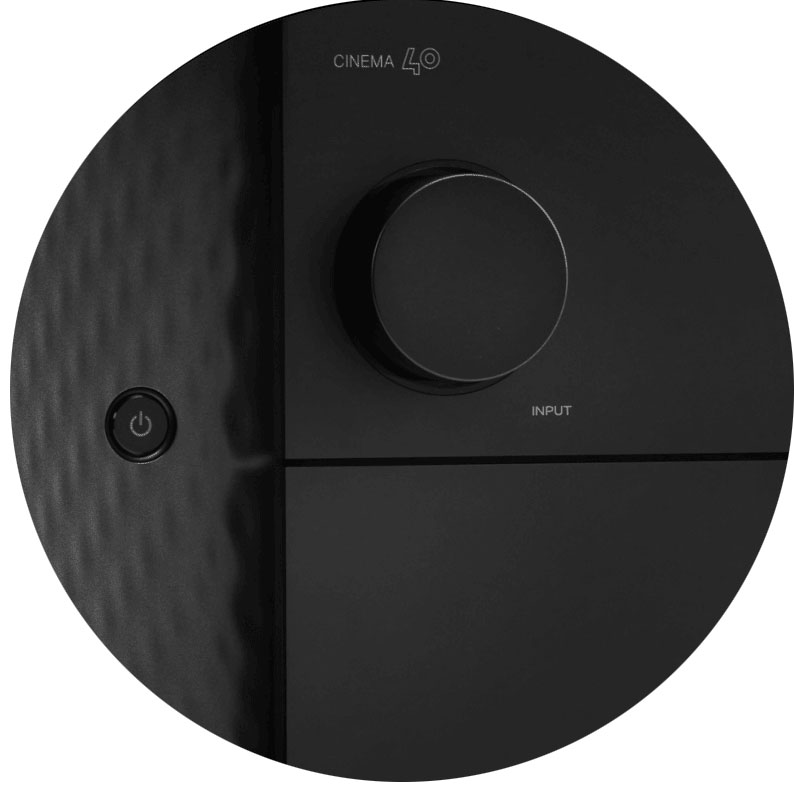

Exquisite Design

A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, symmetrical design, and front panel controls elegantly hidden from view.

Power Amplifier

Number of Powered Channels

• 9

Power Output

• 125W (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
• 165W (6 ohm, 1 kHz, 0.7% 2ch Drive)
• 235W (6 5ohm, 1 kHz, 10% 1ch Drive)

Amplifier Topology

• Class A/B

Bi-Amp Drive

• Assignable

Multichannel Surround Technologies

DTS

• DTS HD Master
• DTS:X
• DTS Neural:X
• DTS Virtual:X

Dolby

• Dolby TrueHD
• Dolby Atmos
• Dolby Atmos Height Virtualization
• Dolby Atmos Music
• Dolby Surround

Maximum Number of Processing (Pre-amp) channels

• 11.4ch

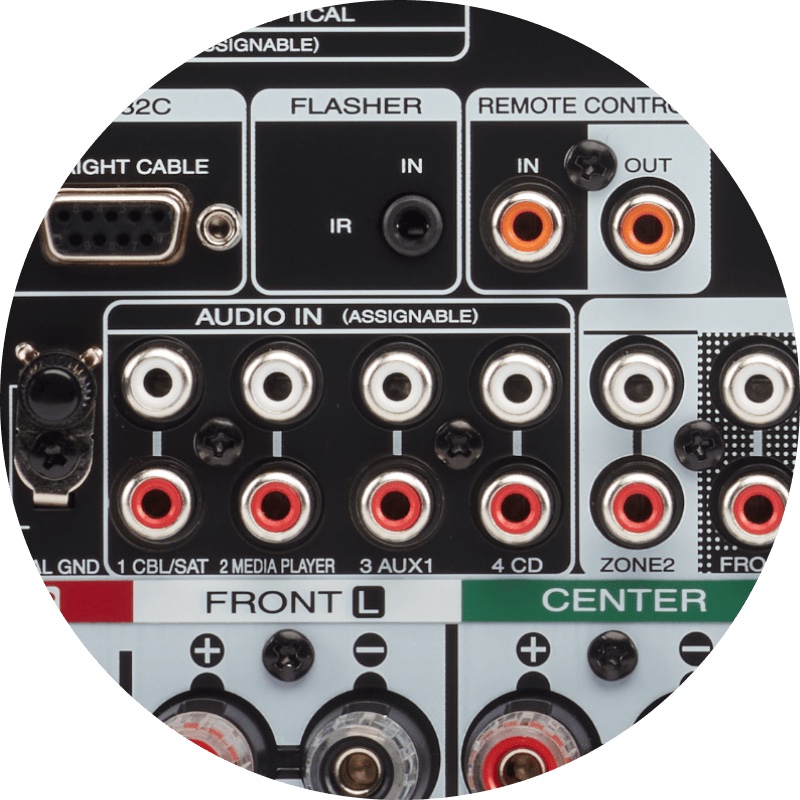

Inputs / Outputs

HDMI In / Out

• 7 / 3

Multi-Room Video Out via HDMI

• Yes

Analog In / Fixed Level Out

• 5 in / 0 out

Phono (MM) In

• Yes

Digital In: Optical / Coaxial

• 2 / 2

Multi-Room Out: analog / digital

• 2 / 0

Multichannel Preamp Out

• 11.4

Subwoofer Out

• 4 (independent)

Number of Speaker Terminals

• 11

Speaker A / B

• assignable

Multi-Room Speaker Terminal

• assignable

Front Inputs

• USB-A

USB Audio / Made for iPod / Made for iPhone

• Yes / No / No

AM/FM Tuner

• No

HDMI

Total HDMI Inputs / No. Support 8K

• 7 / 7

HDCP2.3 support

• Yes

HDMI Outputs: Main / Zone

• 2 / 1

Analog to HDMI Video Conversion

• Yes

HDMI Upscaling

• 1080P/4K to 8K

Max resolution @ framerate

• 8K/60Hz, 4K/120Hz

Audio Return Channel

• ARC, eARC

Video Dynamic Range

• HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR

ALLM (Auto Low Latency Mode) Pass-through for gaming

• Yes

Variable Refresh Rate / Quick Frame Transport

• Yes / Yes

HDMI Pass-Through in Standby Mode

• Yes

CEC

• Yes

DSD Audio over HDMI

• Yes

Auto LipSync

• Yes

PERFORMANCE TECHNOLOGIES

Copper Plated Chassis

• No

Toroidal Power Supply Transformer

• No

Hyper Dynamic Amplifier Modules (HDAM) (List version)

• Yes

Pure Direct Mode

• Yes

Gold Plated RCA Terminals

• Yes

Clock Jitter Reducer

• Yes

Acoustic / Room Correction

Audyssey

• MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume

• Yes / Yes

Audyssey LFC

• Yes / Yes

Dirac Live Upgradability

• Yes

Variable Cross Over

• Yes

Optimized Bass Redirection

• Yes

Bass Sync

• Yes

Music File Support

Lossy Formats

• MP3
• WMA
• AAC

Lossless formats

• FLAC HD 192/24
• WAV 192/24
• ALAC 192/31

DSD Audio

• 2.8 MHz
• 5.6MHz

Gapless Playback

• FLAC
• WAV
• ALAC
• DSD

Compressed Audio Enhancer: MDAX2

• Yes

Network Audio Sharing

• Yes

Streaming Services

HEOS Multi-room and Streaming

• Yes

AirPlay Audio Streaming

• AirPlay 2

Internet Radio

• TuneIn

Spotify*

• Spotify Connect

Pandora

• Yes

SiriusXM

• Yes

Other Streaming Services *

• Amazon Music HD
• Amazon Music
• TIDAL / Deezer
• iHeart Radio
• Napster
• SoundCloud
• Mood Mix

Roon tested

• Yes

Network Connectivity

Ethernet Ports

• Yes

Wi-Fi (include version / band)

• Yes

Bluetooth (Include version)

• Yes

Bluetooth Re-transmit for Bluetooth headphones

• Yes

Smart Home Integration and Control

Voice Assistant Compatibility

• Alexa
• Google Voice Assistant
• Apple HomePod

App for Smart Phones & Tablets (iOS & Android)

• Marantz AVR Remote App
• HEOS

HEOS Multi-Room Integrated

• Yes

HEOS Link Compatibility: IR/ IP

• Yes / Yes

Multi-Room zones

• 2

Zone Audio Source

• HDMI (2ch)
• Opt, Coax (2ch)
• Network, USB
• Analog

Zone Audio Output: Speaker / Preout

• Yes / Yes

Zone HDMI Output from HDMI Source

• Yes

Control Connectivity

• IP Control
• RS232 Control
• Web Control
• App Control

IR Flasher In

• Yes

Marantz Remote Bus

• Yes

DC Trigger Output

• 3

HDMI Diagnostics

• Yes

Others

Front Display

• 2 line FLD + port hole OLED

GUI Languages

• 9

Setup Assistant

• Yes

Smart Select on Remote

• Yes

Firmware Update by Network / USB

• Yes / Yes

ECO Mode

• Yes

Auto Power off

• Yes

Sleep Timer

• Yes

General

Availabe colours

• Black

Metal Front Panel

• Yes

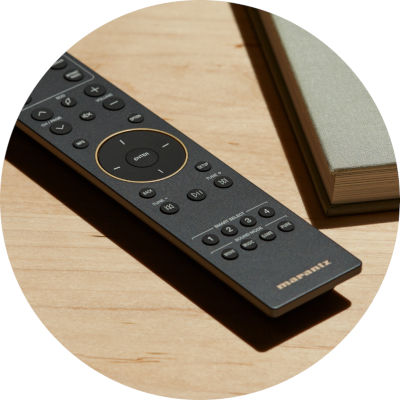

System Remote Control

• RC048SR

Power Consumption in W

• 710

Power Consumption No-Sound (ECO on/off) in W

• 65 / 110

Standby Consumption in W

• 0.2

CEC Standby Consumption in W

• 0.5

Network Standby Consumption in W

• Less than 2.0

Maximum Dimensions

Antenna:Horizontal:(W x D x H) in mm

• 440x414x185

Antenna:Vertical :(W x D x H) in mm

• 440x414x254

W/o Antenna:(W x D x H) in mm

• 440x401x185

Weight in kg

• 15.1kg

What's in the box

• Main unit
• remote control
• batteries
• wire labels
• quick start guide
• Audyssey microphone
• microphone stand
• 2 External Detachable Antenna
• AC cord
