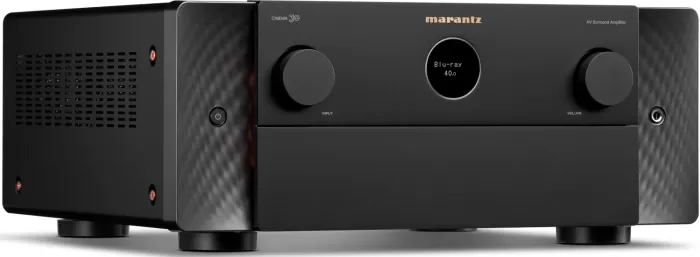

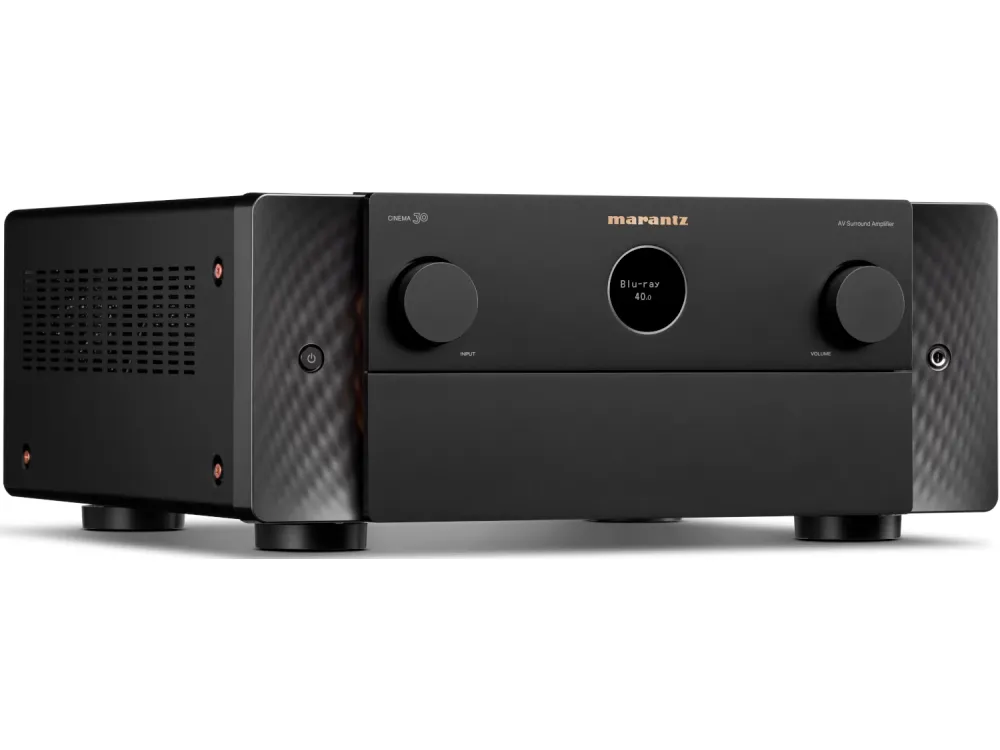

MARANTZ Cinema 30

REFERENCE 11.4 CHANNEL AV RECEIVER WITH 140W, 8K AND 7 HDMI INPUTS

Engineered with proprietary technology and crafted with premium materials for timeless style, CINEMA 30 redefines cinematic sound for superior home theatre systems.

$7,900.00

DESCRIPTION


	Achieve the Best Sound Possible Dirac Live is a professional room acoustic solution that enables you to optimize your sound systems and reduce unwanted effects introduced by the room. Utilizing purpose-built audio algorithms, this world-class software is now available as an upgrade with CINEMA 30.
Listen and watch differently with the new Marantz CINEMA series. With artisanal craftsmanship, inspired design, and 70 years of innovation. This is cinematic sound, redefined. That means sound that’s better than the theatres, to reveal entertainment the way it’s meant to be heard. Bring home the sound of cinema.	Sound For What You See
Believe in Quality
Highly Customizable Thoughtfully curated connectivity options, myriad speaker configurations, and room calibration capability allow you to make CINEMA 30 your own.

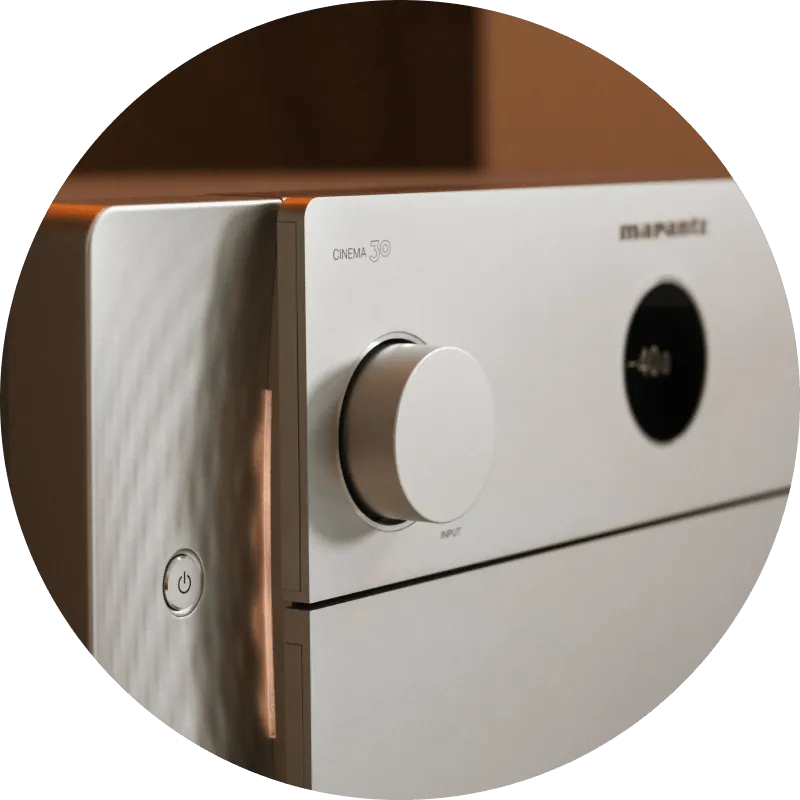

	Timeless Yet Modern Style Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.

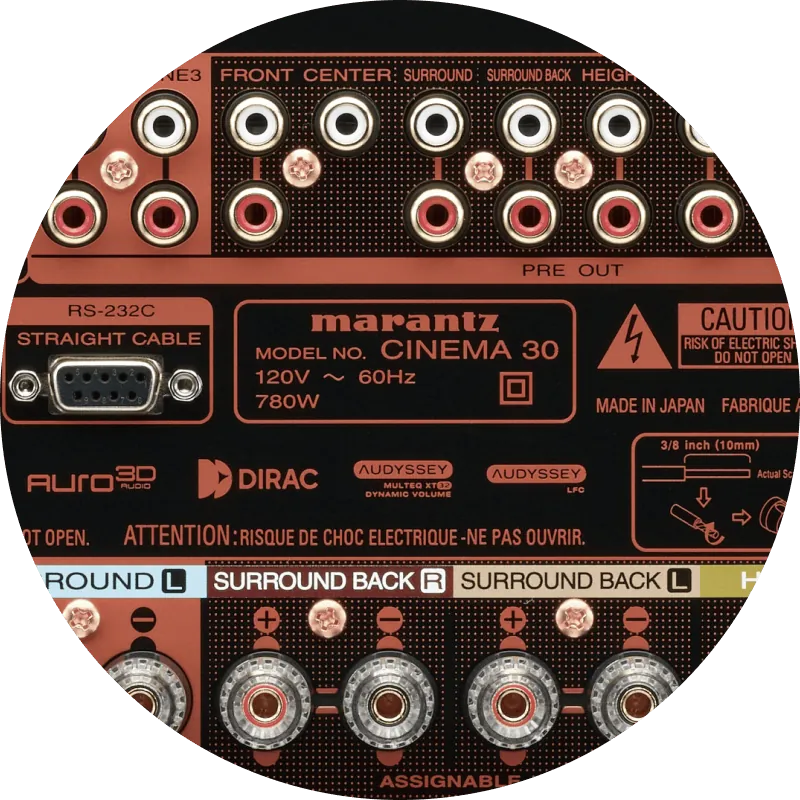

Complete Compatibility Seven HDMI inputs, plus digital, analog, and phono inputs – even analog video plus loudspeaker and pre-amp outputs – ensure connectivity to virtually any components you have.

Features

	High Power & Low Distortion Each channel is rated at 140W with 0.05% THD, making both powerful dynamics and subtle detail a reality.
	11 Channels & Countless Configurations Though 11 amplifier channels are built in, CINEMA 30 can process up to 13.4 channels, making the perfect speaker layout for your room easy to achieve.
	No Compromise Engineering HiFi performance technologies like HDAM SA-2 and more elevate the CINEMA 30 to performance levels seldom found in an AVR.
	Sound Master Tuned & Calibrated For You Powerful calibration and tuning tools are included, enabling you to get the best performance from your system.

Specifications

Specification

Multichannel Surround
DTS	DTS:HD Master DTS:X DTS:X Pro DTS Neural:X DTS Virtual:X
Dolby	Dolby TrueHD Dolby Atmos Dolby Atmos Height Virtualization Dolby Atmos Music Dolby Surround
IMAX Enhanced	Yes
Auro 3D	Yes
360 Reality Audio	Yes
MPEG H	Yes
Multichannel Stereo	Yes
Max Number of Processing (Preamp) Channels	13.4
Sound Enhancements
Discrete Power Amplifier	Yes
Copper Plated Chassis	Yes
Power Transformer	Toroidal
Current Feedback Topology	Yes
Hyper Dynamic Amplifier Modules (HDAM)	Yes
Pure Direct	Yes
Gold Plated RCA Terminals	Yes
Clock Jitter Reducer	Yes
Audyssey	MultEQ XT32 Dynamic EQ Dynamic Volume Low Frequency Control
DIRAC Live	Upgradeable
Compressed Audio Enhancer	MDAX2
Network
HEOS Multi-Room and Streaming	Yes
Bluetooth Re-Transmit for Bluetooth headphones	Yes (with volume control)
Works with Alexa	Yes
Network Audio Sharing	Yes
Lossy Format Support	MP3 WMA AAC
Lossless Format Support	FLAC (24bit, 192kHz,Gapless) WAV (24bit, 192kHz, Gapless) ALAC (24bit, 192kHz, Gapless) DSD (2.8MHz, 5.6MHz, Gapless)
AirPlay Audio Streaming	AirPlay 2
Internet Radio	TuneIn Radio (HEOS)
Streaming Services	Spotify Connect Amazon Music HD TIDAL Deezer SoundCloud iHeart Radio
ROON Tested	Yes
App Support	Marantz AVR Remote: Android iOS Amazon Kindle HEOS
Networking Interfaces	Wi-Fi Bluetooth RJ45 Ethernet
HDMI
HDCP 2.3 Support	Yes
HDMI Outputs	1x Main (with eARC) 1x Main Sub 1x 2nd Zone
Video Conversion	Analogue to HDMI
HDMI Scaling	Analogue and HDMI Up to 8K 60Hz
GUI Overlay on HDMI	Yes
HDMI 2.1 Features	8K/60Hz AB 4K/120Hz AB ALLM (Auto Low Latency Mode) VRR (Variable Refresh Rate) QFT (Quick Frame Transport) eARC
Pass Through	8K 60Hz AB 4K 120Hz AB HDR 3D Pass-through in Standby
HDMI 2.0 Features	3D 4K CEC ARC
HDR	HDR HDR 10+ Dolby Vision HLG Dynamic HDR
CEC	Yes
DSD	Yes
Audio Return Channel	ARC eARC
Auto LipSync	Yes
Multiroom / CI
HEOS Multi-Room Integrated	Yes
Multi-Room zones	Main Zone (Multichannel, up to 13.4 processing) 2nd and 3rd zones (2ch)
Zone Audio Source	HDMI (2ch) Digital Optical (2ch) Digital Coaxial (2ch) Network Streaming USB Analogue
Zone Audio Output	RCA Pre-Out (Fixed or Variable) Speaker Output Assignable
Zone HDMI Output from HDMI Source	Yes
Control	IP Control RS232 Web Control App Control
IR Flasher In	Yes
Marantz Control Bus	Yes
DC Trigger Output	3x 3.5mm Mono Minijack, 12V DC, 150ma
HDMI Diagnostics	Yes
Inputs/Outputs
Composite Video	2 Composite Video Inputs
Component Video	1 Component Video Input
HDMI	7 HDMI Inputs 1x Main Zone HDMI Output (with eARC) 1x Main Zone Sub HDMI Output 1x 2nd Zone HDMI Output
Multi Room Video	1x 2nd Zone HDMI Output
Analogue Audio	6x Analogue RCA Inputs 1x Analogue RCA Input (TUNER) 1x MM Phono Input
Phono	1x MM Phono Input
Digital Audio	2x TOSLink Optical Inputs 2x Coaxial RCA Inputs
Multi Room Output	2nd Zone HDMI 2nd Zone RCA Pre-Out or Speaker Output (assignable) 3rd Zone RCA Pre-Out or Speaker Output (assignable)
Multi-Channel Pre-Out	13.4 Channels
Subwoofer Pre-Out	4 (Independent)
Speaker Outputs	13 Speaker Output Terminals (+ and - Binding Posts) Gold Plated Screw Type Speaker Terminals
Assignable Speaker Channel Functions	Main Zone Speakers A/B Main Zone Front Bi-Amp Main Zone Height Channels 2nd Zone 3rd Zone
Front Terminals	USB-A (Mass Storage accessible via HEOS)
USB	USB-A on front panel (Mass Storage accessible via HEOS) USB-A Power Supply on Rear Panel
Specifications
Number of Power Amps	11
Power Output	8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive 140 W 6 ohm, 1 kHz, 0.7% 2ch Drive 175 W 6 ohm, 1 kHz, 10% 1ch Drive 250 W
70% Guarantee	Yes
Others
Auto Speaker Setup by Microphone	Audyssey MultEQ XT32 Dirac Live (upgrade)
Front Display	Port Hole OLED 2 Line FLD (behind front panel cover)
Graphic User Interface	Modern HD GUI 9 Languages
Setup Assistant	Yes
Smart Select	Yes
Firmware Update	USB Network
Audio Features	Variable Crossover Optimized Bass Redirection Bass Sync
ECO	ECO Mode Auto Power Off Sleep Timer
General
Metal Front Panel	Yes
System Remote Control	RC051SR
Power Consumption	780W PEAK 110W Idle 65W Idle (ECO ON) Standby Power Consumption: 0.2W Standby 0.5W with CEC Less than 2.0W Network Standby
Maximum Dimensions	442mm Width 457mm Depth 189mm Height 257mm Height with antennas vertical
Weight	19.4kg
What's in the Box	Marantz Cinema 30 Remote Control Batteries Wire Labels Quick Start Guide Audyssey Microphone Cardboard Microphone Stand 2 External Detachable Antennas AC Power Cable
