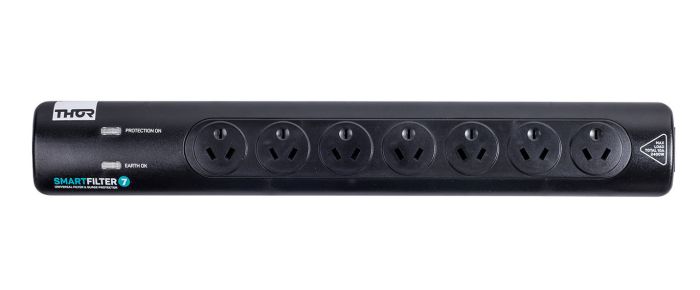

THOR D145B Universal Smart Filter & Surge Protector

SMART TECHNOLOGY POWER PROTECTION AND FILTRATION

Special Price $155.00 Regular Price $169.00
Brand

Warranty Period : 6 years

Sold as : Single Unit

Warranty Period : 6 years

Sold as : Single Unit

Save $14.00 8% off
  • 6 years
Thor Authorised Thor dealer

Fast Shipping

Australia Wide

6 years

Manufacturer's warranty

Family owned since 1969

Same store, same street, same owners.

Expert advice

Talk to our local team.



CLEVER PROTECTION FOR SMART TECHNOLOGY

SmartFilter 7 is a popular board because of its slimline profile. The SmartBrain passive filter adds to the industry leading protection capability offering an all round solution.


The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatabe sound and video quality. Improves performance in all types of computers too.SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.


Features

FOR TYPICAL USERS AND APPLICATION

Ideal for home office equipment, computers, home theatre components, sewing machines, fridges, washing machines and for users wanting superior AC mains and telephone surge protection against incoming disturbances whether in inner city, suburban, industrial, rural or domestic situations.

  • 6 Year free (non comercial) REPLACEMENT WARRANTY
  • 7 outlets ALL IN ONE COMPACT BOARD
  • Free connected EQUIPMENT WARRANTY UP TO $100,000
  • Fire Retardant board
  • Data/Voice protection
  • 1.2 Metre Cable length



Specification
Product Dimensions: 470mm(L) x 33mm(H) x 75mm(W)
Supply voltage 240/V AC 50/Hz
Maximum current rating 10amps/2400 W (VA)
Clamping voltage 300 V AC
Reaction time less than 1 nanosecond
Maximum transient spike impulse current 156,000 amps (equivalent to 39,000 amps using UL1449 standard)
Maximum energy dissipation 4588 Joules (equivalent to 1550 Joules using UL1449 standard)
Protection modes (all 7 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
EMI/RFI noise reduction filter type
Total number of protected AC outlets: 7
RJ 45 data protection: 1 in and 1 out
Earth potential rise protection
Earth leakage range less than 1 milli amp
Operating temperatures: -10C/+60C
Cable length: 1.2m
Model No: D1/45B
