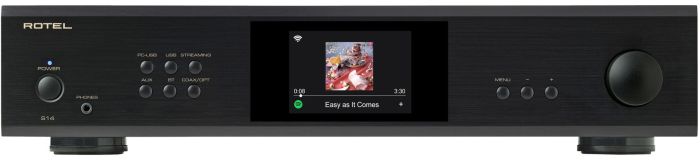

ROTEL S14 Streaming Integrated Amplifier

The Rotel S14 Integrated Network Streamer is an all-in-one solution providing the ultimate in convenience to the near limitless catalog of music delivering 150 Watts of Class AB power.

Album artwork on the front display, included remote, simple operation and intuitive setup ensures the S14 becomes the heart of your music system.

$2,474.00 Regular Price $2,749.00

The Rotel S14 Integrated Network Streamer is an all-in-one solution providing convenient, intuitive access to the near limitless catalog of online music. High resolution audio including MQA from Tidal and Qobuz is rendered with detailed precision through a 32-bit ESS DAC delivering 150 Watts of Class AB power into 4 ohms.

The front panel color display presents album artwork, track, and title information and simplifies the setup and configuration process using the included remote control. The S14 connects to both hard-wired and dual-band Wi-Fi networks for installation flexibility.

Use your favorite music player App or use the S14 App to access thousands of Internet Radio stations.

The S14 also includes Coaxial, Optical, Analog, PC-USB and aptXTM HD Bluetooth source inputs for legacy devices and even plays MP3, WMA and AAC files from flash drives.

This just-add-speakers solution continues to deliver on the promise of quality, performance, and value synonymous with Rotel.

Features
  • Certified Roon Ready
  • Supports MQA and MQA Studio
  • 2x 150 Watts of Robust Class A/B Power (4 Ohms)
  • ESS Premium 32-bit Digital to Analogue Converter
  • aptXâ„¢ HD Bluetooth
Specification

Power Output

  • 150W/Ch (4Ω) Maximum
  • 80W/Ch (8Ω) Continuous

Total Harmonic Distortion

  • <0.04%

Frequency Response

  • 10Hz - 100kHz, ±0.5dB Line Level Inputs
  • 10Hz - 90kHz, ±2.0dB Digital Inputs

S/N Ratio

  • 100dB Line Level Inputs
  • 98dB Digital Inputs

BTU Rating

  • 733 BTU/h (4Ω, 1/8th power)

Intermodulation Distortion

  • <0.03% (60Hz:7kHz, 4:1)

Damping Factor

  • 400

Input Sensitivity

  • 200mV Line Level Inputs
  • -20dBfs Digital Inputs

Input Impedance

  • 47kΩ Line Level Inputs
  • 75Ω Digital Inputs

Input Overload

  • 4.5V Line Level Inputs

Tone Controls

  • Bass: ±10dB at 100Hz and below
  • Treble: ±10dB at 10kHz and above

Digital Resolution Support

  • 24bit/192kHz (Coaxial/Optical)
  • 24bit/384kHz (USB Audio Class 2.0) (Driver Installation Required)
  • MQA and MQA Studio (up to 24bit/384kHz)

Power

  • 230V / 50Hz
  • <0.5W Standby
  • 280W PEAK

Inputs

  • Coaxial Digital
  • Optical Digital
  • USB-B
  • Analogue RCA
  • Bluetooth
  • Network Streaming (Wi-Fi/RJ45 Ethernet)

Outputs

  • Speaker Outputs
  • RCA Pre-Out
  • Subwoofer Pre-Out

Dimensions

  • 430mm Width
  • 345mm Depth
  • 93mm Height
  • 80mm Front Panel Height

Weight

  • 9.15kg
