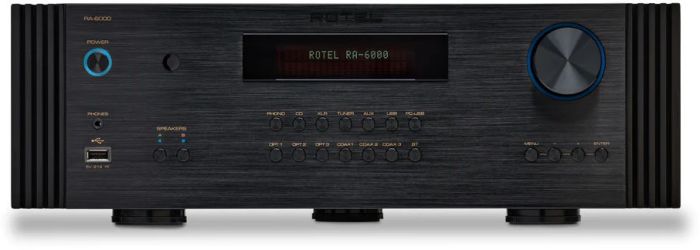

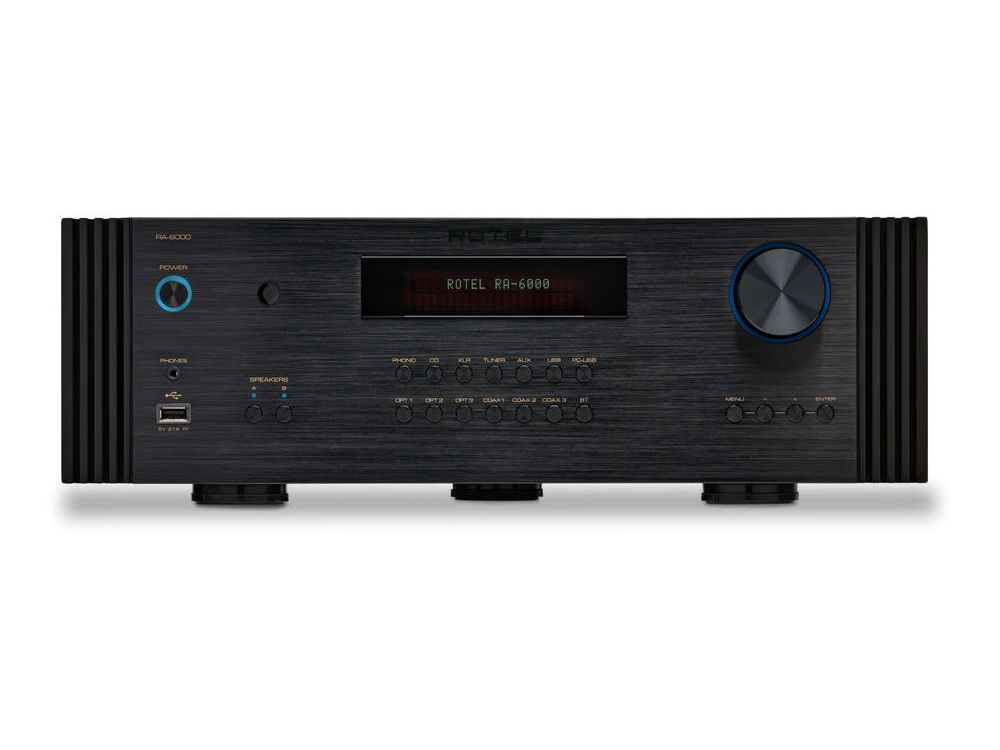

ROTEL RA 6000 Diamond Integrated Amplifier

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

$3,249.00 Regular Price $6,499.00

DESCRIPTION

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans.

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.

Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.

Features

	Certified ROON Tested
	Supports MQA and MQA Studio
	2 x 350 Watts of robust Class A/B Power into 4 Ohms
	Wireless aptX™ HD and AAC Bluetooth
	Texus Instruments premium 32-bit/384kHz Digital to Analogue Converter

Specifications

Specification


Dimensions	431mm Width 144mm Height 425mm Depth
Front Panel Height	3RU 132.6mm
Power Requirements	230V 50Hz
Power Consumption	500W PEAK <0.5W Standby
Net Weight	18.81kg
Thermal Output	1239 BTU per hour (4 Ohms, 1/8th power)
Maximum Power Output	350W/ch (4Ω)
Continuous Power Output	200W/Ch (8Ω)
Total Harmonic Distortion	<0.0075%
Frequency Response	Line Level Inputs: 10Hz-100kHz +/-0.5dB Digital Inputs: 10Hz-90kHz +/-2dB Phono Input: 20Hz-20kHz +/-0.5dB
Signal to Noise Ratio (IHF "A" Weighted)	Line Level Inputs: 103dB Digital Inputs: 102dB Phono Input: 80dB
Intermodulation Distortion	<0.03% (60Hz:7kHz, 4:1)
Damping Factor	600
Input Sensitivity	Line Level Inputs (RCA): 340mV Line Level Inputs (XLR): 540mV Digital Inputs: 0dBfs Phono Input (MM): 5.2mV
Input Impedance	Line Level Inputs (RCA): 5.6kΩ Line Level Inputs (XLR): 100Ω Digital Inputs: 75Ω Phono Input (MM): 47kΩ
Input Overload	Line Level Inputs (RCA): 3.5V Line Level Inputs (XLR): 4.5V Phono Input (MM): 52mV
Pre-Out Level	1.9V
Output Impedance	100Ω
Digital Input Signal Support (Coax, Optical)	LPCM up to 24bit-192kHz
PC-USB	USB Audio Class 2.0 (up to 32-bit/384kHz)* ^{*Driver installation required} MQA and MQA Studio (up to 24-bit/384kHz) ROON Tested
