ROTEL A10MKII

Integrated Amplifier

$879.00

The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience.

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A10MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher into more challenging loudspeakers.

All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

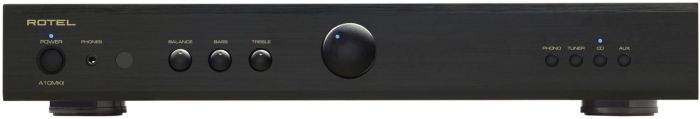

An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat.

Features
  • 2 x 50 Watts of robust power, 8 Ω
  • Includes remote control
  • Moving Magnet Phono input for turntable connection
  • Class AB amplifier design
  •  High current power supply
Specification

S/N RATIO (IHF "A" Weighted)

  • Line Level Inputs: 90dB
  • Phono Input: 85dB

FREQUENCY RESPONSE

  • Line Level Inputs: 10Hz - 100kHz, -0.5dB, +0.05dB
  • Phono Input: 20Hz - 20kHz, -0.5dB, +0.3dB

TOTAL HARMONIC DISTORTION (THD)

  • <0.03%

POWER OUTPUT

  • 50W/Ch (All channels driven, 8Ω)

BTU RATING (4Ω, 1/8th power)

  • 450 BTU/h

NET WEIGHT

  • 6.6 kg

STANDBY POWER CONSUMPTION

  • <0.5W

POWER CONSUMPTION

  • 150W

POWER REQUIREMENTS

  • 230V, 50Hz

FRONT PANEL HEIGHT

  • 60 mm (2 3/8”)

DIMENSIONS

  • 430mm Width
  • 347mm Depth
  • 73mm Height
