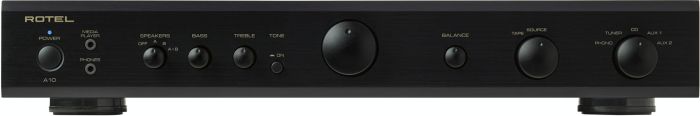

ROTEL A10 Integrated Amplifier

The A10 is based on the classic Rotel Class AB analog integrated amplifier, designed for music lovers everywhere.

$719.00 Regular Price $799.00

The A10 is based on the classic Rotel Class AB analog integrated amplifier, designed for music lovers everywhere. The architecture of the A10 is a perfect match for turntables, with an MM phono input being available on all Rotel amplifier models. This efficiently designed amplifier is all about performance – processing audio entirely in the analog domain to provide hours of listening enjoyment.

If you are considering taking your first step into a true hi-fi system or are seeking a small, high quality audio system for another living space, you can’t do better than the A10 integrated amplifier. The A10 is all about maximum performance for the price. Its design strips away added features that increase the overall cost and can detract from your musical enjoyment.

Simple to operate and a pleasure to listen to, the A10 has connectivity for all your listening sources including an analogue media input (3.5mm mini-jack) for iOS devices or other media players, a CD input, a MM phono input in case your taste runs to classic LPs, a Tuner input to listen to your favourite radio stations and two auxiliary inputs for other analogue source devices.

Features
Power
  • 2 × 40 Watts of robust power
Class AB
  • Class AB amplifier design
Transformer
  • High current power supply
Turntable
  • Moving magnet phono input for turntable connection
Specification

Engineered with Care

Dimensions

  • 430mm Width
  • 72mm Height
  • 342mm Depth

Front Panel Height

  • 60m

Power Requirements

  • 240V, 50Hz

Power Consumption

  • 220W

Net Weight

  • 5.9kg

BTU Rating (4 Ohm, 1/8th power)

  • 311 BTU/h

Continuous Power Output

  • 40W/Ch (All channels driven, 8 ohms)

Total Harmonic Distortion

  • (20Hz-20kHz) <0.03%

Frequency Response

  • Line Level Inputs: 10Hz - 40kHz ±1dB
  • Phono Input: 20Hz - 15kHz ±0.3dB

S/N Ratio (IHF "A" Weighted)

  • Line Level Inputs: 100dB
  • Phono Input: 80dB

Intermodulation Distortion (60Hz:7kHz, 4:1)

  • <0.03%

Damping Factor

  • 180

Speaker Impedance

  • 4 Ohm Minimum

Input Sensitivity

  • Line Level Inputs: 150mV
  • Phono Input (MM): 2.5mV

Input Impedance

  • Line Level Inputs: 24kΩ
  • Phono Input (MM): 47kΩ

Input Overload

  • Line Level Inputs: 5V
  • Phono Input: 180mV

Pre-Out Level

  • 1V

Output Impedance

  • 470 Ohm

Tone Controls

  • ±6dB at 100Hz / 10kHz
