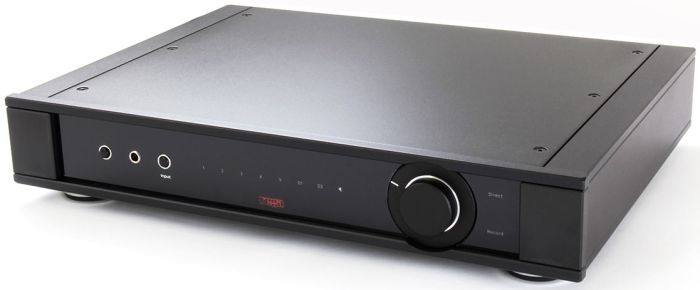

REGA Elicit MK5 Integrated Amplifier

The Elicit MK5 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wide range of connectivity options.

$4,299.00

As a part of our dealer agreement this product is unavailable for online sale.
  Please CONTACT US or Call Now for purchasing options.

The all new Elicit MK5 stereo integrated amplifier is designed and built to the highest standard. Housed in our latest custom case to match the rest of the Rega range, the new MK5 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 105 W per channel into 8 Ω loads (127 W into 6 Ω). Our engineers have designed a new Rega DAC circuit offering digital connectivity and greater integration with a variety of other products. We have taken great care to incorporate a high quality MM phono stage and the headphone input has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path.

The heart of your music

The new Elicit MK5 calls on decades of electronic design experience. It is a complex blend of three of our most successful products which promises to deliver big on sound, power, features and style. The Elicit MK5 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wide range of connectivity options. In addition to line, digital, and a high-quality moving magnet (MM) phono input, you will also find pre-out, Direct in, Record loop functionality and the high-performance headphone input.

The Elicit MK5 now shares other design features taken directly from the highly acclaimed Aethos amplifier. You will find the same discrete FET based pre-amplifier circuit, plus an Alps volume potentiometer has been introduced to further improve sonic and technical performance. As you would expect, special attention has been paid to the selection of key audio components. Discrete circuitry, high-quality relays, polypropylene capacitors, and Sanken output transistors are used throughout the design.

The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. The new Elicit MK5 calls upon decades of award-winning experience in amplifier and digital circuit design which culminates in a perfectly engineered balance of reliability, connectivity and above all, accurate music reproduction.

Features
  • 105 W per channel into 8 Ω
  • High quality moving magnet phono stage
  • 2 x Digital inputs - 1 x optical and 1 x Co-Axial
  • High performance Rega DAC circuit for digital inputs
  • 4 Line level inputs
  • Headphone output
  • Direct Input
  • Record input
  • New advanced pre-amplifier
  • Alps volume potentiometer
  • Thermal Cut-Out
Specification

AMPLIFIER OUTPUT

Power Amplifier Output

  • 105W per channel into 8Ω
  • 127W per channel into 6Ω
  • 162W per channel into 4Ω

Note: Continued high level use into loads of 6Ω or less may cause
the case to exceed 40°C above ambient temperature and activate
the thermal shut down.

Headphone Output

  • 11.5V No Load
  • 8.1V 300Ω
  • 3.6V 54Ω
  • 2.4V 32Ω
  • 109Ω Source Impedance

DISTORTION

THD+Noise (at 1dB below clip into 8Ω measurement bandwidth 22Hz to 22kHz)

Direct Input (Power Amplifier)

  • Typically 0.005% at 1kHz

Line Inputs

  • Typically 0.007% at 1kHz

Preamplifier Output

  • Typically 0.004% at 1kHz

FREQUENCY RESPONSE

Bandwidth (at 80W into 8Ω)

Direct Input

  • 12Hz (0.5dB) to 95kHz (-3dB)

Line Inputs

  • 10Hz (-1dB) to 85kHz (-3dB)

Phono Input

  • 15Hz (-3dB) to 85kHz (-3dB)

RIAA Accuracy

  • Better than ±0.5dB 100Hz to 20kHz

SENSITIVITY

Input Sensitivity (for 105W into 8Ω)

Line Inputs 2-5 and Record

  • 196mV load 10k

Phono

  • 2mV load 47k in parallel with 220pF

Direct Input

  • 760mV load 50k

Power Amplifier Gain

  • 31.6dB
Output Sensitivity (at rated inputs)

Record Output

  • 196mV

Pre-amplifier output

  • 760mV

DIGITAL INPUTS

Input D1

  • S/PDIF Isolated 0.5V 75Ω Co-axial

Input D2

  • S/PDIF Optical Toslink

Supported Sampling Rates

  • 32kHz
  • 44.1kHz
  • 48kHz
  • 88.2kHz
  • 96kHz
  • 176.4kHz
  • 192kHz

Supported Bit Depths

  • 16bit
  • 24bit

THD+Noise (DAC Output from Tape Out)

  • Typically 0.004% at 1kHz

DIMENSIONS AND WEIGHT

Dimensions

  • 432mm Width
  • 82mm Height
  • 340mm Depth

Net Weight

  • 12.5kg

Packed Weight

  • 14kg

POWER

Power Supply

  • AC Supply, 230V, 220V, 115V, 100V nominal ±10%

Power Consumption

  • 375W at 1dB below clip into 8Ω

Fuse Ratings

  • T4 AL 250V (230V 50Hz / 220V 60Hz)

Remote Batteries

  • AAA (1.5V) x 2
