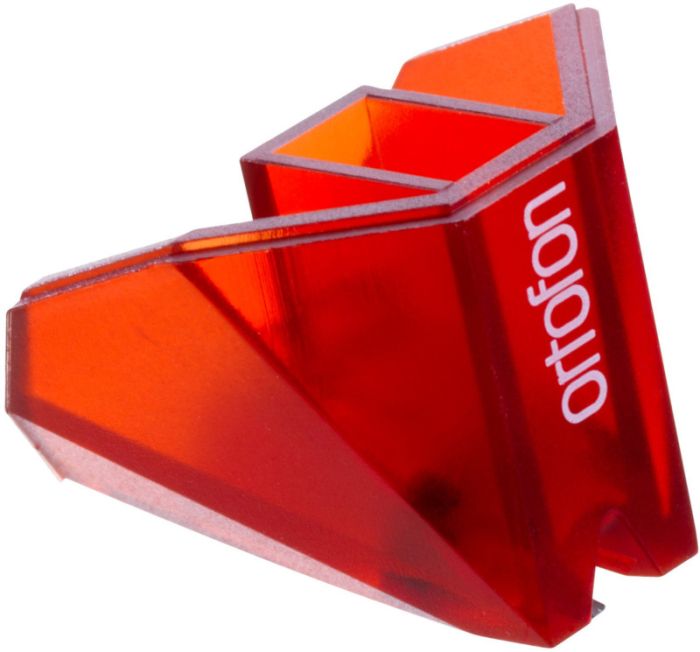

ORTOFON 2M Red Replacement Stylus

Replacement Eliptical Stylus for Ortofon 2M Cartridges

Special Price $113.00 Regular Price $125.00

Physically 2M styli will fit on alternative 2M cartridges bodies, but 2M Series cartridges’ engines, coils and magnets configurations are not quite identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78.

Specification

Frequency Range

  • 20Hz - 20,000Hz

Frequency Response

  • 20Hz - 20,000Hz +3/-1dB

Tracking Ability at 315Hz at recommended tracking force

  • 70 µm

Compliance, dynamic, lateral

  • 20 µm/mN

Stylus Type

  • Elliptical

Stylus Tip Radius

  • r/R 8/18 µm

Equivalent Stylus Tip Mass

  • 0.5 mg

Tracking Forcce Range

  • 1.6-2.0 g (16-20 mN)

Tracking Forcee Recommended

  • 1.8 g (18 mN)

Tracking Angle

  • 20°
