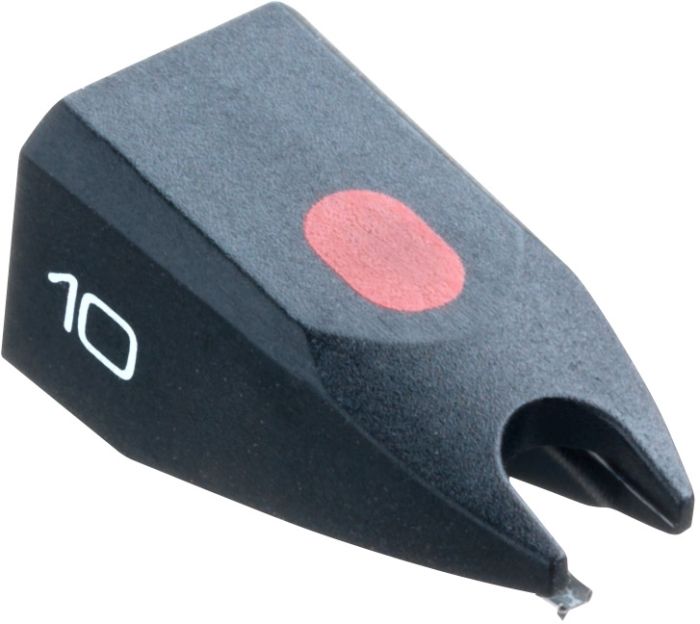

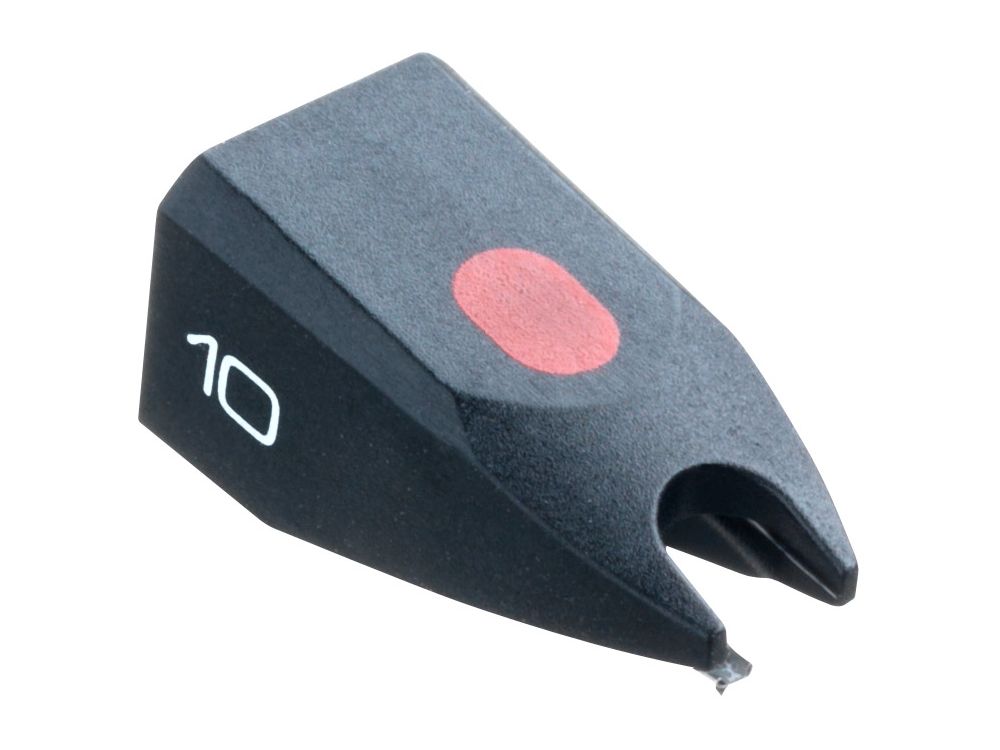

ORTOFON OM10 replacement Stylus

Frequency Range

• 20-24,000 Hz

Frequency Response

• 20-20,000 Hz +3/-1dB

Tracking ability at 315Hz at recommended tracking force

• 70 µm

Compliance, Dynamic, Lateral

• 25 µm/mN

Stylus Type

• Elliptical

Stylus Tip Radius

• r/R 8/18 µm

Tracking Force Range

• 1.25-1.75 g (12.5-17.5 mN)

Tracking Force (Recommended)

• 1.5 g (15 mN)

Tracking Angle

• 20°

Stylus Colour

• Black

Recommended for the following cartridges

• Super OM10
• OM10
• OMP-Mount 10
• OMBulk 10
• OMT 10
• LM 10
• Concorde 10
• Concorde EC 10
• TM 10H
• LMB 12
• SMB 12
• LMA 12
• Concorde STD
• Dual ULM 65E
• Dual ULM 66E
