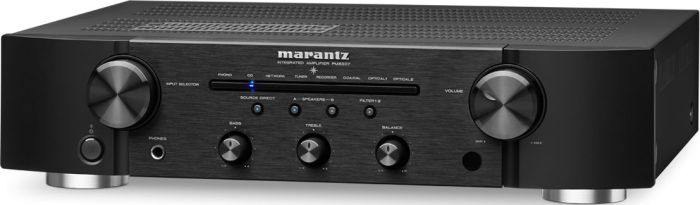

MARANTZ PM6007 Integrated Amplifier

Marantz PM6007 Integrated Amplifier offers the most musical sound from your analogue and digital sources, including built-in phono MM pre-amp.

$1,100.00

Your next step into Marantz HiFi

Featuring an upgraded, high-quality DAC, digital inputs and a newly revamped built-in phono equalizer, the Marantz PM6007 integrated amplifier features ample connectivity and creates a realistic listening experience for the most musical sound.

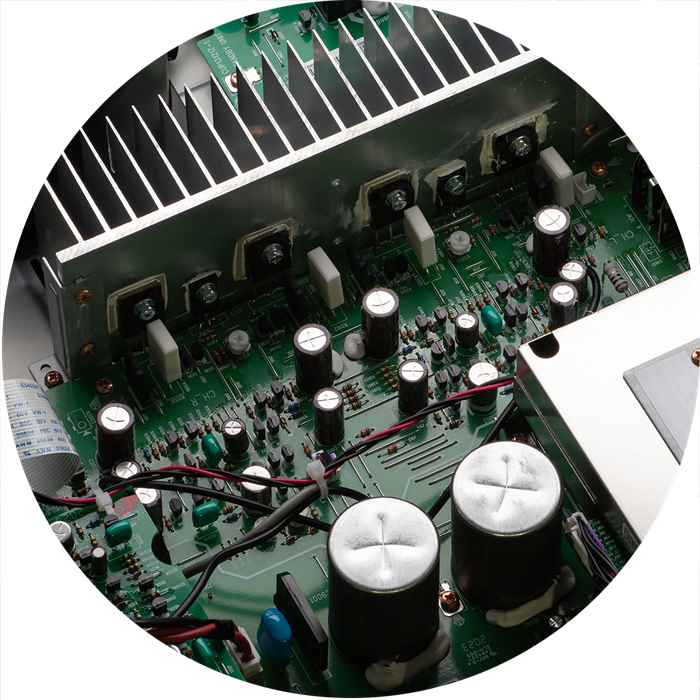

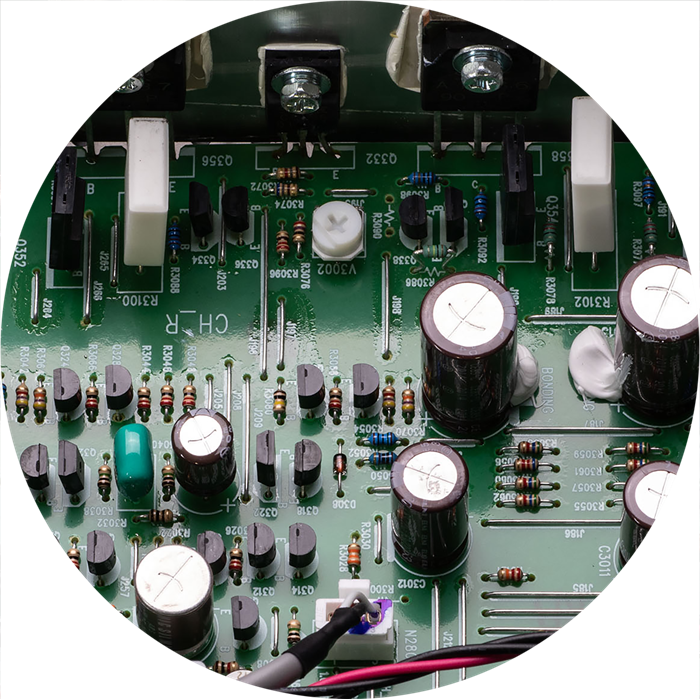

Current Feedback Amplifier

The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007's amplifier holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.

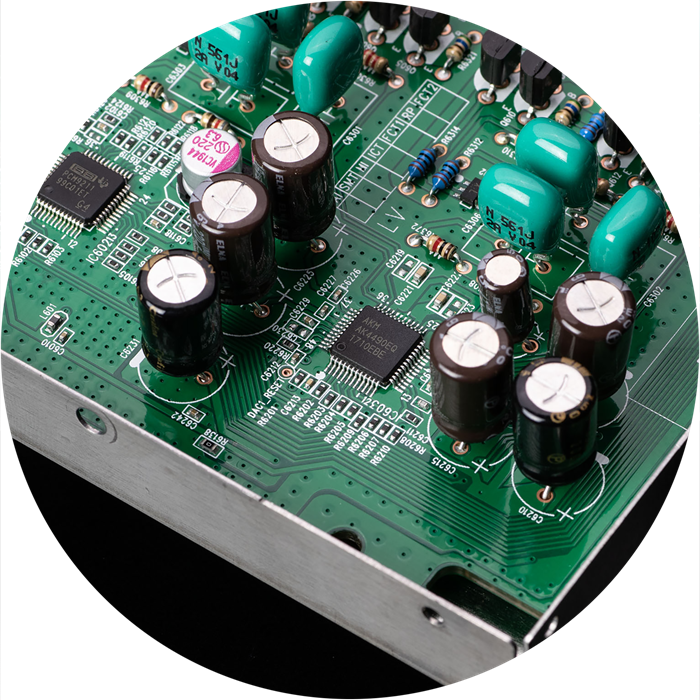

Reference Quality D/A Conversion For Digital Input

The PM6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res audio file types.

High Current Power Supply

The power supply supports high current, high speed Shottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provide wide dynamic range and low impedance drive capability.

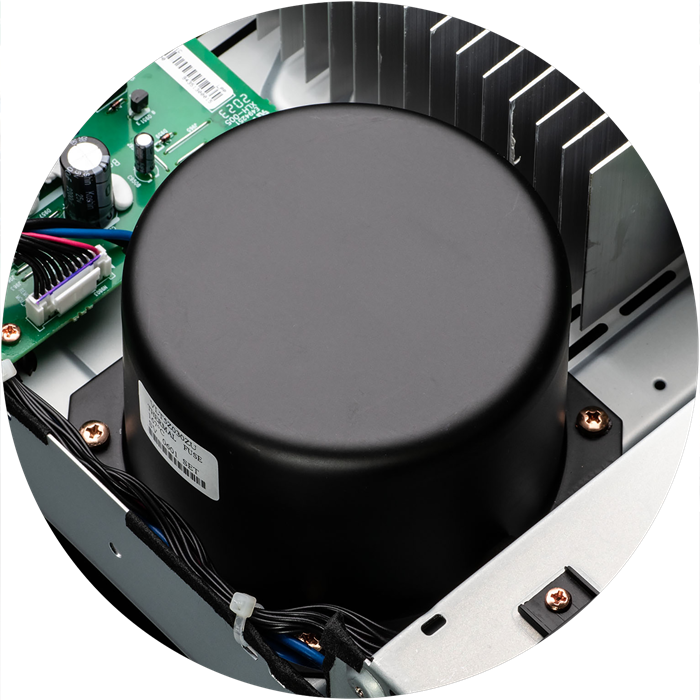

Toroidal Transformer

A Toroidal Transformer has several advantages over a normal EI core transformer. The highly efficient design delivers more power compared to the same size EI core transformer. In addition, the shape of the Toroidal Transformer delivers low electromagnetic radiation and mechanical vibration for better sound quality.

Features
  • Take your next step in Hi-Fi:The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz) to offer a refined audio experience.

  • Meticulously and masterfully tuned:During the extensive tuning process, Marantz sound masters carefully refine and curate each component for optimal performance.

  • Wide range of connectivity:Experience Hi-Res audio files exactly as intended through the following gold-plated inputs: 5 analog inputs, one coaxial input and two optical digital inputs.

  • An updated audio experience:The newly updated, high-quality DAC AK4490 offers a cleaner sound for your enjoyment.

  • Digital filter modes for Optical/Coaxial input:Listen to a more refined audio experience to fit your taste with the new digital filter mode feature.

  • Built to perform:In addition to high-quality speaker terminals with A/B switching capability, a fully-shielded DAC unit, and copper screws, the rigid feet provide a true-to-performance sound.

  • Marantz proprietary HDAM-SA3 circuit: You will experience a wider dynamic range with lower distortion for the output stage.

  • Advanced Thermal Compensation: No memory distortion for clean and precise audio reproduction even after powerful bass attacks.

  • Customized components for a more refined sound: The Toroidal Transformer and high-quality, customized components deliver exceptional sound quality.

  • Integrated phono input:Featuring a high-quality MM phono pre-amp with FET input to enjoy best signal purity and sound from your favorite vinyl.

  • Enjoy deeper bass with a subwoofer output: Enjoy powerful bass by adding a subwoofer, companion bookshelf speakers or even further extend bass with the addition of floor standing speakers.
Specification

Features

  • Current Feedback Topology
  • MM Phono Pre-amp
  • Optical and Coaxial Digital Inputs
  • Digital support up to 24bit, 192kHz
  • AK4490 DAC Chip
  • HDAM SA2 and SA3
  • Toroidal Power Transformer
  • High Grade Audio Components
  • Customised Components
  • Aluminium Extrusion Heat Sink
  • Balance, Bass, and Treble Controls

Others

  • Marantz Musical Digital Filtering
  • Linear Drive Power Supply
  • Ninear Volume Control
  • Schottky Diodes
  • Source Direct

Inputs / Outputs

  • 5 Analogue RCA Inputs
  • 2 Digital Optical 'Toslink' Inputs
  • 1 Digital Coaxial RCA input
  • MM Phono Input
  • Stereo Record Out RCA
  • Subwoofer Pre-Out -NEW-

Specifications

  • Power Output:
    • 45W (8 Ohm)
    • 60W (4 Ohm)
  • 10Hz - 70kHz Frequency Response
  • 0.08% THD
  • Damping Factor: 100
  • Input Sensitivity:
    • 2.2mV/47kOhm MM
    • 200mV/20kOhm Line Level
  • Signal to Noise Ratio:
    • 83dB MM
    • 102dB Line Level, 2V

General

  • Available in Black and Silver Gold
  • Metal Front Panel
  • Power Consumption:
    • 155W PEAK
    • 0.3W Standby
  • Auto Power Off
  • Detachable Power Cable
  • RC004MCD Remote Control
  • System Remote Function
  • Dimensions:
    • 440mm Width
    • 370mm Depth
    • 105mm Height
    • 7.8kg
