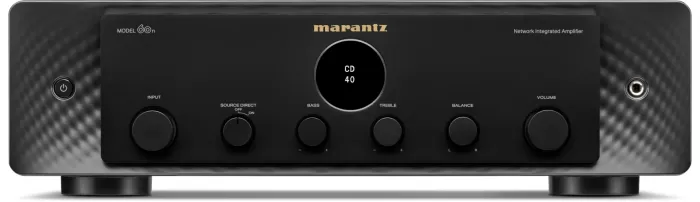

MARANTZ Model 60n Streaming Amplifier

Network Integrated Amplifier with 60W per channel and HEOS Built-In

$2,500.00

MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity. Stream in high-resolution via HEOSĀ® Built-in, connect your CD player or turntable and complete your hi-fi system with the speakers of your choice, or an optional subwoofer.

MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity.The perfect blend of performance and connectivity

Believe in Quality

Superb Marantz Sound

Sound Master tuned and engineered to bring you all the texture, nuance, and clarity of the Marantz signature sound.

High Resolution Streaming

Stream in high-resoultion from todayā€™s most popular music services, including TIDAL, with HEOSĀ® Built-in.

Build Your Hi-Fi System

Wide range of connections, including for a CD player and turntable, enable you to build a comprehensive hi-fi system.

Enhanced TV Sound

Enjoy superior TV sound for your favorite movies and shows and enhance your gaming experience with MODEL 60nā€™s HDMI ARC connection.

Marantz Industrial Design

Intuitive operation, designed with robust yet refined materials and available in two colorways: black and silver-gold.
Features
  • 60W per channel at 8 ohms connection
  • Effortless streaming with HEOSĀ® Built-in, WiFi,
  • HDMI ARC with CEC support superior TV and gaming sound
  • Marantz proprietary HDAMĀ® circuits for detailed audio reproduction
  • Hi-Res audio support up to 24-bit 192kHz and Roon-Ready
  • Four gold-plated RCA Inputs, including MM Phono
  • 2.1 channel Pre-Out output, Marantz custom speaker terminals
  • Rear USB-A input for USB Mass Storage device
  • Amazon Alexa, Apple Siri voice control
  • Marantz industrial design
Specification
Amplifier
Channels
  • 2
PSU Transformer
  • Toroidal
Speaker Terminals
  • 2x Marantz SPKT-1+
Power Output
  • 60W+60W (8 Ohms, 20Hz-20kHz)
  • 80W+80W (4 Ohms, 20Hz-20kHz)
Topology
  • Single Push-Pull Class A/B
Audio Components and Technologies
  • Current Feedback Topology
  • HDAM SA2 and SA3
  • High Grade Audio Components
  • Customised Components
  • Symmetric PCB Layout
  • Linear Drive Power Supply
  • Shottky Diodes
  • Marantz D-Bus Control
Pre-Amplifier
Phono EQ
  • Moving Magnet, Standard
Audio Adjustments
  • Bass (Ā± 10 dB at 50Hz)
  • Treble (Ā± 10 dB at 10kHz)
  • Source Direct
Analogue Audio Inputs
  • 4x Analogue RCA
  • 1x MM Phono
Digital Audio Inputs
  • 1x Coaxial
  • 1x Optical
  • 1x HDMI (ARC)
  • 1x USB-A (Mass storage, accessible via HEOS app)
  • Bluetooth
  • HEOS
Pre-Out
  • Subwoofer RCA
  • 2ch RCA
Subwoofer Out
  • 1x RCA
Headphone Out
  • 1x 6.35mm (1/4") on front panel
DAC
Digital Inputs
  • 1x Coaxial
  • 1x Optical
  • 1x HDMI ARC
  • Bluetooth
Max PCM Sample Rate
  • 24bit, 192kHz
Max DSD Sample Rate
  • DSD 4X (11.2MHz)
HEOS
Streaming Technologies
  • Bluetooth
  • AirPlay 2
  • Roon Ready
  • Spotify Connect
  • Tidal Connect
Streaming Services
  • Tidal (Hi-Res)
  • Deezer (Hi-Res)
  • Amazon Music HD
  • Pandora
  • Internet Radio provided by TuneIn
  • iHeartRadio
  • SoundCloud
  • SiriusXM
  • AWA
  • Mood:Mix
  • QPlay
  • Sony Hi-Res

*Subject to local availability

HEOS Multiroom and Streaming
  • Yes
Format Support
  • MP3
  • WMA
  • AAC
  • DSD/DSF
  • FLAC
  • ALAC
  • WAV
  • AIFF
Gapless
  • Yes
HEOS App
  • iOS
  • Android
Network Connectivity
  • Ethernet RJ45
  • Wi-Fi
Specifications
Frequency Response
  • 5Hz - 100kHz
Total Harmonic Distortion
  • 0.02%
Damping Factor
  • 100<
Input Sensitivity
  • Phono: 2mV/47kOhm
  • RCA: 190mV/20kOhm
Signal to Noise Ratio
  • 87dB MM
  • 113dB (2V Input)
Tone Controls
  • Bass (Ā± 10 dB at 50Hz)
  • Treble (Ā± 10 dB at 10kHz)
Metal Front Panel
  • Yes
Power Consumption
  • 220W PEAK
  • 0.3W Standby
Auto Power Off
  • Yes
Detachable Power Cable
  • Yes
Remote Control
  • RC006PM
System Remote Function
  • Yes
Dimensions
  • 442mm Width
  • 431mm Depth
  • 129mm Height
Weight
  • 12.75kg
