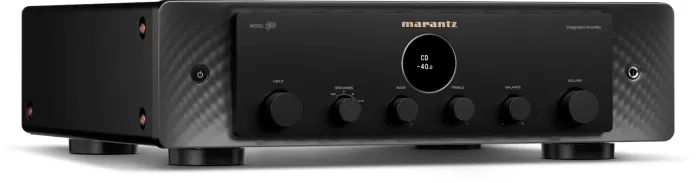

MARANTZ MODEL 50

Power your stereo with 70 watts of pure, high-current Class A/B power for equal parts authority and grace.

$3,200.00

PREMIUM INTEGRATED STEREO AMPLIFIER WITH 70W AND CUSTOM HDAM

MODEL 50 is the ideal integrated amplifier. With 70 watts per channel of unique Marantz current- feedback power and HDAM-SA3 circuitry, this amplifier drives loudspeakers with total control.

Powerful Yet Precise

With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.

Analogue Purity and Simplicity

Analogue is paramount in the design of MODEL 50. The decision to exclude digital audio ensures completely intuitive operation and eliminates the risk of interference from complex digital circuitry.

Exquisite Style

We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of our past.

Features

Powerful And Precise Class A/B Amplifier

Even difficult to drive loudspeakers will sound effortless with the high- current, dual-device amplifier in MODEL 50.

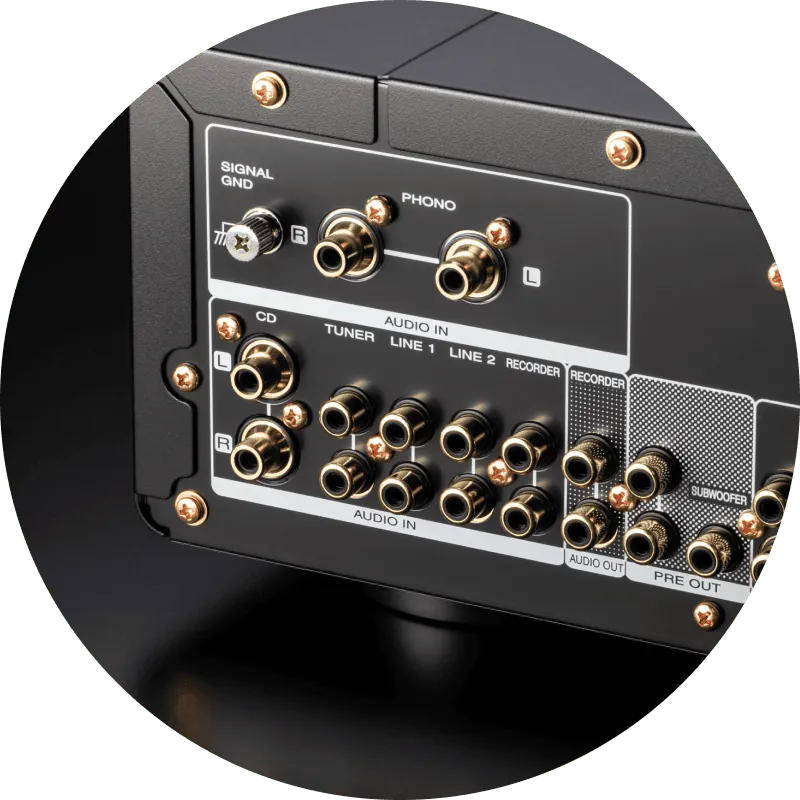

Six Analogue Inputs

With a collection of available analogue inputs, MODEL 50 can accept audio from myriad source components and includes upgraded connectors for CD and phono.

Moving Magnet Phono

The built-in MM phono stage works with your turntable to amplify the nuance and tone in your records. Using a new circuit without distortion-inducing coupling capacitors.

Stereo Preamp Out

MODEL 50’s stereo preamp outputs add valuable flexibility to your audio system setup. Connect a subwoofer, add channels to your home theater, or multiply listening zones—the possibilities are endless.

Specification
Features
Channels
2
Current Feedback Topology
Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium
- / o / -
Digital in: USB-B / optical / coaxial / USB-A
- / - / - / -
HDAM version
SA3, SA2
Power Transformer: Toroidal / El
Yes / -
High Grade Audio Components
Yes
Customised Components
Yes
Symmetric PCB Layout
Yes
Aluminium extrusion heat sink
Yes

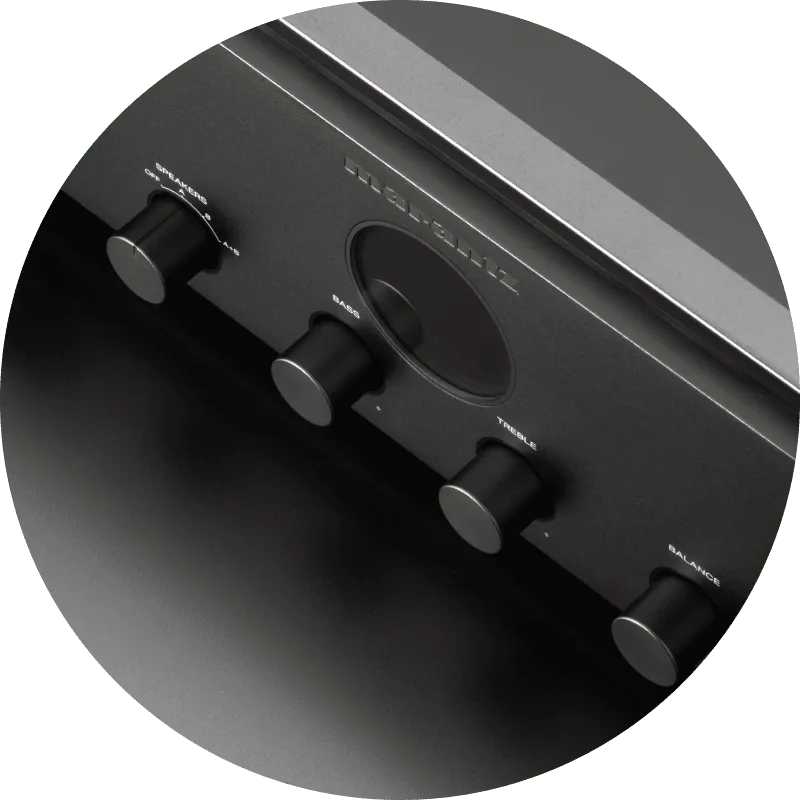

Balance / Bass / Treble / Loudness
Yes / Yes / Yes / -



Others

Linear Drive Power Supply
Yes
Liniear volume control
Yes
Schottky diodes
Yes
Input buffer amp (all inputs / CD only)
- / Yes
System block shielding: Copper / metal / none
- / - / Yes
Double Layer Bottom Plate
triple
Low noise OLED display
Yes
Source Direct
Yes
Power Amp direct
Yes



Inputs/Outputs

Audio Inputs
6
Digital in: USB-B / optical / coaxial / USB-A
- / - / - / -
Phono Input: MM / MC
Yes / -
Audio Outputs
1
Balanced In / Out
- / -
Pre-out / Main-in
Yes + subwoofer / -
Power Amp Direct IN
Yes
Gold Plated Cinch
Yes

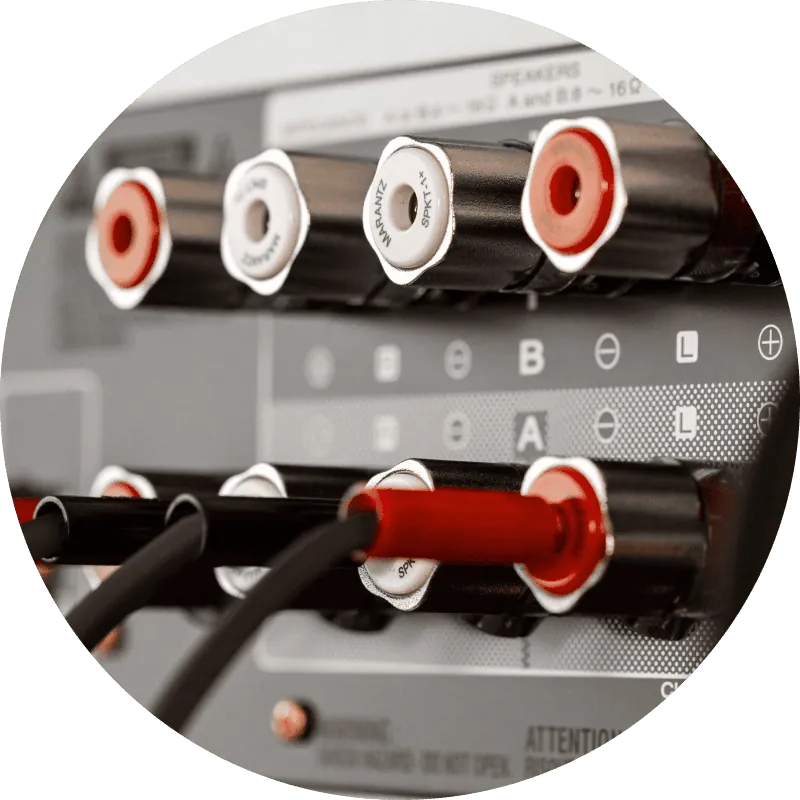

Speaker A / B
Yes
Speaker Terminals
Marantz SPKT-1+
Number of terminals
4
D-Bus
Yes
Headphone Out
Yes



Specifications

Power Output (8 / 4 Ohm RMS)
70 W / 100 W
Frequency Response
5 Hz–100 kHz
Total Harmonic Distortion
0.02 %
Damping Factor
100
Input Sensitivity: MM
1.4 mV / 47 kΩ
Signal to Noise Ratio: MM/MC
87 dB / -
Input Sensitivity: High level
185 mV / 16 kΩ
Signal to Noise Ratio: High level
116 dB (2 V input)
Input Sensitivity: Power Amp Direct IN
1.5 V / 15 kΩ
Signal to Noise Ratio: Power Amp Direct IN
125 dB
Treble Control
± 10 dB at 15 kHz
Bass Control
± 10 dB at 50 Hz



General

Available Colours
Black

Silver-Gold
Metal Front Panel
Yes
Power Consumption
220W PEAK

0.3W Standby
Auto Power Off
Yes
Detachable Power Cable
Yes
Remote Control
RC003PMND
System Remote Function
Yes
Dimensions
442mm Width

431mm Depth

130mm Height
Weight
14.2kg
