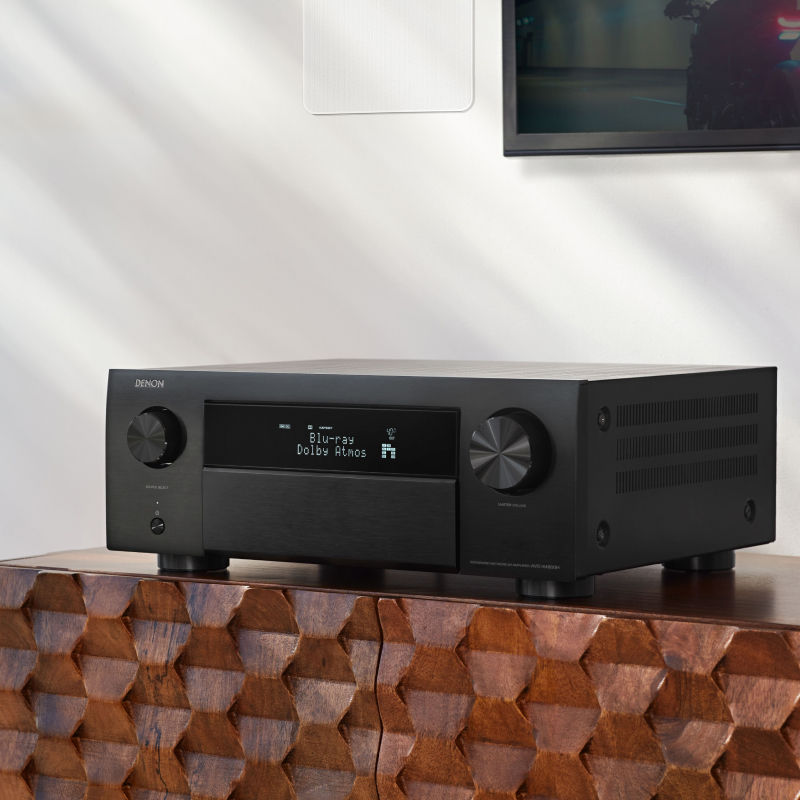

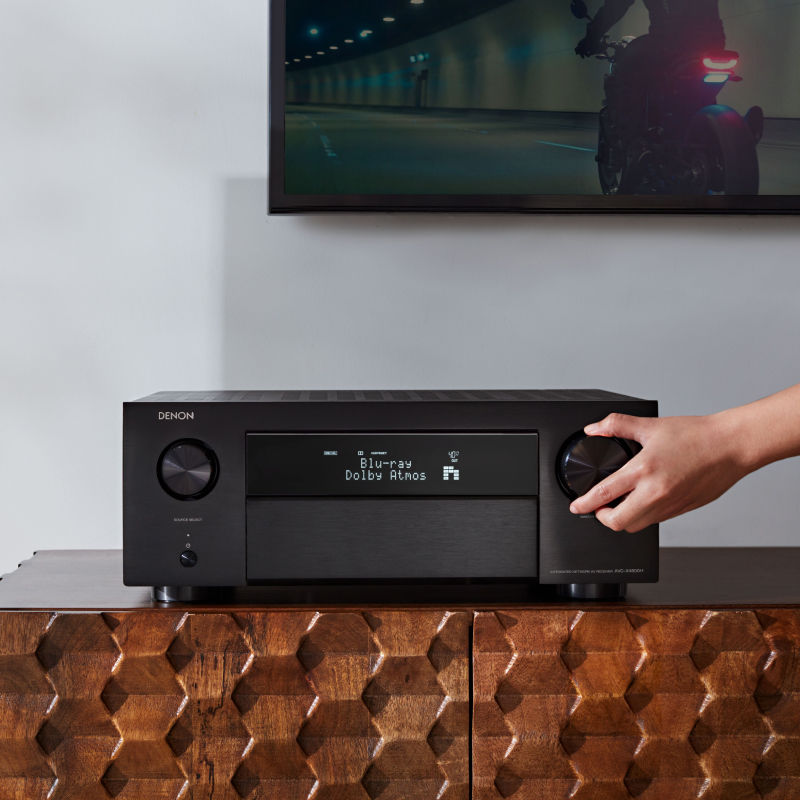

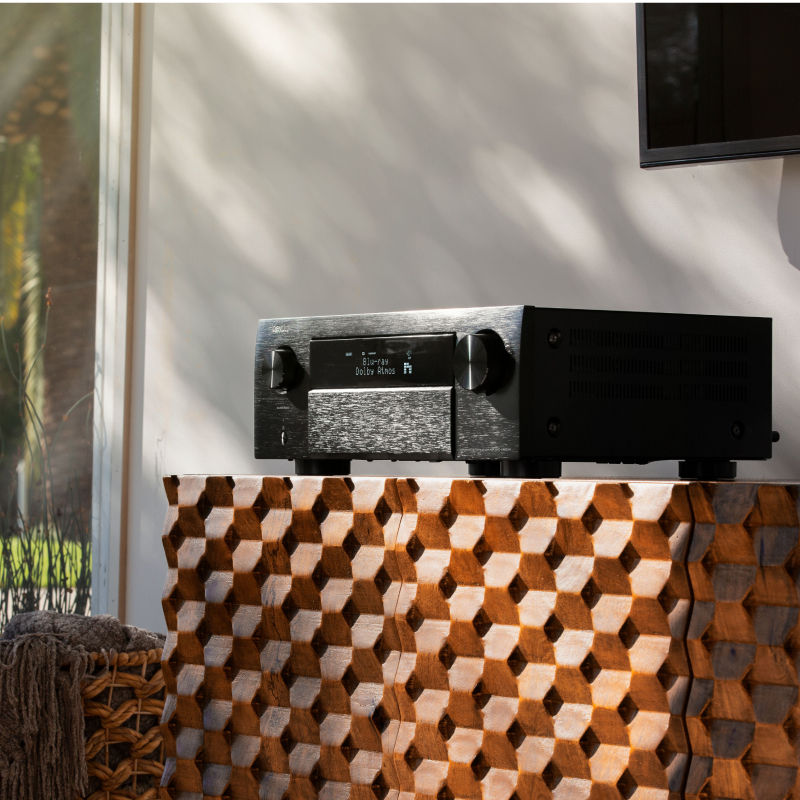

DENON AVCX4800H Home Theatre Amplifier

Enveloping 3D audio

Feel like you're in the centre of the action with enveloping 3D sound.

Expert ready

Take advantage of the wide variety of configuration options to best fit your space.

Denon craftsmanship

Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.

Optimize your room

Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional).

 Multichannel Surround

 DTS

• DTS HD Master

• DTS:X

• DTS Neural:X

• DTS Virtual:X

 Dolby

• Dolby TrueHD

• Dolby Atmos

• Dolby Atmos Height Virtualization

• Dolby Atmos Music

• Dolby Suround

 Other

• Auro 3D

• 360 Reality Audio

• MPEG H

• Multichannel Stereo

Maximum Number of Processing (pre-amp) Channels

•  11.4

 Sound Enhancements

 Enhancements

• Mono Block Power Amp Construction

• Discrete Power Amplifier

• D.D.S.C. HD Digital (32bit)

• Pure Direct

• Clock Jitter Reducer

• AL32 Multichannel Alpha Processing

• DIRAC Live Upgradability

• Compressed audio restorer

 Audyssey

• Multi EQ XT32 Room Correction

• Dynamic EQ

• Dynamic Volume

• Low Frequency Control

 Network

 Network Features

• Media Server

• RJ45 Ethernet

• Dual Band Wi-Fi

• Bluetooth

• Denon AVR Remote App for Smartphones

• HEOS App Control

Lossy Format Support

• MP3

• AAC

• WMA

Lossless Format Support

• FLAC (Gapless, 24bit, 192kHz)

• ALAC (Gapless, 24bit, 192kHz)

• WAV (Gapless, 24bit, 192kHz)

• DSD (Gapless, up to 5.6MHz Stereo)

Streaming Service Support

• Apple AirPlay 2

• Spotify Connect

• Tidal

• Deezer

• Qobuz

• Amazon Music

• iHeartRADIO

• SoundCloud

• Internet Radio provided by TuneIn

• Stream Audio from USB Flash Drive

• Roon Tested

Digital Assistant Support

• Amazon Alexa

• Apple Siri

• Google Assistant

HDMI

HDMI Feature Support

• HDCP 2.3

• HDMI 2.1 (8K 60Hz/4K 120Hz)

• HDR

• Auto Low Latency Mode (ALLM) Pass-Through for Gaming

• Variable Refresh Rate

• Quick Frame Transport

• 3D Signal Pass Through

• 8K Signal Pass Through

• 8K Scaling

• GUI Overlay on 8K

• DSD Audio over HDMI

• ARC and eARC (Audio Return Channel)

• Auto LipSync

HDR Support

• HDR10+

• HLG

• Dolby Vision

• Dynamic HDR

Inputs

• 7 Rear Inputs

• All inputs support 8K 60Hz

• All inputs support 4K 120Hz

Outputs

• 2 Main Zone Outputs

• 1 Second Zone Output

Multi-Room CI

Multi Romm Zones

• 3

Zone Source

• HDMI (2ch Audio)

• Optical/Coaxial (2ch Audio)

• Network Streaming/USB

• Analogue Inputs

Zone Output

• HDMI (2nd Zone Only)

• Pre-Out RCA (2nd and 3rd Zone)

• Speaker Outputs (assignable if channels aren't used by main zone)

Zone Control

• HEOS App

• IP Control

• RS232 Control

• Web Control

• Denon AVR Remote App Control

Other Control Features

• 3.5mm Remote In/Out

• 3.5mm 12V DC Trigger Output

• HDMI Diagnostic system

Others

Auto Speakers Setup by Microphone

• Audyssey MultEQ XT32

• DIRAC Live (upgrade)

Front Display

• 2 Line FLD

GUI

• Advanced Graphical User Interface

• 9 Languages

• Setup Assistant

• Quick Select Plus

Features

• Sleep Timer

• Auto Power Off

• ECO Mode

• Bass Sync

• Optimized Bass Redirection

• Variable Crossover

• Metal Front Panel

• Made in Japan

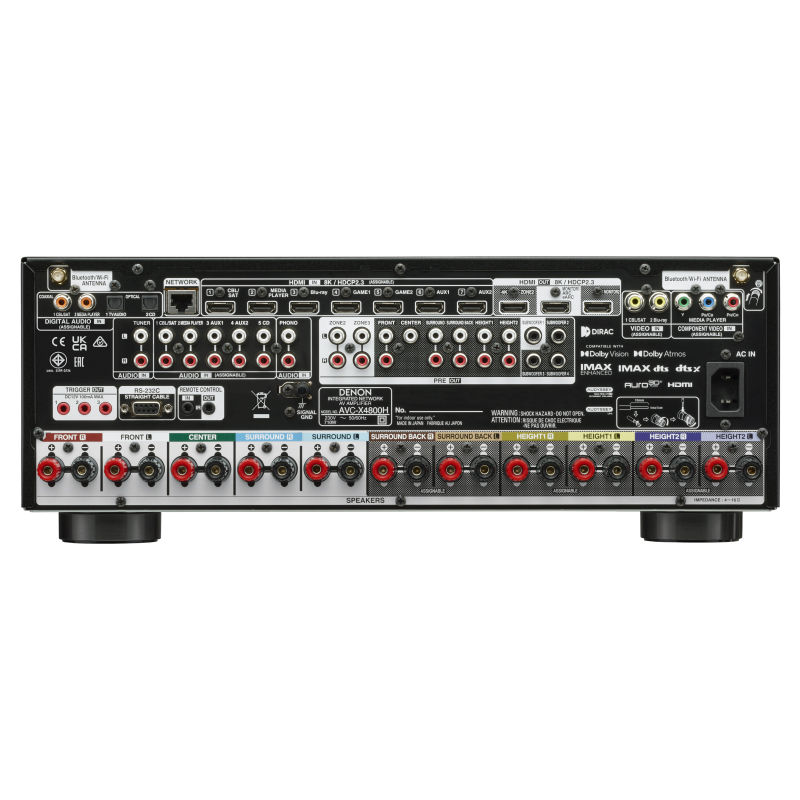

Inputs / Outputs

HDMI

• 7 Rear Inputs

• 2 Main Zone Outputs

• 1 Second Zone Output

Multi Room Connectivity

• HDMI Output (Zone 2)

• RCA Pre-Out (Z2+Z3)

• Speaker Output (Assignable if speaker channels aren't in use by main zone)

Analogue RCA

• 5 Stereo Inputs (assignable)

• 1 Phono MM Input

Digital Audio

• 2 Optical Inputs

• 2 Coaxial Inputs

Pre-Out

• RCA

• 11 Channels

• 4 Independant Subwoofer Outputs

• 2nd Zone

• 3rd Zone

Speaker Terminals

• 11 screw terminals (+/-) (9 channels amplification)

Assingable Speaker Output Functions

• Speakers A/B

• Height/Ceiling Channels

• Rear Surround

• Bi-Amp Drive

• Zone 2

• Zone 3

Front Terminals

• USB-A (Mass storage, accessible via HEOS App)

Specifications

Power Output

• 125W (8 Ohms, 20Hz-20kHz, 0.05% THD, 2ch Drive)

• 165W (6 Ohms, 1kHz, 0.7% THD, 2ch Drive)

• 200W (6 Ohms, 1kHz, 1% THD, 1ch Drive)

Amplification Channels

• 9 Discrete Amplifiers

General

System Remote Control

• RC-1252

Power Consumption

• 710W PEAK

• 110W Idle (ECO Off)

• 65W (ECO On)

• 0.1W Standby

• 0.5W CEC Standby

• <2.0W Network Standby

Dimensions

• 434mm Width

• 389mm Depth

• 167mm Height (236mm With antennas up)

Weight

• 13.4kg
