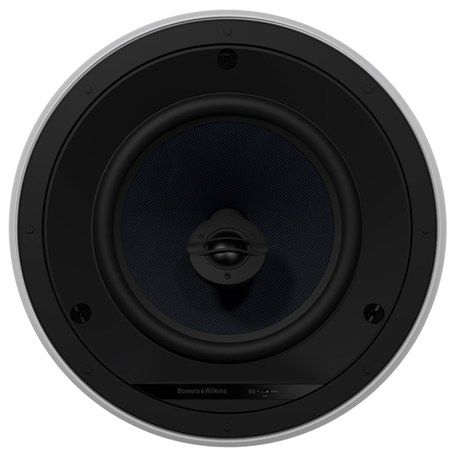

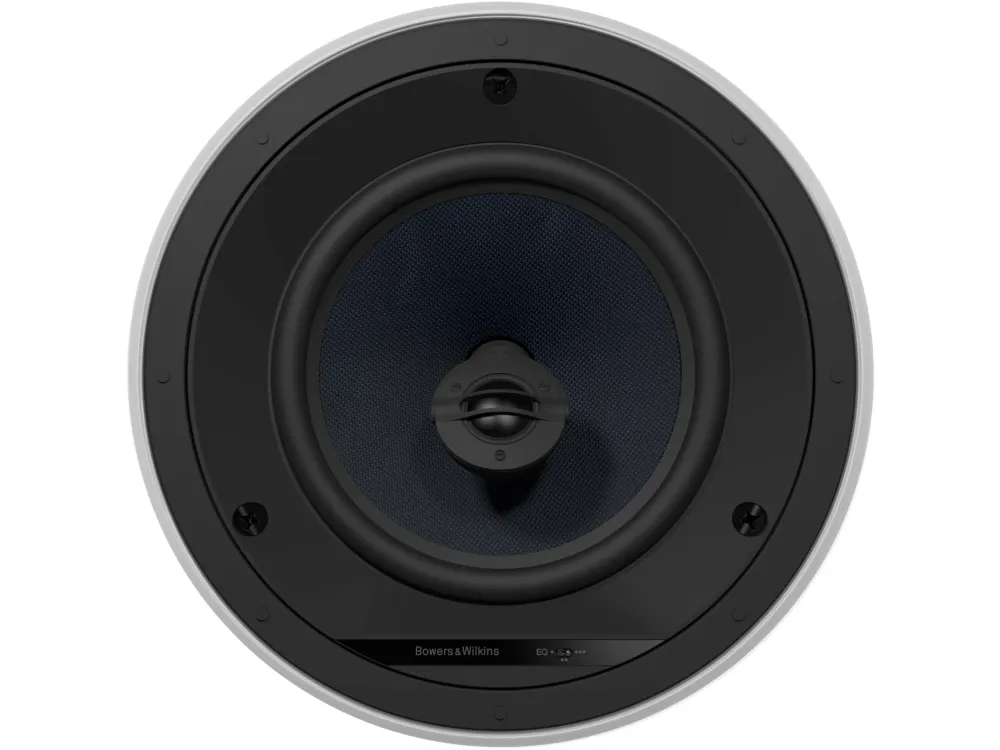

Bowers & Wilkins CCM682 Ceiling Speakers

Performance two-way in-ceiling speaker

The CCM682 is a high-performance ceiling-mount speaker that features a 200mm (8in) Aramid Fibre cone bass/midrange driver and an aluminium dome tweeter in a neat circular die-cast chassis. Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality.

$1,699.00

Warranty Period : 5 years

Sold as : One Pair

Warranty Period : 5 years

Sold as : One Pair

See nothing, hear everything

The CCM682 is a high performance ceiling-mount speaker that features a 200mm (8in) Aramid Fibre cone bass/midrange driver and an aluminium dome tweeter in a neat circular die-cast chassis. Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality. The aluminium tweeter’s housing pivots for adjustable off-axis treble response. The speaker also has a three-position EQ switch for a better off-axis response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Specification
GENERAL SPECIFICATIONS
Product Type
  • In-Ceiling Speaker
System Type
  • 2-Way In-Ceiling System
Frequency Range
  • 35Hz - 50kHz (-6dB)
Sensitivity
  • 89dB SPL (2.83V, 1m)
Impedance
  • 8Ω (Nominal)
  • 4.5Ω (Minimum)
Tweeter Adjustment
  • Pivoting Housing for Off-Axis Adjustment
Equalisation
  • 3-Position EQ Switch
Chassis
  • Die-Cast
Mounting System
  • QuickDogs™
Finish
  • White
DRIVERS
Tweeter
  • 1 x 25mm Nautilus™ Swirl-Loaded Aluminium Dome Tweeter
Bass/Midrange Driver
  • 1 x 200mm Aramid Fibre Cone Bass/Midrange Driver
    • 30mm Voice Coil
    • 100mm Magnet
INSTALLATION SPECIFICATIONS
Frame Diameter
  • 290mm
Cut-Out Diameter
  • 250mm
Depth Behind Surface
  • 133mm
Protrusion
  • 4mm
Pre-Mount Kit
  • C8
Back Box
  • 6C
