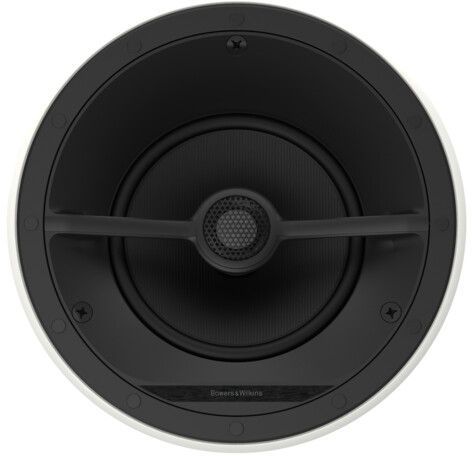

BOWERS & WILKINS (B&W) CCM7.5 S2 Ceiling Speaker EACH

A 2-way in-ceiling model with superb sound quality

$1,099.00

Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, centre, right and rear-channel rear speakers in a discreet home cinema system. Its configuration includes a 25mm (1in) Carbon Dome tweeter and a 180mm (7in) Continuum cone mid/bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, dialogue is crystal clear and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogsTM fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.

Features
  • Carbon Dome Tweeter
  • Continuum Mid/Bass
Specification

Description

  • 2 Way In Ceiling System

Drive Units

  • 1x 25mm (1 inch) Carbon Dome Tweeter
  • 1x 180mm (7 inch) Continuum Cone Mid/Bass

Frequency Range (-6dB)

  • 25Hz - 33kHz

Frequency Response

  • 32Hz - 28kHz +/-3dB

Sensitivity

  • 90dB spl (2.83Vrms, 1M)

Harmonic Distortion

  • 2nd and 3rd harmonice (90dB, 1M)
    <1% 70Hz-33kHz
    <0.5% 100Hz-28kHz

Nominal Impedance

  • 8 Ohms
  • Minimum 4.8 Ohms

Recommended Amplifier Power

  • 25W - 150W into 8 Ohms on unclipped programme

Frame Diameter

  • 290mm

Depth (Behind Surface)

  • 128mm

Cut-Out Diameter

  • 254mm

Protrusion

  • 8.5mm

Back Box

  • BB 6C

Square Grille Option

  • GR68SQ

Net Weight

  • 3.1kg

Finishes

  • White Grille
