Blustream SP14AB-V2 4 Way HDMI Splitter
4-Way 4K HDMI 2.0 HDCP 2.2 Splitter with Audio Breakout and EDID Management
$419.00
4-Way 4K HDMI Splitter
The SP14AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneous outputs.
The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
- Features 1 x HDMI input that is replicated to 4 x HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Advanced EDID management
- HDCP 2.2 support
Specification| GENERAL SPECIFICATIONS | | Product Type | | | DIGITAL INPUTS | | HDMI Input | | | HDMI Version | | | HDCP Version | | | VIDEO SPECIFICATIONS | | Video Resolution Support | - VGA to WUXGA
- 480i to 4K UHD
- Up to 4K 60Hz 4:4:4
| | HDR Support | | | EDID Management | | | AUDIO PROCESSING | | HDMI Audio Support | - Bitstream Pass-Through
- Multi-Channel Surround Audio
- Object-Based Audio Formats
| | Audio Breakout | - Simultaneous Coaxial Digital and Stereo Analogue Output

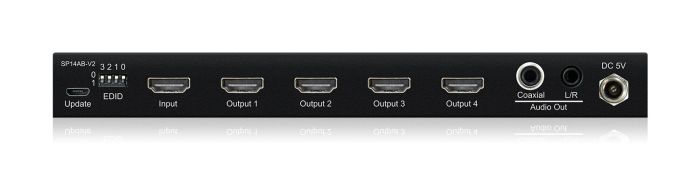

| | OUTPUTS | | HDMI Outputs | - 4 x HDMI Type A
- Simultaneous Output
| | Audio Outputs | - 1 x Coaxial Digital Output (RCA)
- 1 x 3.5mm Stereo Analogue Output
| | GENERAL SPECIFICATIONS | | Power Supply | | | Operating Temperature | | | Storage Temperature | | | Included Accessories | - 5V / 2A DC Power Supply
- Quick Reference Guide
| | DIMENSIONS AND WEIGHT | | Dimensions | - 203mm Width
- 84mm Depth
- 23mm Height (excluding feet)
|
|
