Blustream CAT100AU Digital Audio Over CAT

• Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable

• Both optical and coaxial digital can be distributed at the same time

• Built in DAC (Digital to Analogue Audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left / right audio output (source selected on receiver unit)

• Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution

• Ultra low jitter and high fidelity design

  *CAT100AU supports distances of up to: 192kHz - 100m, 96kHz - 150m, < 48kHz - 300m

Box Contents

1 x CAT100AU-TX
1 x CAT100AU-RX
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual

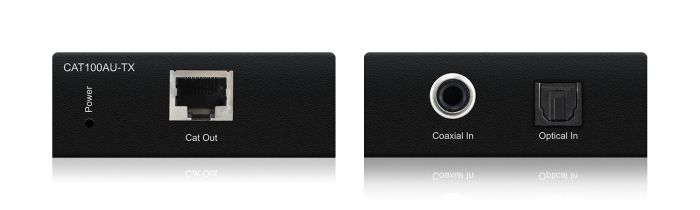

CAT100AU-TX:

• Audio Input Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)

• Connectors: 1 x RJ45

CAT100AU-RX:

• Input Connectors: 1 x RJ45 & 5V/1A DC

• Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analogue Left / Right - 3.5mm stereo audio jack

• Balun Dimensions (W x D x H): 65 x 80 x 25mm (with connections)

• Balun Dimensions (W x D x H): 65 x 70 x 25mm (without connections)

• Ind. Balun Weight: 0.13kg (excluding accessories)

• Carton / Box Dimensions (W x D x H): 210 x 125 x 95mm

• Shipping Weight: 0.6kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 5V/1A DC, barrel type connector

• Power supplied to the Transmitter unit from the Receiver
