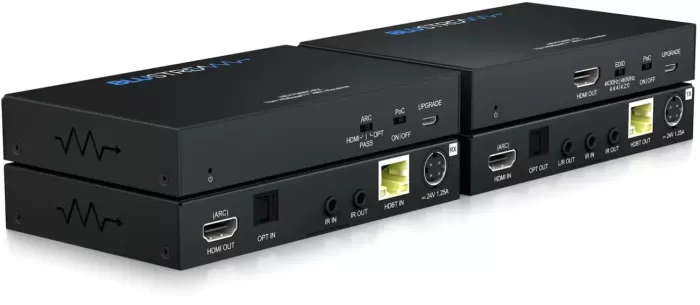

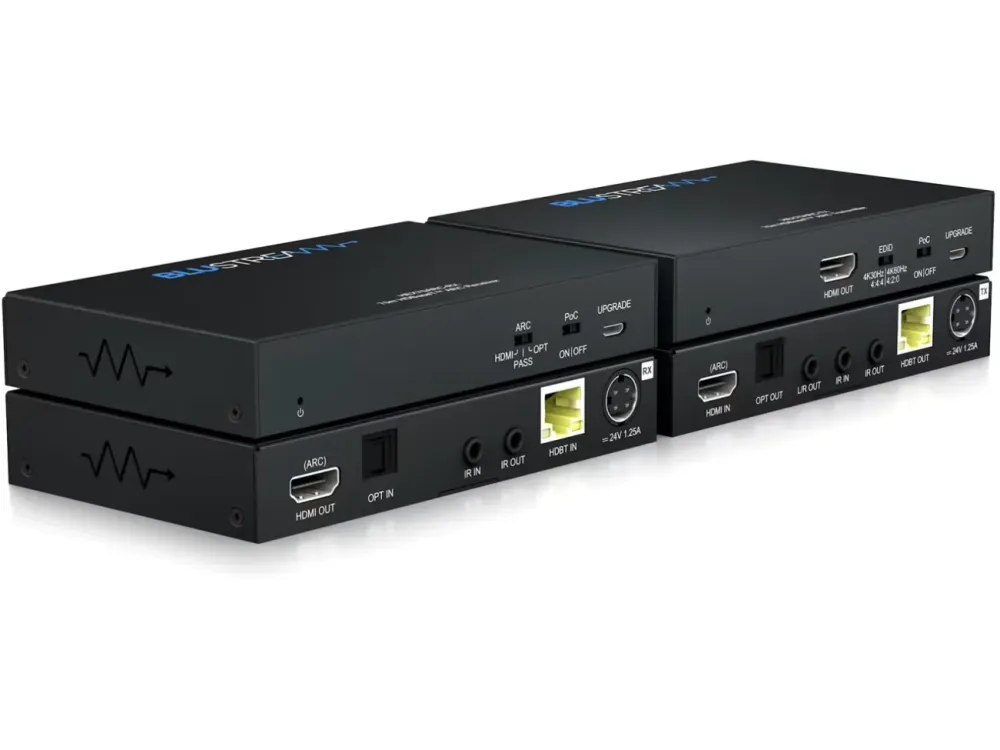

BLUSTREAM HEX70ARC-KIT HDMI Extender Set

HDBaseT™ ARC Extender Set - 70m



$799.00

The HEX70ARC-KIT 4K HDBaseT™ ARC extender set offers market leading features for the custom installation industry.

The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).

Features
  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input
  • Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
  • Bi-directional IR pass-through
  • Supplied with Blustream IR receiver and emitter
  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • HDCP 2.2 compliant with smart EDID management

    *Please note: Optical and L/R audio breakout on the HEX70ARC-TX are for audio return channel use only. HDMI source audio cannot be broken out from these connections.
Specification
HEX70ARC-TX
Video Input Connectors
  • 1 x HDMI Type A, female
 Video Output Connectors
  • 1 x HDBaseT™ RJ45 connector
  • 1 x HDMI Type A, female
Audio Output Ports
  • 1 x Optical (S/PDIF)
  • 1 x 3.5mm L/R analogue audio (audio return only)
IR Input Port
  • 1 x 3.5mm stereo jack
IR Output Port
  • 1 x  3.5mm mono jack
Product Upgrade
  • 1 x Micro-USB, female
Casing Dimensions
  • 135mm Width
  • 84mm Depth
  • 21mm Height
HEX70ARC-RX
Video Input Connectors
  • 1 x HDBaseT™ RJ45 connector
Video Output Connectors
  • 1 x HDMI Type A, female
Audio Input Port
  • 1 x Optical (S/PDIF)
IR Input Port
  • 1 x 3.5mm stereo jack
IR Output Port
  • 1 x 3.5mm mono jack
Product Upgrade
  • 1 x Micro-USB, female
Casing Dimensions
  • 135mm Width
  • 84mm Depth
  • 21mm Height
General
Power Supply
  • 1 x 24V/1.25A DC, 4-pin DIN connector
Box Dimensions
  • 248mm Width
  • 151mm Depth
  • 103mm Height
Shipping Weight
  • 1kg
Operating Temperature
  • -5°C to +55°C
Storage Temperature
  • -25°C to +70°C
