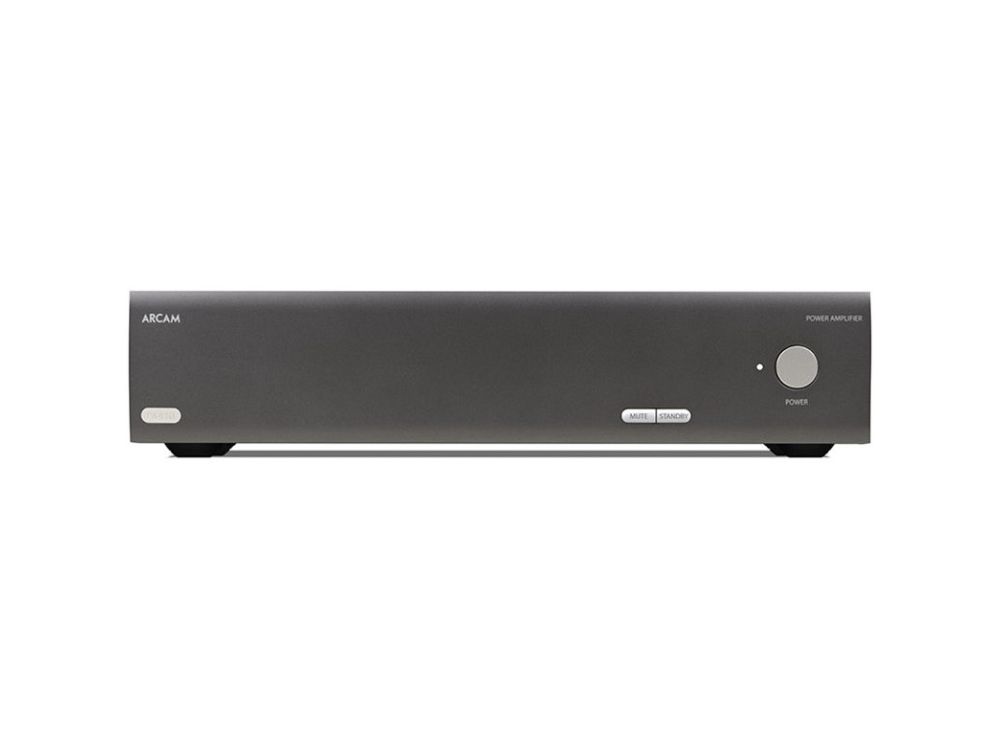

ARCAM PA410 4 Channel Power Amplifier

$3,995.00

Brand

Arcam

3 years
Free delivery across Sydney metro
See it in our Marrickville demo room

Arcam Authorised Arcam dealer

Fast Shipping

Australia Wide

3 years

Manufacturer's warranty

Family owned since 1969

Same store, same street, same owners.

See it before you buy

Demo room open 7 days a week.

DESCRIPTION

Exceptional Power, Immersive Sound

The PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA410 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

Features

Features
4 Channel Power Amplifier 4x 50W Class AB Amplification (8ohm, 20Hz-20kHz, 0.2% THD) Toroidal Transformer RS232

Specifications

Specification

Continuous Power Output at 0.2% THD Per Channel	50W, 8 Ohm, 4ch Drive, 20Hz-20kHz 70W, 4 Ohm, 4ch Drive, 20Hz-20kHz 60W, 8 Ohm, 2ch Drive, 20Hz-20kHz 90W, 4 Ohm, 2ch Drive, 20Hz-20kHz 0.003% THD at 80% Power, 8 Ohms, 1kHz
Inputs	Input sensitivity 50W / 8Ω - 600mV RMS Signal/Noise ratio (A-wtd) 50W / 8Ω - 105dB Input impedance - 10kΩ Frequency response - 20 - 20kHz +/-0.05dB
General	Mains Voltage: 110-120V, or 220-240V, 50Hz-60Hz Power Consumption 700W PEAK 90W Idle 0.5W Standby Dimensions 433mm Width 325mm Depth 105mm Height 10kg

GENERAL SPECIFICATIONS
Product Type	Power Amplifier
Amplifier Channels	4
Amplifier Class	Class AB
Amplifier Features	Toroidal Transformer Paralleled Transistor Output Stages Acoustically Damped Chassis
AMPLIFIER SPECIFICATIONS
Power Output	50W (4 channels driven, 20Hz - 20kHz, 8Ω, 0.2% THD) 70W (4 channels driven, 20Hz - 20kHz, 4Ω, 0.2% THD) 60W (2 channels driven, 20Hz - 20kHz, 8Ω, 0.2% THD) 90W (2 channels driven, 20Hz - 20kHz, 4Ω, 0.2% THD)
Harmonic Distortion	0.003% (80% power, 8Ω, 1kHz)
Speaker Load	4 - 16Ω
ANALOGUE INPUTS
Inputs	4 x RCA Unbalanced Inputs
Input Sensitivity	600mVrms (50W / 8Ω)
Input Impedance	10kΩ
Signal-to-Noise Ratio	105dB (A-weighted, 50W / 8Ω)
Frequency Response	20Hz - 20kHz ±0.05dB
OUTPUTS
Speaker Outputs	4 x Speaker Terminal Pairs
Line Outputs	4 x RCA Passive Pass-Through Outputs Copies Corresponding RCA Input Signal
CONNECTIVITY
Control Interfaces	RS232 12V Trigger Input 12V Trigger Output
USB Port	USB Service Port Software Upgrades Only
GENERAL SPECIFICATIONS
Power Requirements	110 - 120V AC or 220 - 240V AC 50 - 60Hz
Power Consumption	700W (Maximum) 90W (Idle, Typical) <0.5W (Standby)
Thermal Dissipation	Approximately 340 BTU/hour (Idle, Typical)
DIMENSIONS AND WEIGHT
Dimensions	433mm Width 325mm Depth 105mm Height
Weight	10kg
