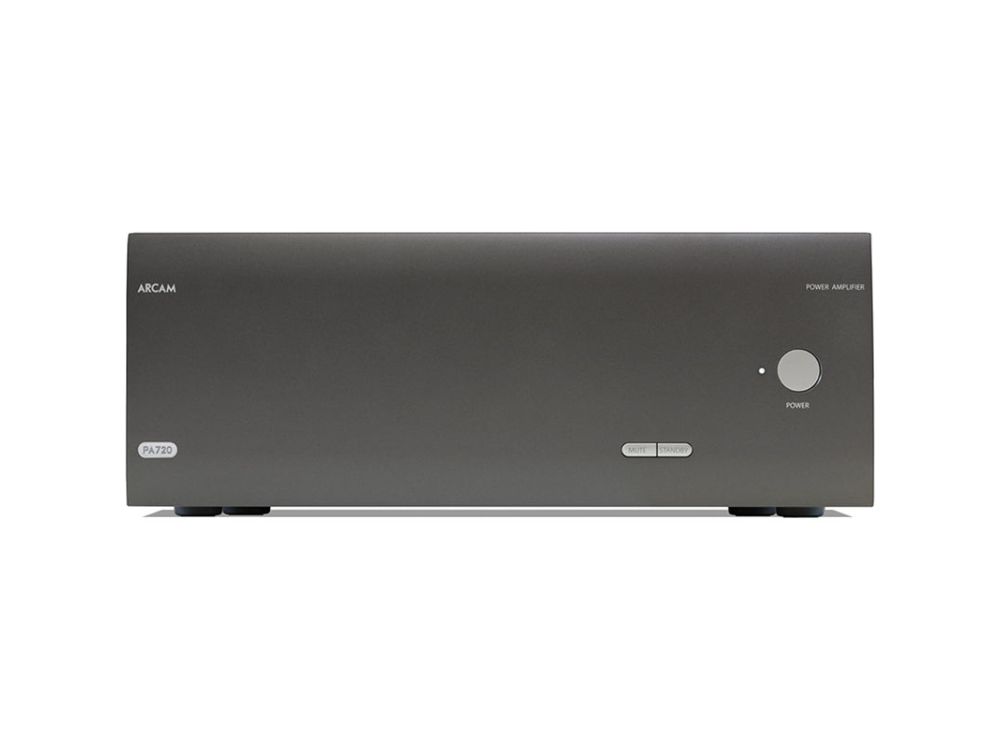

ARCAM PA720 7 Channel Class G Power Amplifier

The PA720 is a high-performance power amplifier that delivers 7 channels of efficient Class G amplification. With an impressive 140W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.

$6,995.00

Exceptional Power, Immersive Sound

The PA720 is a high-performance power amplifier that delivers 7 channels of efficient Class G amplification. With an impressive 140W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA720 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

Features
  • 7 Channel Power Amplifier
  • 7 x 100W Class G Amplification (8ohm, 20Hz-20kHz, 0.2% THD)
  • Class G Amplification with 20W of Class A Operation
  • Toroidal Transformer
  • Ethernet, RS232 Control
  • Switchable RCA or Balanced XLR Inputs
Specification

Continuous power output at 0.2% THD per channel

  • 100W, 8ohm, 7 Channel Drive, 20Hz-20kHz
  • 140W, 4ohm, 7 Channel Drive, 20Hz-20kHz
  • 110W, 8ohm, 5 Channel Drive, 1kHz
  • 175W, 4ohm, 5 Channel Drive, 1kHz
  • 140W, 8ohm, 2 Channel Drive, 1kHz
  • 225W, 4ohm, 2 Channel Drive, 1kHz
  • 0.002% THD, 8ohm, 1kHz, 80% Power

Inputs

  • Input Sensitivity:
    • 800mV RMS RCA
    • 1.6V RMS XLR
  • 105dB Signal to Noise Ratio (A-wtd), 50W / 8ohm
  • 20Hz-20kHz +/-0.05dB Frequency Response

General

  • 110-120V, or 220-240V, 50Hz-60Hz
  • Power Consumption:
    • 1500W PEAK
    • 90W Idle
    • <0.5W Standby
  • Dimensions:
    • 433mm Width
    • 425mm Depth
    • 177mm Height
    • 18kg
