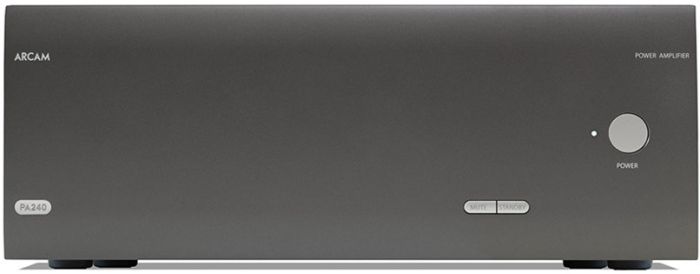

ARCAM PA240 2 Channel Class G Power Amplifier The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.
$5,995.00
Arcam Authorised Arcam dealer
Fast Shipping Australia Wide
3 years Manufacturer's warranty
Family owned since 1969 Same store, same street, same owners.
Expert advice Talk to our local team.
Exceptional Power, Immersive Sound The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control. Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
Features 2 Channel Power Amplifier 2x 225W Class G Amplification (8ohm, 20Hz-20kHz, 0.2% THD) 1x 790W Class G Bridged Mode (8ohm, 20Hz-20kHz, 0.2% THD) Class G Amplification with 50W of class A operation Toroidal transformer Stereo, Dual Mono, or Bridged operation Ethernet, RS232 control Switchable RCA or Balanced XLR Inputs
Specification Continuous power output at 0.2% THD per channel 225W, 8ohm, 2ch Drive, 20Hz-20kHz 380W, 4ohm, 2ch Drive, 20Hz-20kHz 790W 8ohm BRIDGED 1ch Drive, 20Hz-20kHz 0.001% THD 8ohm, 1kHz, 80% Power Inputs Input Sensitivity: (200W, 8ohm)1.15V RMS RCA 2.3V RMS XLR 110dB Signal to Noise Ratio (A-wtd), 50W / 8Ohm 10kOhm Input Impedance 20Hz - 20kHz =/-0.5dB Frequency Response General 110-120V, or 220-240V, 50-60Hz Power Consumption:1500W PEAK 90W Idle <0.5W Standby Dimensions:433mm Width 420mm Depth 177mm Height 18kg
GENERAL SPECIFICATIONS Product Type Amplifier Channels Amplifier Class Operating Modes Stereo Dual Mono Bridged Mono Amplifier Features Toroidal Transformer Paralleled Transistor Output Stages Acoustically Damped Chassis AMPLIFIER SPECIFICATIONS Power Output 225W (2 channels driven, 20Hz - 20kHz, 8Ω, 0.2% THD) 380W (2 channels driven, 20Hz - 20kHz, 4Ω, 0.2% THD) 790W (1 channel driven, Bridged Mono, 20Hz - 20kHz, 8Ω, 0.2% THD) Class A Operation Harmonic Distortion 0.001% (80% power, 8Ω, 1kHz) Speaker Load ANALOGUE INPUTS Inputs 2 x RCA Unbalanced Inputs 2 x XLR Balanced Inputs Input Selection Input Sensitivity 1.15Vrms (RCA, 200W / 8Ω) 2.3Vrms (XLR, 200W / 8Ω) Input Impedance Signal-to-Noise Ratio 110dB (A-weighted, 50W / 8Ω) Frequency Response OUTPUTS Speaker Outputs 2 x Speaker Terminal Pairs Line Outputs 2 x RCA Passive Pass-Through Outputs Copies RCA Input Signal Only CONNECTIVITY Control Interfaces Ethernet RS232 12V Trigger Input 12V Trigger Output USB Port GENERAL SPECIFICATIONS Power Requirements 110 - 120V AC or 220 - 240V AC 50 - 60Hz Power Consumption 1.5kW (Maximum) 90W (Idle, Typical) <0.5W (Standby) 2W (Network Standby) Thermal Dissipation Approximately 340 BTU/hour (Idle, Typical) DIMENSIONS AND WEIGHT Dimensions 433mm Width 425mm Depth 177mm Height Weight
