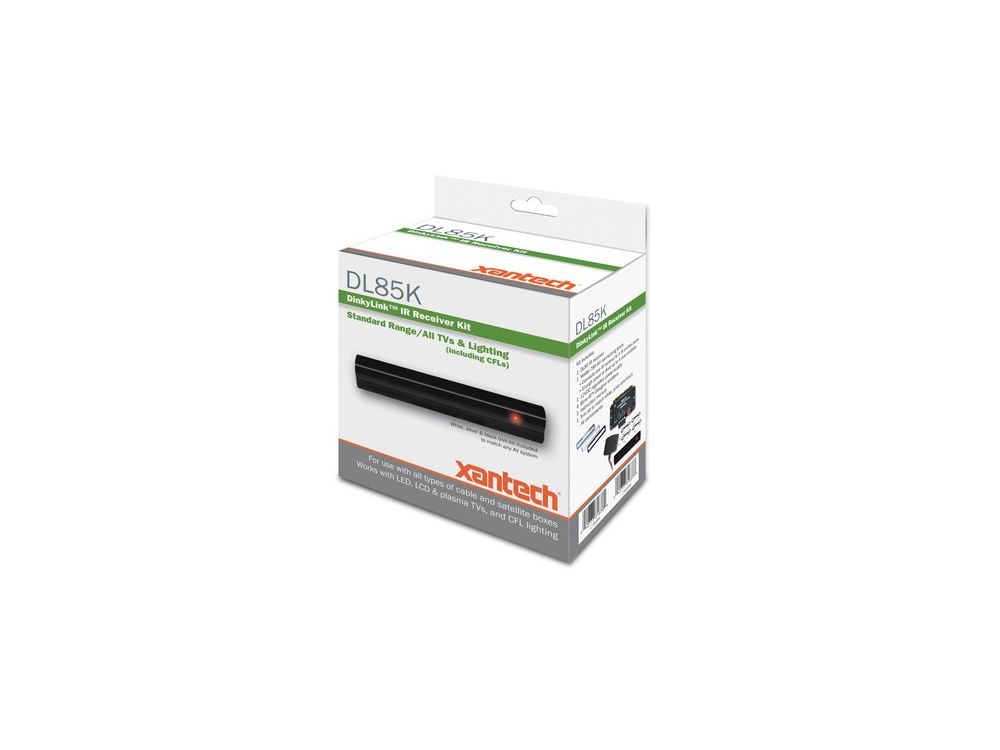

main product photo
-

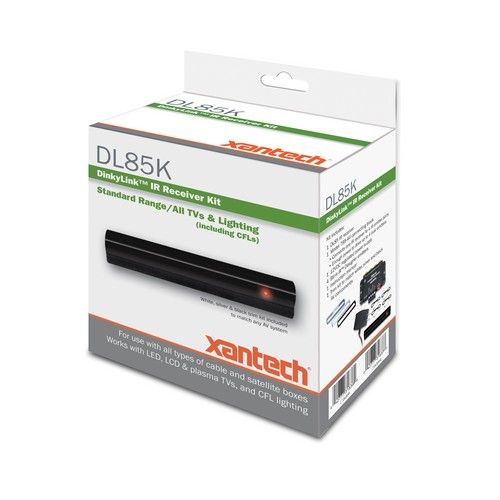

XANTECH DL85K IR Receiver Kit

The DL85K has a surface-mount design and a standard range (up to 24mt*). It works with LED, LCD & plasma TV’s and CFL lighting. For use with all types of cable boxes, satellite boxes, remote controls and TVs. A white, silver & black trim kit included to match any AV system.

$419.00
Add to Compare

Warranty Period : 1 year

Sold as: 1 Unit
Calculate Shipping Cost

The DL85K has a surface-mount design and a standard range (up to 24mt*). It works with LED, LCD & plasma TV’s and CFL lighting. For use with all types of cable boxes, satellite boxes, remote controls and TVs. A white, silver & black trim kit included to match any AV system.

Features
  • Works with all types of cable boxes, satellite boxes, remotes and TVs
  • Low profile - easy to hide
  • Proprietary ambient noise-suppression technology for reliable operation in any lighting environment including compact fluorescents
  • IR modulation frequency bandwidth: 25-60kHz
  • Reception range: up to 80 ft/24 m*
  • Color-coded connectors for fast, easy installation.

Kit includes:

  • One DL85 IR receiver
  • One Model 789-44 connecting block that connects one IR receiver to 4 IR emitter ports and has enough power to drive up to 4 dual emitters
  • One 12VDC regulated power supply
  • 4 Blink-IR™ Designer emitters
  • One Instruction manual
  • One Trim kit to match white, silver and black AV components

* Actual range depends on remote control output and ambient lighting condition

Specification

• Infrared carrier frequency bandwidth: 25 - 60 kHz.
• Reception range: Up to 80 feet.*
• Reception angle: +/- 60 degrees.
• Cable requirements: See “INSTALLATION” below.
• Max. Transmission length: 1 mile using 18 gauge wire.
• Maximum current output: 100mA.
• Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
• Dimensions: 2.55” x 0.55” x 0.35” (65mm x 14mm x 9mm).
• Power requirements: +12VDC, 10mA.
* Depending on remote control output strength and ambient conditions.
