Quite simply put, the Wharfedale Diamond is one of our most successful speaker series, if not one of the most successful hi-fi speaker series ever. We can justify this as year on year, the Diamond Series has broke the mould for combining award winning sound quality unforeseen at this price.
From 1982 Wharfedale Diamond has meant one thing – impeccable performance at an affordable price. Today we are pleased to bring you the latest series of loudspeakers from Wharfedale that aspires to this tradition – Diamond 200 Series.
Foremost in the design criteria for Diamond 200 is the ongoing research into loudspeaker driver sound quality. The speaker series uses our famous woven Kevlar cone form, drawing influence from the flagship Jade Series.

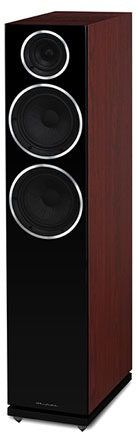

The Diamond 230 Floorstanding Speaker represent excellent value for money, delivering a full music spectrum from a compact 2-way floor speaker.
Only when the acousting tests are deemed truly satisfying are the loudspeakers designs signed-off for production, ensuring that each speaker model fulfils its eventual owner's dreams of musically enjoyable reproduction from Britain's Most Famous Loudspeakers.
The Diamond 200 boasts the latest in hi-fi technology to produce a throughly enjoyable listening experience. Semi-elliptical 'break-up' areas on the woven-kevlar woofer smooth the response through the audible range and the cone edges are treated with a unique diamond pattern moulding.
The treble unit uses a sheer fabric dome and advanced ferrite magnet system, surrounded by a carefully crafted wave guide that encourages outstanding midrange performance too.
Cabinet walls and internal bracing developed use Wharfedale's latest 'Virtual Speaer' software, with the help of Delayed Cumulative Spectral Analysis that ruthlessly reveal panel colouration in all its forms. Using this technique engineers updated the cabinet, combining layers of particle board and MDF, bonded in a unique structure to damp annoying High-Q resonances and block internal sound leakage. The effect is that the 'noise' from cabinet walls is buried more than 35dB below the driver output. The same computer modeling is also used to fine tune the crossover to guarantee an enjoyable experience, both on and off-axis.
Exiting the base of the speaker cabinet is a slot loaded distributed port created by the plinth. This equalises the air pressure to mimic that inside the cabinet allowing a smooth transition between the pressure variation in the cabinet and the low frequency sound developed in the room.
Aside from computer assisted modelling, and true to Gilbert Briggs' ethos behind his original Wharfedale loudspeaker designs, hours of listening tests by our engineers are carried out to fine tune each speaker in the series.
General description 2.5-way floorstanding speaker Enclosure type bass reflex Transducer complement 2.5-way Bass driver 165mm Woven Kevlar Cone Midrange driver 165mm Woven Kevlar Cone Treble driver 25mm Soft Dome AV shield No Sensitivity(2.83V @ 1m) 88dB Recommended amplifier power 25-150W Peak SPL 102dB Nominal impedance 8Ω Compatible Minimum impedance 3.7Ω Frequency response (+/-3dB) 40Hz - 20kHz Bass extension (-6dB) 37Hz Crossover frequency 2.3kHz Cabinet Volume (in litres) 35L Height (on plinth & spikes) (938+25)mm Width 196mm Depth (with terminals) (306+28)mm Carton size 420x310x1060mm (x2) Net weight 17.8kg/pcs Gross weight 21.2kg/ctn
"For the money, you're getting a real deal" ★★★★★ - Diamond 230 Review, What Hi-Fi? Sound and Vision
"...it presents the soundstage in a clear and upfront manner. Because the three drive units integrate so well it sounds very sophisticated considering the price" ★★★★★ - Diamond 230 Review, Hi-Fi Choice
