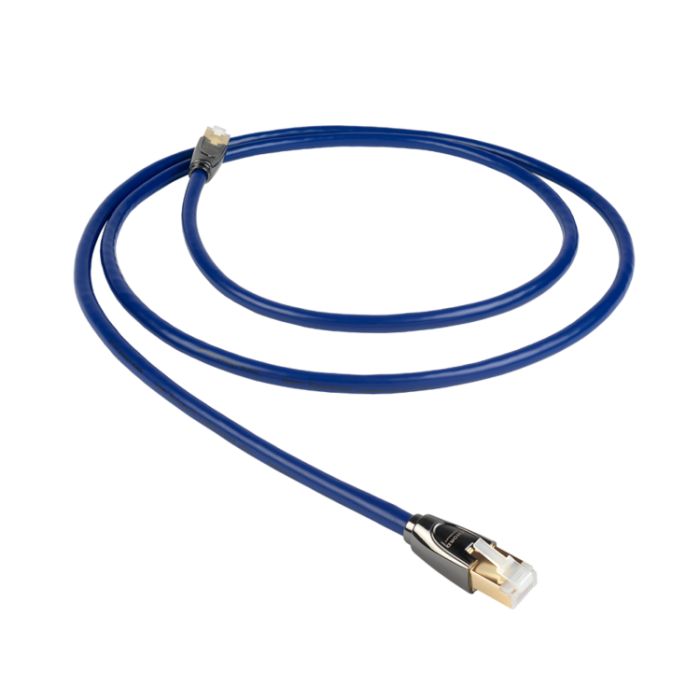

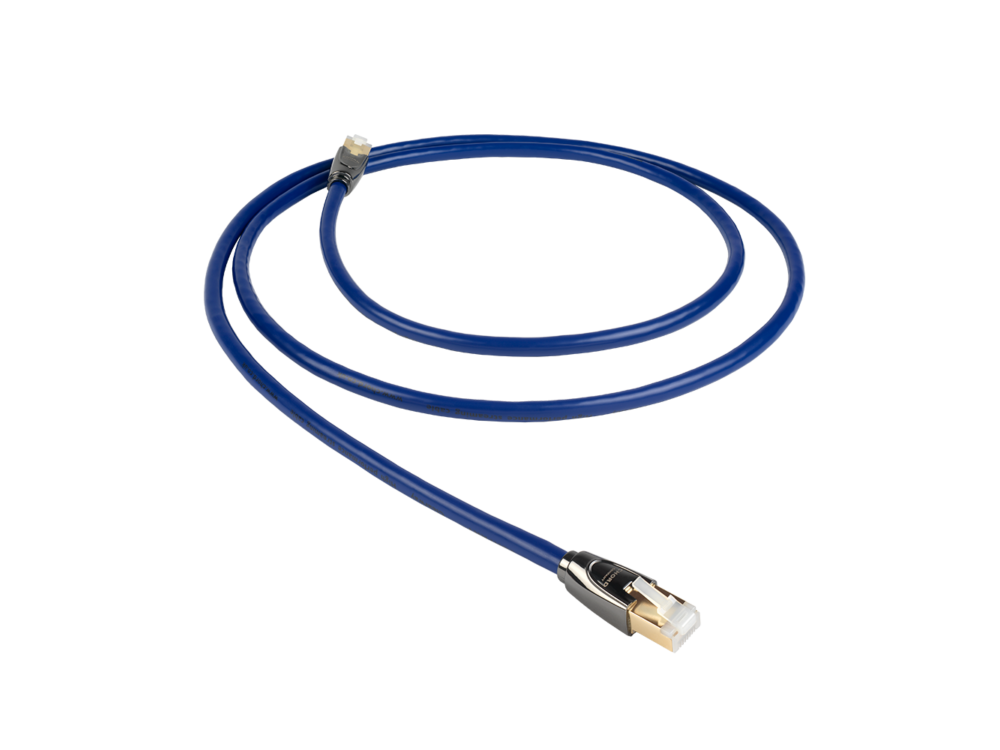

The Chord Company Clearway Streaming Ethernet Cable

Clearway Streaming cable has been designed to combat the pickup of external high-frequency noise that can interfere with your enjoyment of streamed digital audio and video.

$330.00

Warranty Period : 2 years

Sold as : 1 Unit

You should notice a difference from the minute you plug Chord Company Clearway Streaming cables into your system.

Clearway Streaming cable has been designed to virtually eliminate the pickup of external high-frequency noise that can interfere with your enjoyment of streamed digital audio and video. Noise can find its way into the signal grounds and affect the performance of both digital and analogue circuits. Although the digital information is very robust this unwanted noise can compromise the final performance.

To avoid this each of the four pairs of oxygen-free high-speed conductors have been individually shielded from the others. In addition to this we have fitted an overall shield below the outer jacket, optimised to further protect against high frequency noise.

  • Latest slim connector for maximum compatibility
  • High-speed oxygen-free copper conductors
  • Individually shielded, twisted conductor pairs plus overall shield
  • Low-loss low density polyethylene insulation
  • 24ct. gold-plated signal contacts
  • Zinc connector jacket
  • Non-compression strain relief system
  • Available in 0.75m, 1.5m, 3m, 5m, 10m, 15m & 20m lengths
Specification
GENERAL SPECIFICATIONS
Connector Configuration
  • RJ45 plug to RJ45 plug
  • 24-carat gold-plated signal contacts
Cable Type
  • Ethernet streaming interconnect
Conductor Material
  • Oxygen-free copper
Conductor Size
  • 26 AWG
Conductor Configuration
  • Four twisted pairs
Insulation
  • Low-density polyethylene
Shielding
  • Individually shielded conductor pairs
  • Additional overall shield beneath the outer jacket
Connector Construction
  • Slim-profile connectors
  • Zinc connector jackets
  • Non-compression strain relief
Reaction to Fire Classification
  • Eca (BS EN 13501-6:2014)
Declaration of Performance
  • Manufacturer declaration reference: 015
Available Lengths
  • 0.75 m
  • 1.5 m
  • 3 m
  • 5 m
  • 10 m
  • 15 m
  • 20 m
Installation Direction
  • Manufacturer specifies connecting the plug marked with a blue dot to the source (router/switch)
