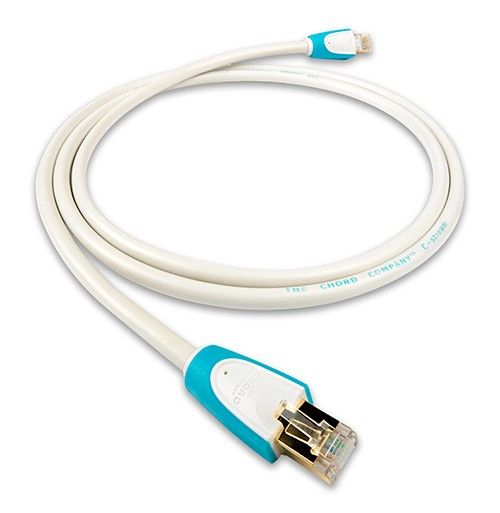

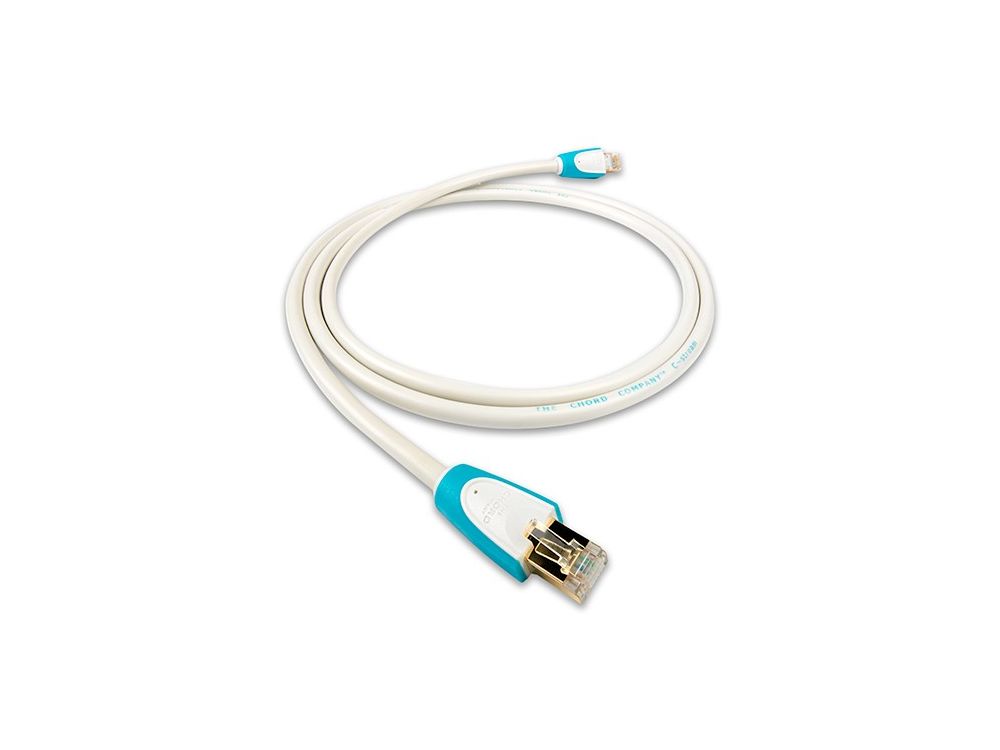

THE CHORD COMPANY C-Stream Ethernet Cable

The C-stream is a very high quality Cat 7 specification cable; the contacts are gold-plated and the plug body is over-moulded, which provides excellent reliability and secure strain relief without deforming the cable and affecting performance

$170.00

Brand

The Chord Company

2 years
Free delivery across Sydney metro
See it in our Marrickville demo room

The Chord Company Authorised The Chord Company dealer

Fast Shipping

Australia Wide

2 years

Manufacturer's warranty

Family owned since 1969

Same store, same street, same owners.

See it before you buy

Demo room open 7 days a week.

DESCRIPTION

Designed in the UK for the wide world of streaming audio systems. C-stream is part of the award-winning C-series range of analogue and digital connections including RCA/phono, USB, HDMI and speaker cable.

High speed oxygen free copper conductors
Individually shielded, twisted conductor pairs plus overall shield
Low-loss low density polyethylene insulation
24ct. gold-plated signal contacts
Over-moulded plug surround
Non-compression strain relief system

Available in 0.75m, 1.5m, 3m, 5m, 10m & 20m lengths

Installation

This cable has been designed to carry high-quality sound data. To obtain the best results from this
cable, please follow these instructions:

Switch off all equipment before fitting or removing cables.
Avoid touching the contact areas of the plug.
Route the cable away from power cables.
Test for compatibility with the equipment you wish to connect before installing cable in walls, floors etc.

Direction

Look for a black dot on one of the RJ45 connectors. For best sound quality, the plug with the black dot should be connected to the source. If using the cable to connect an audio streamer to a router the plug with the black dot should be connected to the router.

Specifications

Specification

GENERAL SPECIFICATIONS
Connector Configuration	RJ45 plug to RJ45 plug 24-carat gold-plated signal contacts
Cable Type	Ethernet streaming interconnect
Conductor Material	Oxygen-free copper
Conductor Configuration	Twisted conductor pairs
Insulation	Low-density polyethylene
Connector Construction	Over-moulded plug surrounds Non-compression strain relief
Shielding	Individually shielded conductor pairs Additional overall shield
Reaction to Fire Classification	Eca (BS EN 13501-6:2014)
Declaration of Performance	Manufacturer declaration reference: 014
Available Lengths	0.75 m 1.5 m 3 m 5 m 10 m 15 m 20 m
Installation Direction	Manufacturer specifies connecting the plug marked with a black dot to the source For router-to-streamer connections, connect the marked plug to the router/switch.
