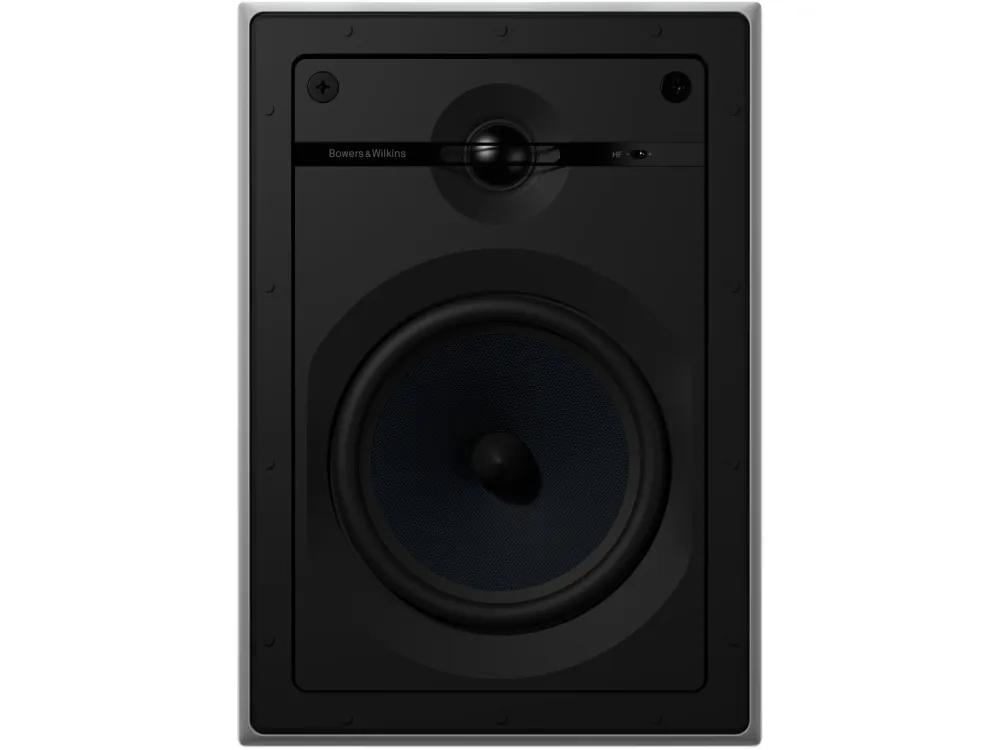

Bowers & Wilkins CWM663 In Wall speakers

Performance two-way in-wall speaker

The CWM663 features a blue Aramid Fibre bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. Its aluminium tweeter also incorporates a Nautilus™ tube to absorb unwanted sonic radiation. The CWM663 also utilises a three-position high-frequency switch to fine-tune the sound.

$1,049.00

Warranty Period : 5 years

Sold as : One Pair

Warranty Period : 5 years

Sold as : One Pair

See nothing, hear everything

The CWM663 features a blue Aramid Fibre bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. Its aluminium tweeter also incorporates a Nautilus™ tube to absorb unwanted sonic radiation. The CWM663 also utilises a three-position high frequency switch to fine tune the sound. The speaker is incredibly easy to install incorporating QuickDogs™ and plug-and-play functionality.

Specification
GENERAL SPECIFICATIONS
Product Type
  • In-Wall Speaker
System Type
  • 2-Way In-Wall System
Frequency Range
  • 45Hz - 50kHz (-6dB)
Sensitivity
  • 88dB SPL (2.83V, 1m)
Impedance
  • 8Ω (Nominal)
  • 4.5Ω (Minimum)
High-Frequency Adjustment
  • 3-Position High-Frequency Switch
Bass/Midrange Chassis
  • Die-Cast
Mounting System
  • QuickDogs™
Finish
  • White
DRIVERS
Tweeter
  • 1 x 25mm Nautilus™ Tube-Loaded Aluminium Dome Tweeter
Bass/Midrange Driver
  • 1 x 150mm Aramid Fibre Cone Bass/Midrange Driver
INSTALLATION SPECIFICATIONS
Pre-Mount Kit
  • PMK W6
Back Box
  • BB 6W
DIMENSIONS AND WEIGHT
Dimensions
  • 221mm Width
  • 95mm Depth (behind surface)
    • 4mm Protrusion (in front of surface)
  • 315mm Height
Cut-Out
  • 183mm Width
  • 279mm Height
