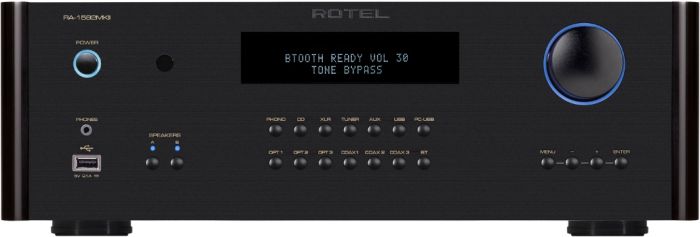

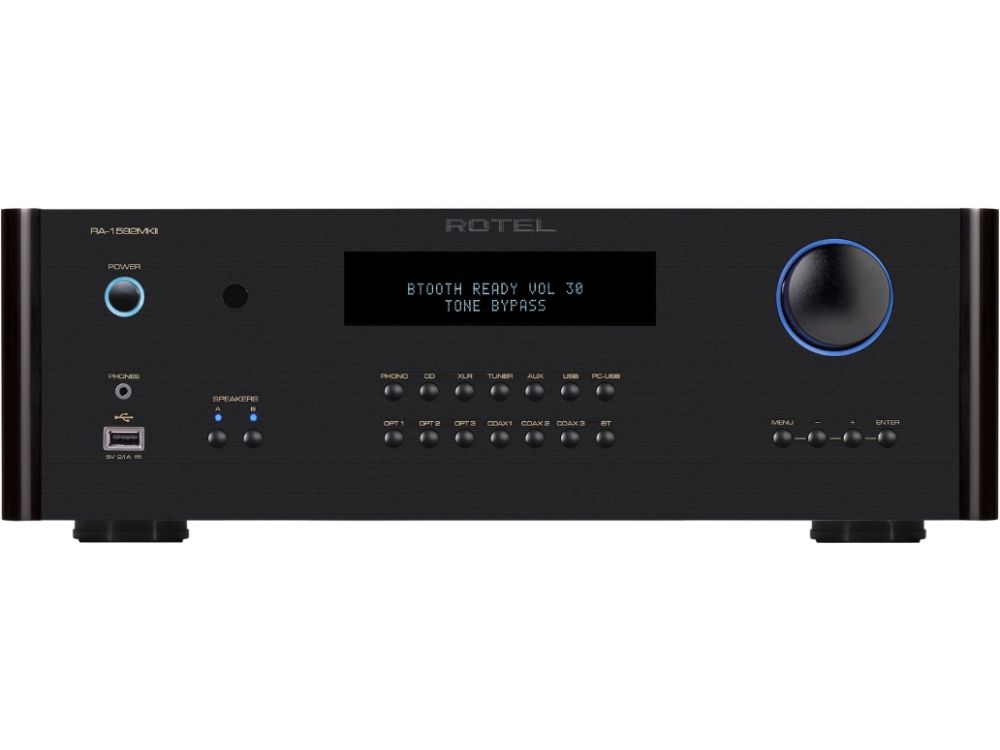

ROTEL RA 1592 MKII Stereo Integrated Amplifier

Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips accessible via streaming, digital mediums, classic vinyl and more.

$3,869.00 Regular Price $4,299.00

Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips accessible via streaming, digital mediums, classic vinyl and more.

Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.

The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimisation of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.

Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier technology, the RA-1592MKII is a no-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.

The RA-1592MKII supports your favourite sources including Analogue, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilises a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.

The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.

Convenience, performance and value - the RA-1592MKII delivers.

Specification

CONTINUOUS POWER OUTPUT

  • 200W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)

  • (20Hz–20kHz) < 0.008%

FREQUENCY RESPONSE

  • Line Level Inputs: 10Hz - 100kHz ±0.5dB
  • Digital Inputs: 10Hz - 90kHz ±2dB
  • Phono Input: 20Hz - 20kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)

  • Line Level Inputs: 103dB
  • Digital Inputs: 102dB
  • Phono Input: 80dB

DAMPING FACTOR

  • 600

INPUT SENSITIVITY

  • Line Level Inputs (RCA): 340mV
  • Line Level Inputs (XLR): 540mV
  • Phono Input (MM): 5.2mV

INPUT IMPEDANCE

  • Line Level Inputs (RCA): 100kΩ
  • Line Level Inputs (XLR): 100kΩ
  • Digital Inputs: 75Ω
  • Phono Input (MM): 47kΩ

INPUT OVERLOAD

  • Line Level Inputs (RCA): 3.5V
  • Line Level Inputs (XLR): 5.5V
  • Phono Input: 52mV

PREOUT LEVEL

  • 1.9V

OUTPUT IMPEDANCE

  • 100Ω

TONE CONTROLS

  • ±12dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS

  • LPCM (Up to 24-bit/192kHz)

PC-USB

  • USB Audio Class 1 (up to 24-bit /96 k Hz)
  • USB Audio Class 2 (up to 32-bit/384 k Hz)
  • DSD and DoP support
  • MQA and MQA Studio (up to 24-bit / 384k Hz )

DIMENSIONS

  • 431mm Width
  • 144mm Height
  • 425mm Depth

FRONT PANEL HEIGHT

  • 3U / 132.6mm (5.25")

POWER REQUIREMENTS

  • 230V, 50Hz

POWER CONSUMPTION

  • 500W

STANDBY POWER CONSUMPTION

  • <0.5W

NET WEIGHT

  • 17.63kg (37lbs.)

BTU RATING

  • 1239 BTU/h
