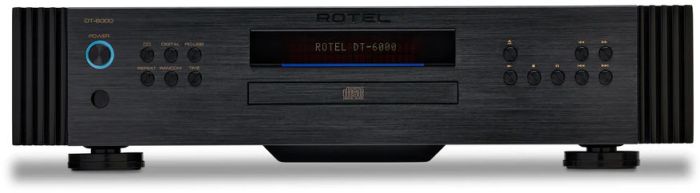

ROTEL DT 6000 Diamond CD Player DAC

The Rotel DT-6000 DAC Transport celebrates 60-Years of performance synonymous with the brands Japanese heritage.

PC-USB, Optical, Coaxial, and included tray loading CD Player provide the ultimate flexibility for your favorite sources rendering the audio with unprecedented detail and immersive sound stage.

$1,749.00 Regular Price $3,499.00

Rotel’s Diamond Series DT-6000 DAC Transport celebrates 60-Years of performance, passion, and value synonymous with the brands Japanese heritage.

An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

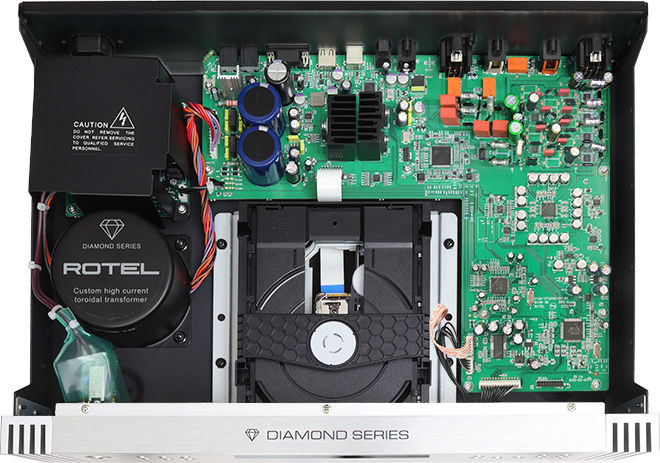

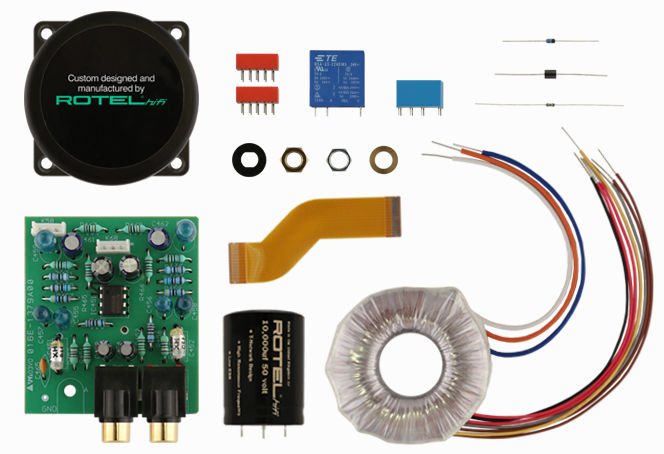

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.

The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X). Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.

The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.

Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

RS232, 12V trigger and external remote input ensure integration with control systems.

Features
  • Certified ROON Tested
  • Supports MQA and MQA Studio
  • Smooth tray loading CD mechanism
  • Fully balanced differential XLR outputs
  • ESS premium 32-bit 8-Channel Digital to Analogue Converter
Specification

Dimensions

  • 431mm Width
  • 104mm Height
  • 320mm Depth

Front Panel Height

  • 2RU
  • 88.1mm

Power Requirements

  • 230V
  • 50Hz

Power Consumption

  • 25W PEAK
  • <0.5W Standby

Net Weight

  • 8.11kg

Total Harmonic Distortion

  • Optical/Coaxial Input: <0.0007%
  • CD/PC-USB: <0.0012%

Frequency Response

  • 20Hz-20kHz, +0,-0.15dB
  • 10Hz-70kHz, +0.-3dB

Signal to Noise Ratio ("A" Weighted)

  • >115dB

Dynamic Range

  • >99dB

Digital to Analogue Converters

  • ESS Sabre 32-bit/768kHz DAC

Channel Balance

  • +/-0.5dB

Channel Separation

  • >115dB @ 10kHz

Intermodulation Distortion

  • <0.0012%

Analogue Output Level

  • Unbalanced (RCA): 2.1V

  • Balanced (XLR): 4.3V

Analogue Output Impedance

  • Unbalanced (RCA): 10Ω

  • Balanced (XLR): 20Ω

Input Sensitivity

  • 0dBfs / 75 Ohms

Digital Input Signal (Coax/Optical)

  • LPCM (Up to 24-bit/192kHz)

PC-USB

  • USB Audio Class 2.0 (up to 32-bit/384kHz)*

    *Driver installation required

  • Support native DSD (up to 11.2M) and DoP

  • Supoort MQA and MQA Studio (up to 24-bit/384kHz )

  • Roon Tested
