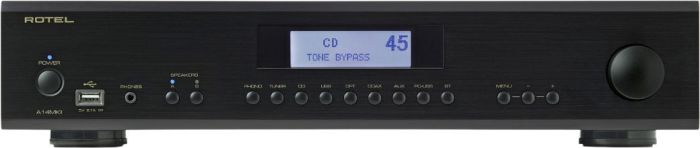

ROTEL A14MKII Stereo Integrated Amplifier

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

$1,979.00 Regular Price $2,199.00

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.

The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections.

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

Features
  • Certified Roon Tested
  • Supports MQA and MQA Studio
  • 2x 150 Watts of Robust Class A/B Power, 4 Ohms
  • Moving Magnet Phono Input for turntable
  • Wireless aptX and AAC Bluetooth
Specification

Dimensions

  • 430mm Width
  • 93mm Height
  • 345mm Depth

Front Panel Height

  • 80mm

Power Requirements

  • 230V AC, 50Hz

Power Consumption

  • 280W PEAK
  • <0.5W Standby

Net Weight

  • 8.94kg

BTU Rating (4Ω, 1/8th power)

  • 632 BTU/h

Maximum Power Output

  • 150W/Ch (4Ω)

Continuous Power Output

  • 80W/Ch (8Ω)

Total Harmonic Distortion (THD)

  • <0.018%

Frequency Response

  • 10Hz - 100kHz, ±0.5dB on Line Level Inputs
  • 10Hz - 90kHz, ±2.0dB on Digital Inputs
  • 20Hz - 15kHz, ±0.5dB on Phono Input

S/N Ratio (IHF "A" Weighted)

  • 100dB Line Level Inputs
  • 103dB Digital Inputs
  • 90dB Phono Inputs

Intermodulation Distortion

(60Hz:7kHz, 4:1)

  • <0.03%

Damping Factor

  • 220

Input Sensitivity

  • 230mV Line Level Inputs
  • 0dBfs Digital Inputs
  • 3.4mV MM Phono Input

Input Impedance

  • 24kΩ Line Level Inputs

Input Overload

  • 4V Line Level Inputs
  • 50mV Phono Input

PreOut Level

  • 1.2V

Output Impedance

  • 470Ω

Tone Controls

  • ±10dB at 100Hz Bass

  • ±10dB at 10kHz Treble

Coaxial / Optical Digital Input Signals

  • SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB

  • USB Audio Class 1 (up to 24-bit/96kHz)

  • USB Audio Class 2 (up to 32-bit/384kHz) *Driver installation required

  • MQA and MQA Studio (up to 24-bit/384kHz )

  • Roon Tested
