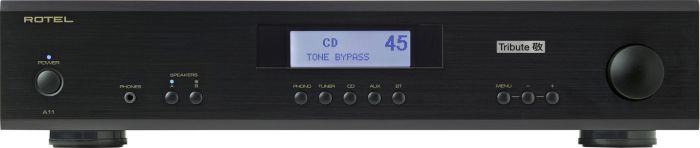

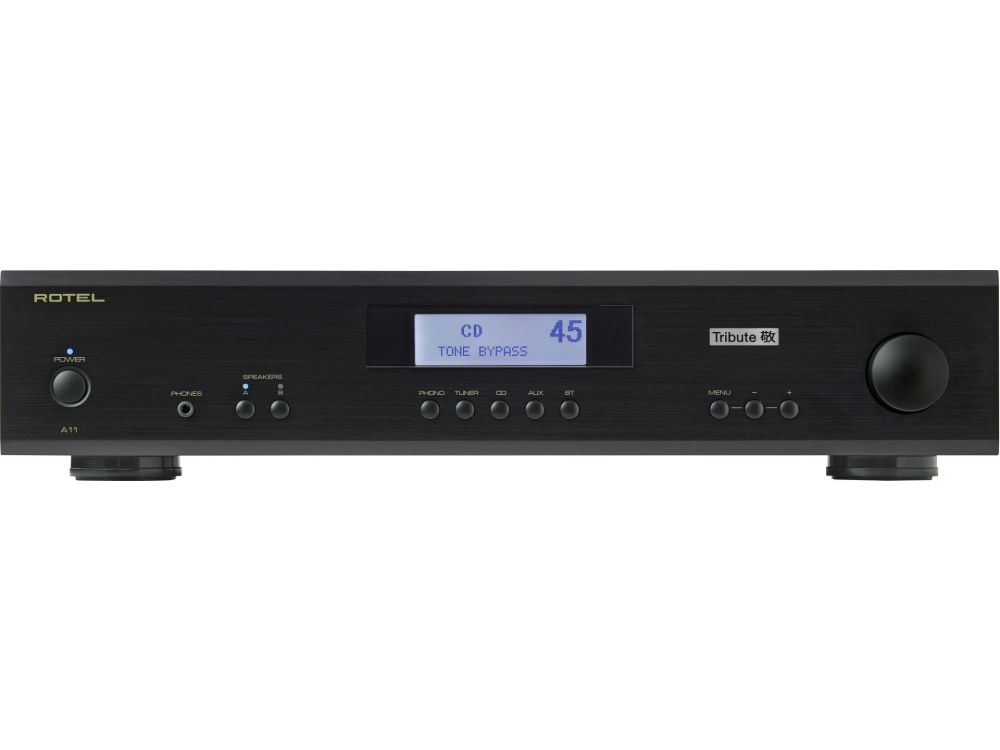

ROTEL A11 Tribute Stereo Integrated Amplifier

The A11 Tribute is a Class AB 50W Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy.

$769.00 Regular Price $1,099.00

The A11 Tribute is a Class AB 50W Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy. Upgraded components and meticulous tuning of all critical circuits deliver a richer, expressive, and true-to-life experience from the Bluetooth, RCA and MovingMagnetPhono Stage inputs.

The A11 Tribute is a Class AB 50W (8 ohms) Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy spanning over 40 years in the industry.

The collaboration between Ken and Rotel’s own engineering design teams delivered on the promise of an even higher level of performance of the extremely successful and popular award-winning A11. Upgraded components and meticulous tuning of all critical circuits deliver a richer, more expressive, and true-to-life experience from all of the support source inputs including apt-X and AAC wireless Bluetooth, array of 4 RCA analog inputs and a Moving Magnet Phono Stage for vinyl fans.

Specially selected improved components were chosen to offer higher performance throughout the signal path. In the amplifier stage, all 10 capacitors and two resistors in the signal path were changed.

For the pre-amp, six capacitors were upgraded, representing over 50% of the components in the signal path. All six capacitors in the volume stage were also upgraded.

Custom damping materials were added to the A11’s mechanical chassis to reduce ringing and further isolate/insulate and dampen any vibrations within the product.

The front panel graphic display and IR remote ensure effortless control of the audio driven by a Rotel in-house manufactured oversized toroidal transformer. The resulting acoustic performance speaks for itself under all loading conditions with even the most difficult speaker loads.

Features
  • Class AB 50 watts per channel stereo amplifier (8 Ohms)
  • Moving Magnet Phono Stage Input
  • 4 RCA analog inputs
  • Bluetooth receiver (apt-X and ACC streaming)
  • Dedicated RCA pre-output
  • Dual A-B selectable speaker outputs
  • RS232 and dual 12V trigger outputs
  • Front panel display and IR Remote
Specification

Engineered with care.

A11 Internal View

Dimensions

(W × H × D)

  • 430mm
  • 93mm
  • 345mm
Front Panel Height
  • 80mm
Power Requirements
  • 230V
  • 50Hz
Power Consumption
  • 160W
Standby Power Consumption
  • <0.5W
Net Weight
  • 6.85kg
BTU Rating (4Ω, 1/8th power)
  • 479 BTU/h
Continuous Power Output
  • 50 W/Ch (All channels driven, 8 Ohms)
Total Harmonic Distortion (THD)
  • (20Hz–20kHz) <0.03%
Frequency Response
  • Line Level Inputs: 10Hz - 100kHz ±0.5dB
  • Phono Input: 20Hz - 20kHz ±0.5dB

Components

S/N Ratio (IHF "A" Weighted)
  • Line Level Inputs: 100dB
  • Phono Input: 85dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
  • <0.03%
Damping Factor
  • 140
Speaker Impedance
  • 4Ω minimum
Input Sensitivity
  • Line Level Inputs: 180mV
  • Phono Input (MM): 2.3mV
Input Impedance
  • Line Level Inputs: 47kΩ
  • Phono Input (MM): 47kΩ
Input Overload
  • Line Level Inputs: 4V
  • Phono Input: 50mV
Preout Level
  • 1V
Output Impedance
  • 470Ω
Tone Controls
  • ±10dB at 100Hz / 10kHz
