PROJECT Xtension 9 Evolution Turntable

Audiophile belt drive turntable with carbon fibre tonearm, electronic speed change, and cartridge.

$6,999.00

The Best In Class - Superlative Vinyl Performance

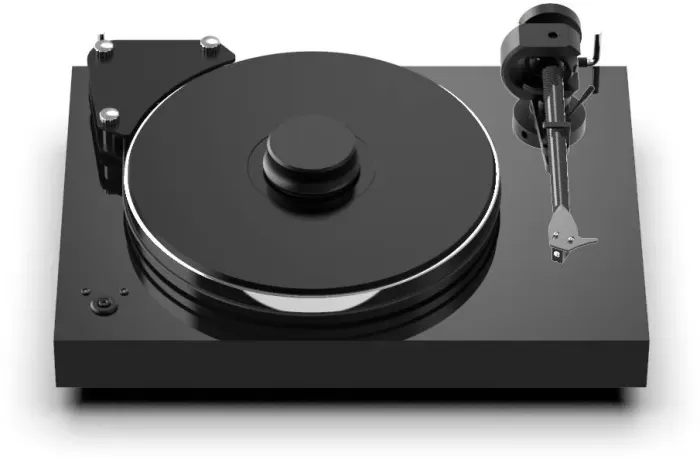

Xtension 9 Evolution incorporates all our turntable design experience in a slimline size. Choose from our various finish options, either luxury hand painted colours or real wood veneers.

Premium Features

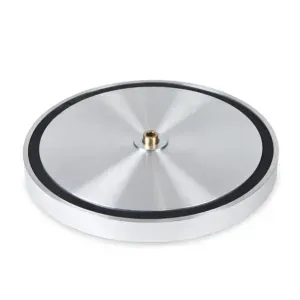

Superior Platter

Alu, TPE & Vinyl

Precision aluminium platter with TPE damping ring inside. The vinyl layer on top builds the best surface for your records.

Hi-Tech Feet

Magnetic decoupling

Three powerful magnetic feet effectively decouple the turntable & let it float over the surface.

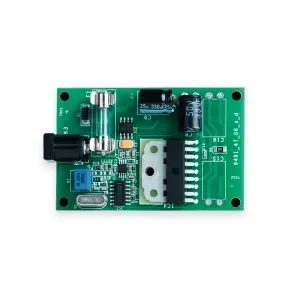

33 / 45 RPM

Precision motor control

The precision DC-driven AC generator powers the motor for enhanced speed stability. Easily change speeds with the push of a button.

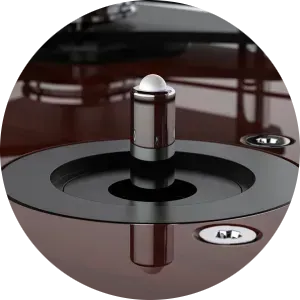

Silent Bearing

Special technology

The heavyweight platter spins on an inverted ceramic ball bearing with a magnetic support to reduce bearing noise and resonance to an absolute minimum.

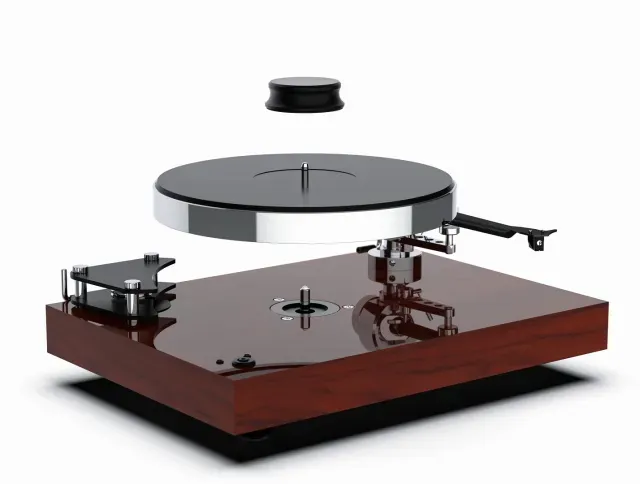

MAGNETIC MAIN BEARING

To ensure stable speeds a proper platter bearing is needed. The Xtension 9 Evolution uses a special technology.

The heavyweight platter spins on an inverted ceramic ball bearing with a magnetic support to reduce bearing noise and resonance to an absolute minimum. Which this solution we are able to relieve the main bearing and ensure that the platter runs ultra-silently.

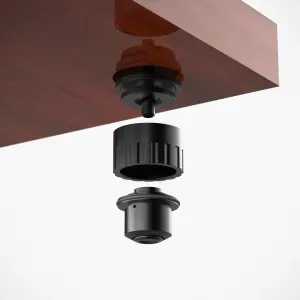

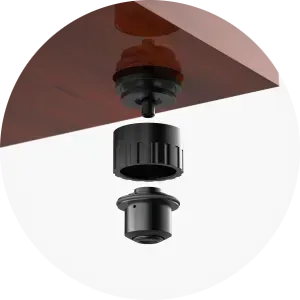

HIGH END MAGNETIC SUSPENSION FEET

Many turntable manufacturers forget that the feet are one of the most important parts of a turntable. Therefore, we wanted the best possible solution for the premium Xtension 9 Evolution.

With its superlative magnetic feet, this heavy turntable literally floats over the surface. These powerful magnets effectively decouple the turntable from its below base.

Features
  • Heavy 16 kg belt drive turntable
  • Mass loaded magnetic floating subchassis
  • Precision balanced sandwich platter
  • Inverted ceramic ball bearing with magnetic support
  • Heavy weight record clamp
  • MDF chassis filled with metal granulate with low levels of resonance and high mass
  • Electronic speed control between 33 and 45 RPM
  • 9cc Evolution tonearm made from carbon fibre
  • Inverted tonearm bearings (ABEC 7 quality)
Specification
Cartridge
  • ProJect Pick It DS2 MC
Speed
  • 33-1/3 RPM
  • 45 RPM
  • Electronic Speed Change
Drive principle
  • Belt Drive
Platter weight
  • 5.4kg
Platter diameter
  • 300mm
Speed variance
  • ±0.09%
Wow and flutter
  • ±0.1%
Signal to noise
  • 73dB
Tonearm
  • 9" one-piece carbon fibre tonearm
Effective arm length
  • 230mm
Overhang
  • 18mm
Effective tonearm mass
  • 8.5g
Tracking force range
  • 0-25mN
Cartridge weight range
  • 4-14g
Power supply
  • 220-240V 50Hz
  • 15V 1600mA DC
Power consumption
  • <1W Standby
  • 4W Max
Accessories
  • Record Puck
  • Connect It E 5P to RCA phono cable
  • Dust Cover
  • Power Supply
Dimensions
  • 465mm Width
  • 185mm Height (lid closed)
  • 350mm Depth
Weight
  • 16kg
