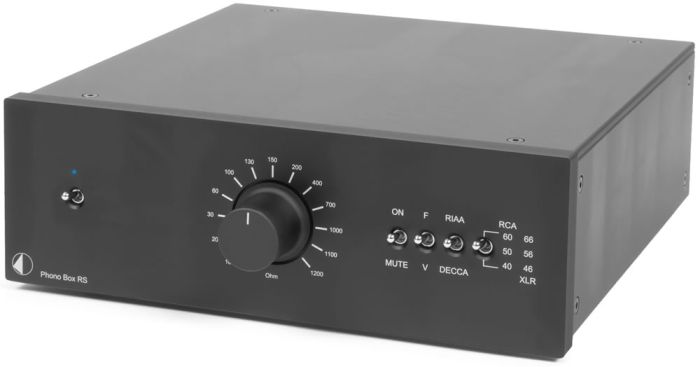

PRO-JECT Phono Box RS Phono Pre-Amplifier - Black

This ultra low noise and distortion preamplifier is made for the audio conniosseur and offers not only breathtaking performance but is capable to adapt to virtually any phono cartridge through variable impedance control. Impedance adjustment can be done while playback!

Special Price $1,329.00 Regular Price $1,429.00

Please Note: Phono Pre-Amp's require RCA or XLRcables to connect to your amplifier. We have a wide selection of cables and interconnects available HERE.

This ultra low noise and distortion preamplifier is made for the audio conniosseur and offers not only breathtaking performance but is capable to adapt to virtually any phono cartridge through variable impedance control. Impedance adjustment can be done while playback! Due to use of best parts, like SSM2019 from Analog Devices as input stages and Linear Technology LT1010 as high current buffer stage, Phono Box RS delivers ultra low levels of distortion and noise. Its very low output impedance makes it insensitive to selection of interconnect cables and lenghts.

Fully passive RIAA and DECCA equalisation is selectable. Phono Box RS offers fully balanced circuitry and both XLR and RCA inputs and outputs. All in all vinyl playback will never have sounded as clear, detailed and smooth, than with this superlative phono stage!

Features

• MM & MC capable

• True dual mono design

• Balanced XLR & unbalanced RCA In & Outputs

• Fully passive RIAA & DECCA equalisation

• Unique continously variable input impedance loading,

  matches every cartridge (adjustment even while playing)

• RCA & XLR In & Out

• Superior low noise / low distortion

• Classy & elegant dip switches

• DC power supply (< 1 watt standby power)

• Metal casing protects against vibration and interference

• Faceplate silver or black

Specification



Input impedanceFixed 10 ohms or 47kohms,
 variable 10 - 1200 ohms
Load capacity switchable100pF 200pF, 300pF, 420pF, 520pF
Output impedance50 ohms
Gain, MM / MCRCA: 40, 50, 60 dB
 XLR: 46, 56, 66 dB
Signal to noise ratio80dB (91dB - IEC -A)
THD< 0,019%
RIAA accuracywithin 0,3dB/20Hz - 20kHz
SubsonIc20Hz / - 12dB
InputRCA & XLR
OutputRCA & XLR
Power supply+2x 18V/300mA DC; 220 - 240V, 50Hz
Power consumption150mA DC < 1 watt standby
dimensions W x H x D (T with sockets)206 x 72 x 200 (210)mm
weight2000g without power supply
