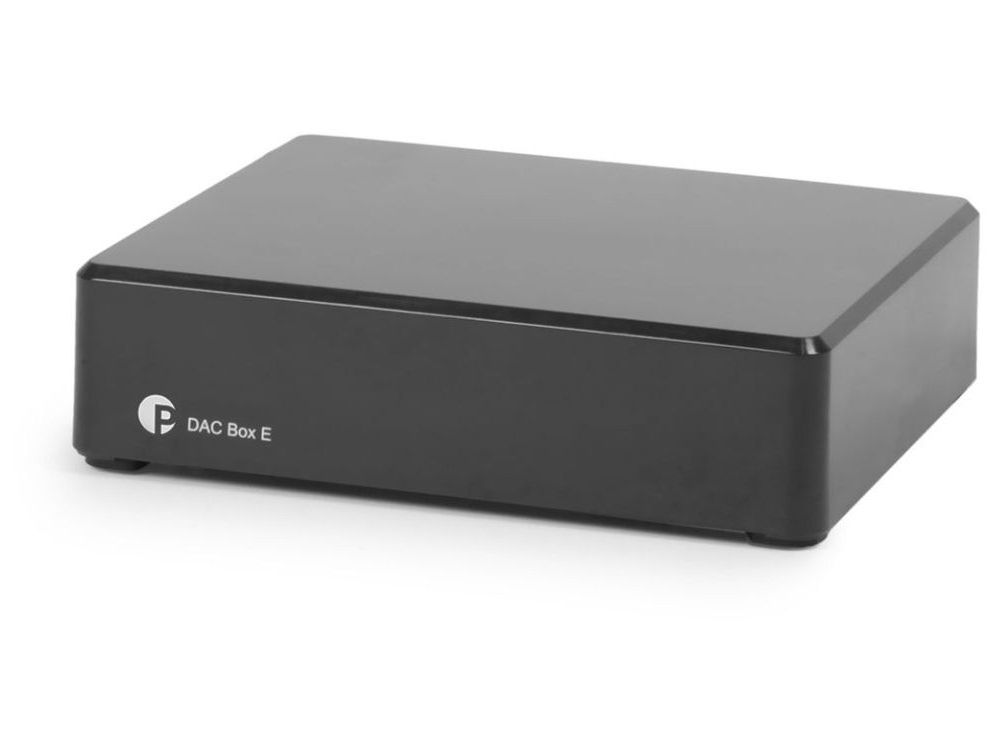

PRO-JECT DAC Box E Digital to Analogue Converter

Pure listening pleasure for digital sources at an absolute bargain price!

$169.00

The entry level DAC Box E is an excellent D/A converter for digital sound sources using optical and coaxial connections. Despite the low price, it sounds outstanding and supports HD music data up to 24/192kHz. DAC Box E uses high quality components like precision D/A converter chips and a low noise output stage. It will act as a perfect upgrade for any digital stereo audio source, especially for best-buy CD-players, Bluray or DVD players with CD playback, set-top boxes etc!

The whole audio circuitry design is perfectly linear with low output impedance to avoid any negative interference with cables or pre-amps. Its class-leading audio performance makes DAC Box E an outstanding low-cost audio bargain!

Features
  • 24bit / 192kHz D/A conversion
  • Co-axial (RCA) & optical (Toslink) S/PDIF input
  • SMD circuitry
  • Special low noise components
  • Internal metal shielding
  • Small size allows installation close to source
  • Gold plated RCA connection sockets
  • Outboard power supply included
  • Gloss Black Casing
Specification

Line-level output

  • 1 pair RCA/phono sockets

Output voltage

  • 0.7 Vrms

Digital inputs

  • 1x coaxial (S/PDIF)

  • 1x optical (TOSlinkĀ®)

D/A converter

  • CS4344

  • 24Bit/192kHz

Supported audio format

  • PCM (LPCM) (Stereo only, no support for multi-channel formats)

Sampling rates Optical and coaxial input

  • 44.1 kHz

  • 48kHz

  • 96 kHz

  • 192 kHz (coaxial only)

Outboard power supply

  • 18 V / 500 mA DC; 220 - 240V, 50Hz

Power consumption

  • 200 mA DC, <1W in standby

Dimensions

  • 120mm Width
  • 32mm Height
  • 106mm Depth (inc. Sockets)

Weight

  • 250 g without power supply
