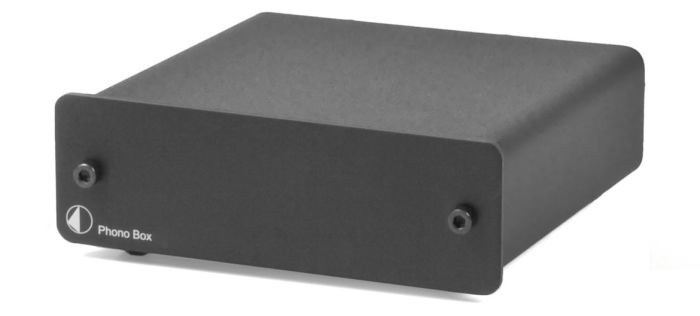

PRO-JECT Phono Box Pre Amplifier - Black

Phono Box: Best buy classic for pure vinyl listening pleasure! Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,...) of your amplifier.

Special Price $179.00 Regular Price $239.00
Brand

Warranty Period : 2 years

Warranty Period : 2 years

Save $60.00 25% off
  • 2 years
Pro-Ject Authorised Pro-Ject dealer

Fast Shipping

Australia Wide

2 years

Manufacturer's warranty

Family owned since 1969

Same store, same street, same owners.

Expert advice

Talk to our local team.

Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,...) of your amplifier.



Features

• Preamplifier for MM or MC with switch on rear panel

• Best buy classic

• DC power supply (< 1 watt standby power)

• Precise RIAA equalisation

• Low noise ICs

• Output stage with ultra-low impedance

• Gold-plated RCA sockets

• Small size for installation near record player

• Available in black and silver



Specification

Input impedance, MM

  • 47kohms/120pF MM
  • 100ohms/120pF MC

Gain

  • 40dB MM
  • 60dB MC

Output voltage typically

  • 300mV/1kHz at 3mV/1kHz (MM input)
  • 300mV/1kHz at 0,3mV/1kHz (MC input)

Max. output

  • 9.5V (1kHz)

Noise floor, MM

  • 86dB (94dB - A weighted) MM
  • 68dB (75dB - A weighted) MC

THD, MM

  • 0.01% MM
  • 0.05% MC

RIAA-equalisation curve accuracy

  • 20Hz - 20kHz / max. 0,5dB

Outboard power supply

  • 18V 200mA DC,

Standby power consumption

  • < 1 watt

Dimensions W x H x D

  • 103mm Width
  • 109mm Depth
  • 36mm Height

Weight

  • 540g
