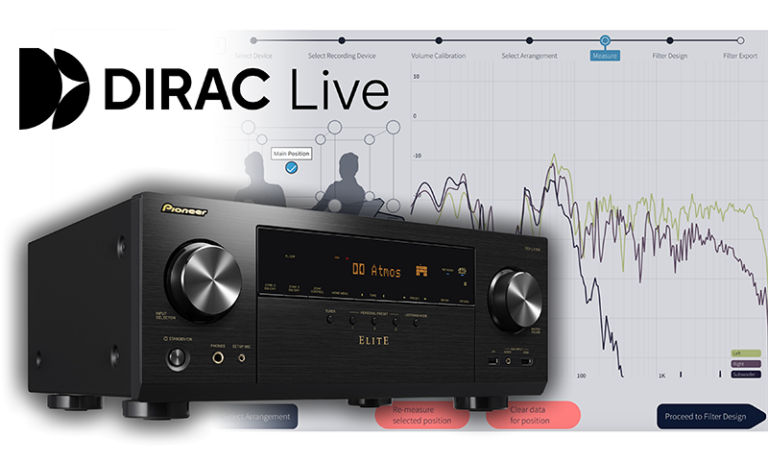

Dirac Live Room Correction

State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS* application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers’ full potential in any listening space and delivers a uniquely pristine listening experience. Now, you will get a more accurate measurement of the positions of your Surround Sound system to be more precise and balanced to provide a better result with increased the upper limit of delay time from 20 milliseconds to 50 milliseconds.

 _{*Device must be connected to the internet and the same network as your AVR.}

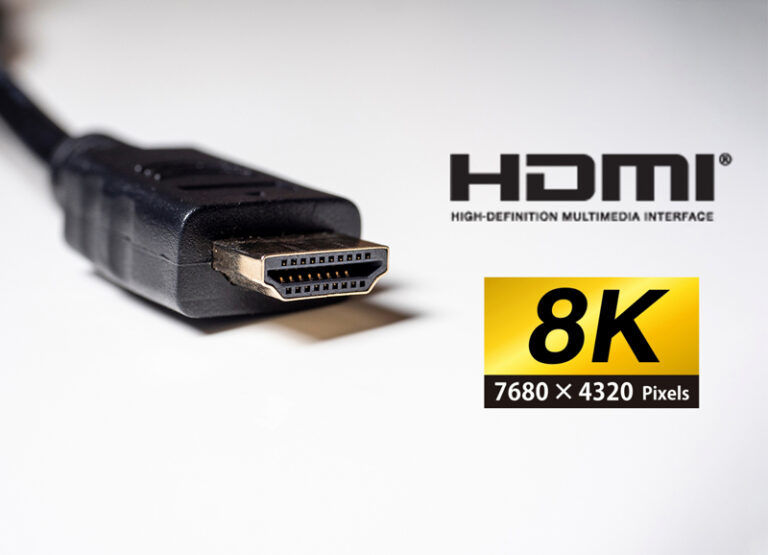

HDMI® 2.1 with 8K

 HDMI® 2.1 is the most recent update of the HDMI® spec and supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, as well as Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K ensures your system is ready for the clearest and cleanest picture available both now and down the road.

ULTIMATE 4K GAMING EXPERIENCE

4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. This receiver supports higher performance from streaming devices like the latest Apple TV.

IMAX® Enhanced MODE

IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Pioneer Elite’s IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.

Built-In Streaming Music Services and Faster Wifi

Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system.

Bi-directional Bluetooth® Wireless Technology

This AVR can send and receive audio via Bluetooth wireless technology. Now, the Bluetooth connectivity between your streaming device and Pioneer AV Receiver is even better so you can easily connect to your device and control it wirelessly with ease. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™️, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.

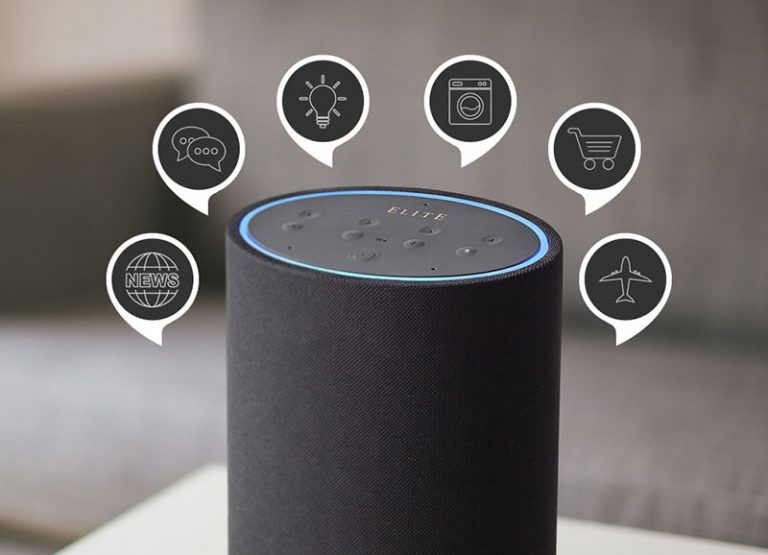

BUILT-IN MULTI-ZONE STREAMING AND VOICE CONTROL

This AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.**

 ^{_{*A third-party AI device is required for voice commands - sold separately}}

 ^{_{***8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used}}

Works with Sonos Certified

This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*.

 _{^{*Sonos Port required and sold separately.}}

MCACC Auto Room Tuning featuring Auto Phase Control Plus

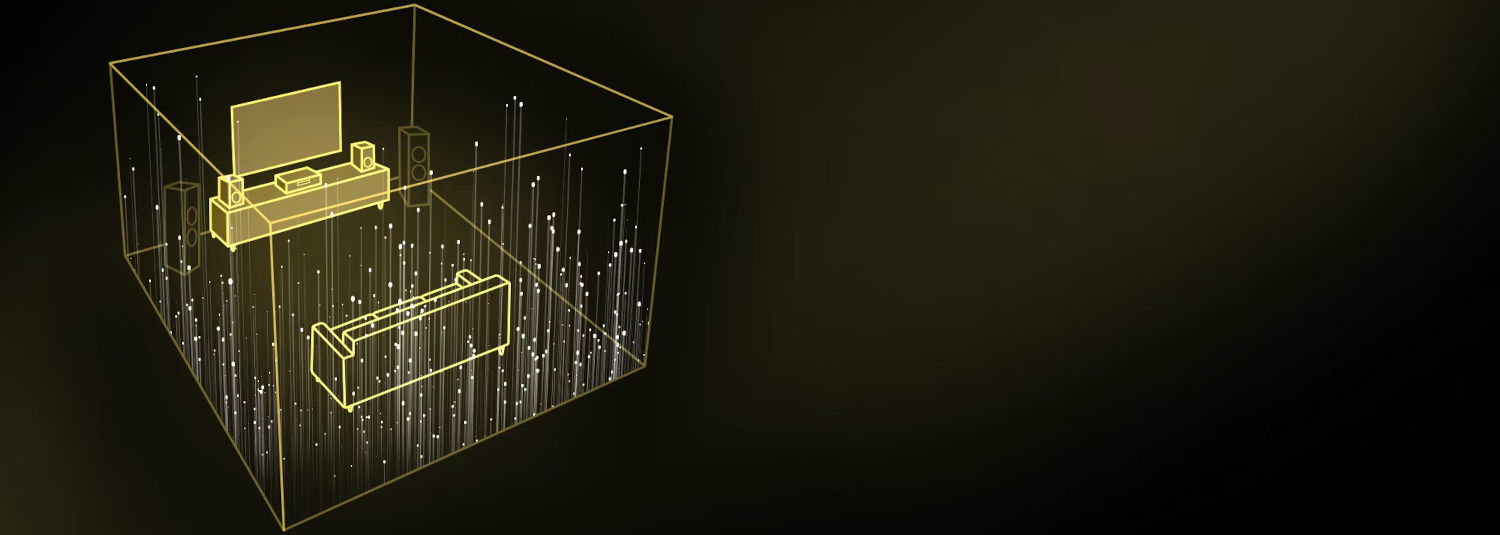

MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus* makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.

Roon-Tested

Roon plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon-Tested device, you can have the confidence that you will enjoy the best possible experience with it.

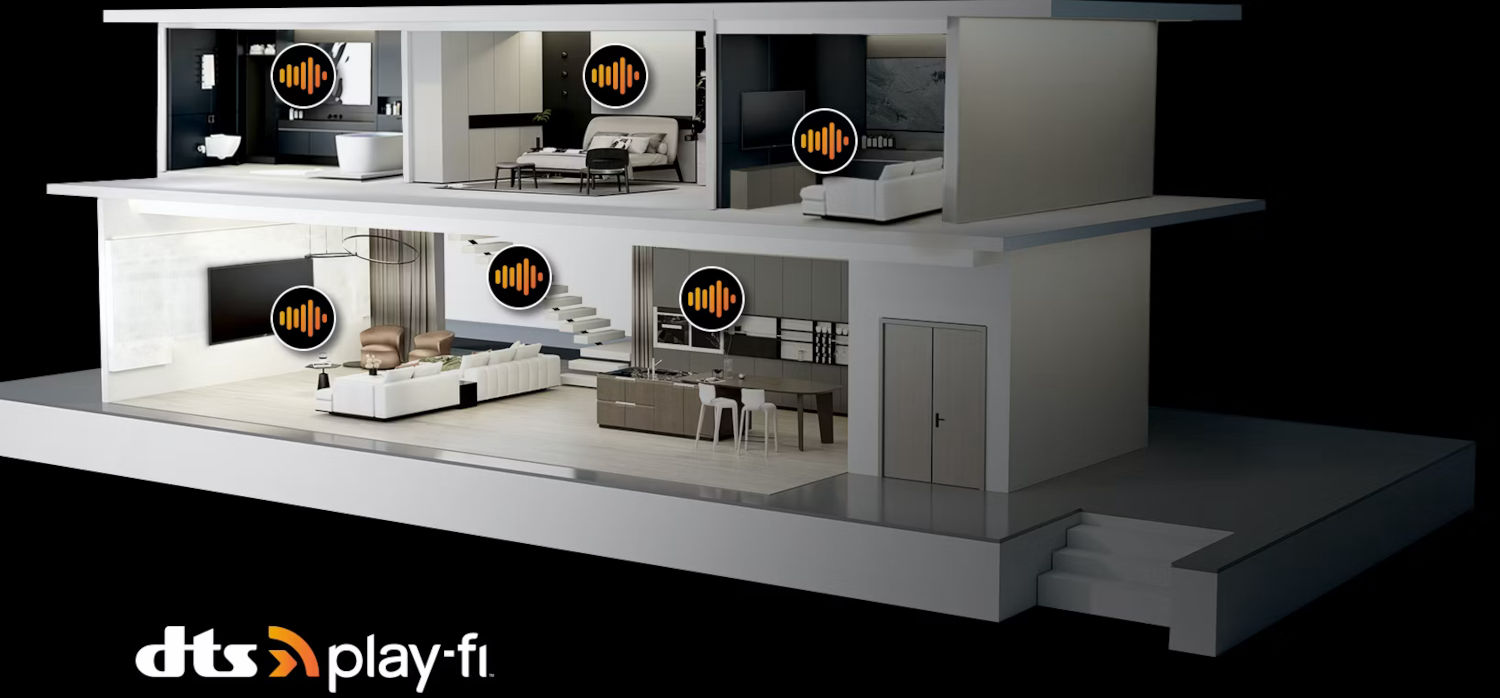

DTS Play-Fi

DTS Play-Fi* wirelessly streams any audio content from any compatible mobile device to your AV Receiver and DTS Play-Fi compatible audio systems, creating a multi-room system in your home. You can stream different sources to different speakers at the same time from the DTS Play-Fi app.

Amplification

Channels

 Amplification Type

 225 W/ch

 100 W/c

Audio Features

 IMAX Enhanced

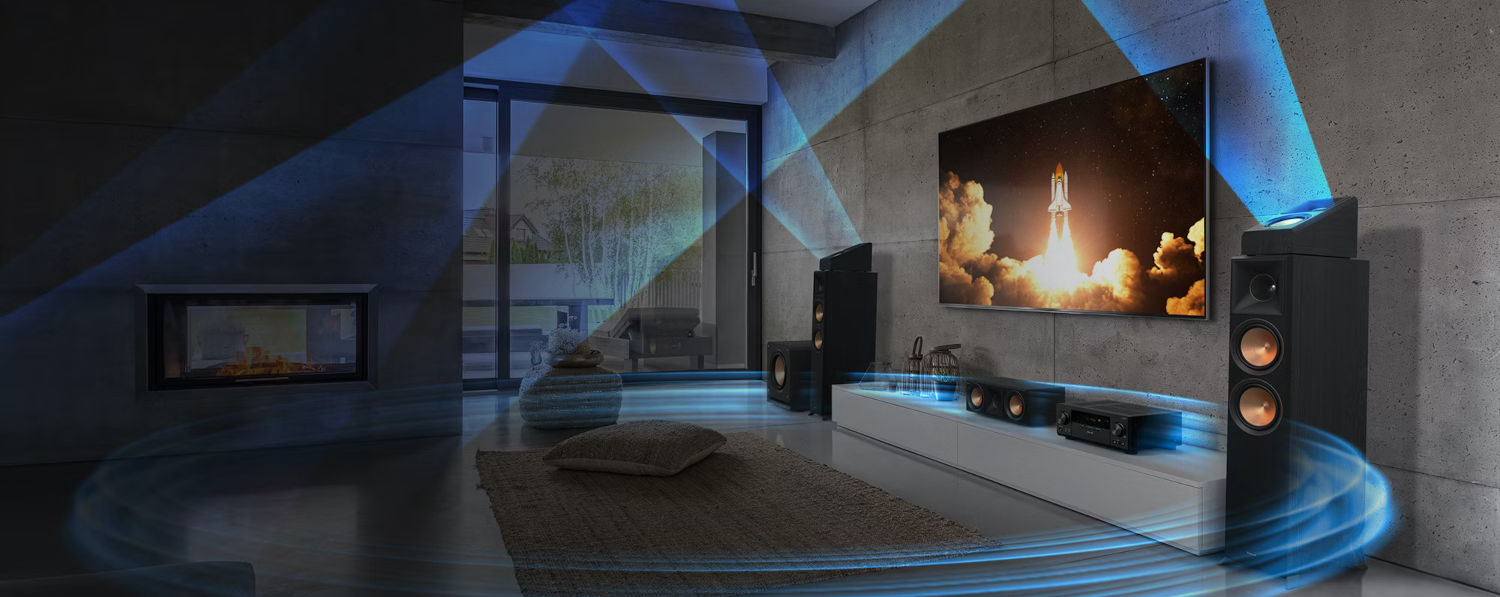

 Dolby Atmos®, Dolby Surround Upmixer supports DTS Formats

 Reflex Optimizer

 Dolby Atmos Height Virtualizer

 Dolby® TrueHD, Dolby Digital Plus

 DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express

 DSD Disc (SACD) Playback

 Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI)

 192 kHz/24-bit D/A Conversion for Hi-Res Audio

 Enhanced Audio Return Channel (eARC) on HDMI Out (Main)

 Advanced MCACC Auto Room Tuning

• Auto Phase Control Plus
• Subwoofer EQ
• Multi-point Standing Wave Control

 Dirac Live® Room Correction

 Advanced Sound Retriever (2ch)

 Advanced Surround Modes

• Classical
• Unplugged
• Entertainment Show
• Drama
• Advanced Game
• Action
• Rock/Pop
• Sports
• Extended Stereo
• Mono Music
• Front Stage Surround Advance

Video Features

 Support HDMI 2.1*1 with 8K

• VRR (Variable Refresh Rate)
• ALLM (Auto Low Latency Mode)
• QFT (Quick Frame transport)
• DSC (Display Stream Compression)
• and QMS (Quick Media Switching) pass-through

 Supports HDR10+

•  HDR10, and HLG; 8K/60p (4:2:0/10-bit)
• 8K/30p (4:4:4/10-bit, 4:2:2/12-bit)
• 4K/120p (4:4:4/10-bit, 4:2:2/12-bit)
• 4K60p (4:4:4/12-bit) and BT.2020 color
• DeepColor™ (36-bit)
• “x.v.Color”
• LipSync
• HDCP 2.3

 Dolby Vision Compatible

 Ultra HD Upscaling (4K to 8K, 1080p to 8K/4K)

Home Network Features

 Works with Alexa supporting multi-room music

 Works with Hey Google and Chromecast built-in

 DTS Play-Fi with Pioneer Music Control App

 Apple AirPlay 2 with Siri Voice Control

 Works with SONOS supporting multiple Sonos Connect control and Volume Pass Through mode

 Amazon Music HD*3, Pandora®, Spotify, TIDAL, and Deezer Hi-Fi Music-Streaming Services Ready

 Internet Radio with TuneIn

 Hi-Res Audio File Playback via USB/Network

 Up to 192 kHz/24-bit ALAC*5, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD*

Convenience Features

 Personal Preset

 Dialog Enhancement

 Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-in

 Bluetooth® Wireless Technology

Transmitter/Receiver Version: 4.2

Profile: A2DP 1.2/AVRCP 1.3

Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX)) Built-in

 Pioneer Remote App

 User-Friendly GUI with System Setup Menu

 On-Screen Information for Audio, Video and Network

 Web Setup

 Auto Power Off in HDMI Standby Through

 AM/FM Tuner 40 Presets

 Sleep Timer

 User-Friendly Simple Remote Control

Front Terminals

 HDMI 1 In

 USB 1 In for USB Drive

 MCACC/Dirac Live Web Setup MIC

 Audio 1 In

 Phones 1 Out

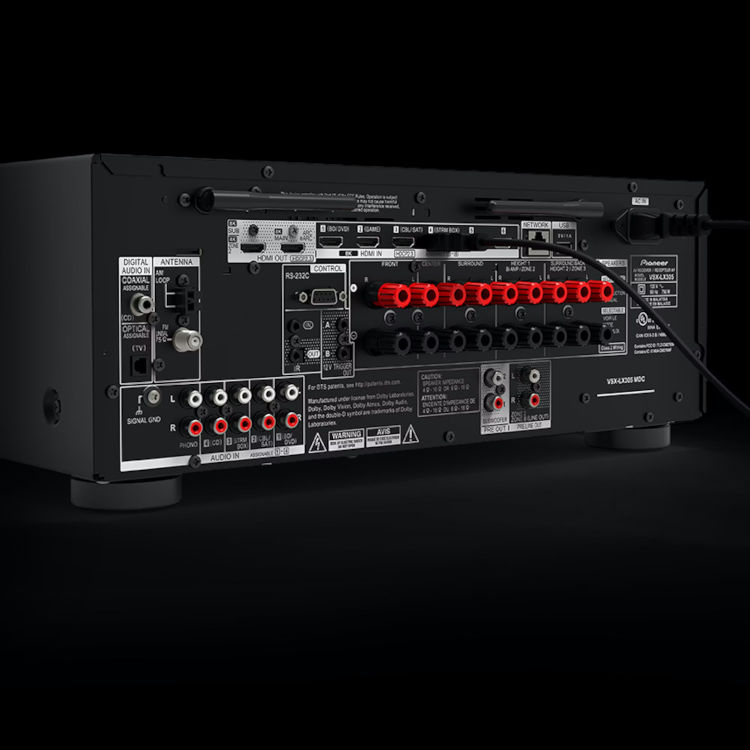

Rear Terminals

 HDMI 6 In

 HDMI 2 Out

1 for MAIN

1 for SUB/ZONE 2

 Ethernet 1 In

 USB 1 In for USB Drive

 Audio 4 In

 Phono (MM) 1 In

 Digital Coaxial 1 In

 Digital Optical 1 In

 Subwoofer 2 Pre Out

 ZONE 2 Pre/Line Out/ZONE B Line Out

 Speaker 9 ch Out

• FRONT
• CENTER
• SURROUND
• HEIGHT 1/Bi-AMP/ZONE 2
• SURROUND BACK/HEIGHT 2/ZONE 3

 IR 1 In/1 Out

 12 V Trigger 2 Out

 RS-232C

 FM/AM Antenna

Specifications

 Power Requirements

AC 230V 50Hz

 Power Consumption

750W PEAK

0.1W Standby

Dimensions

• 435mm Width
• 370.5mm Depth
• 173mm Height

Weight
