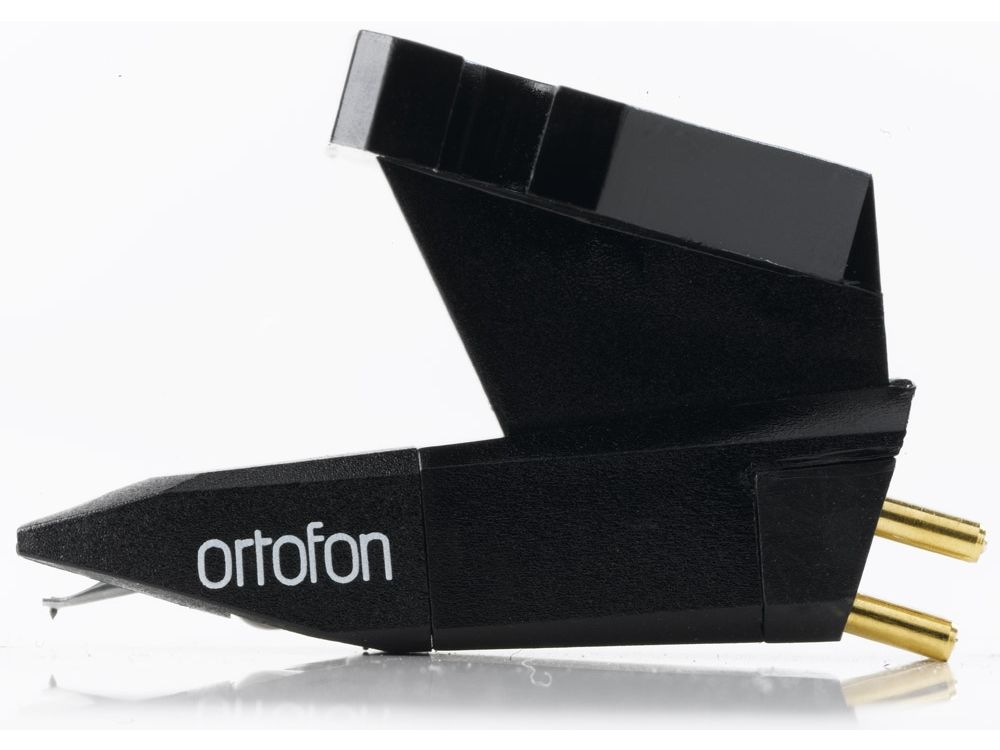

main product photo
Ortofon

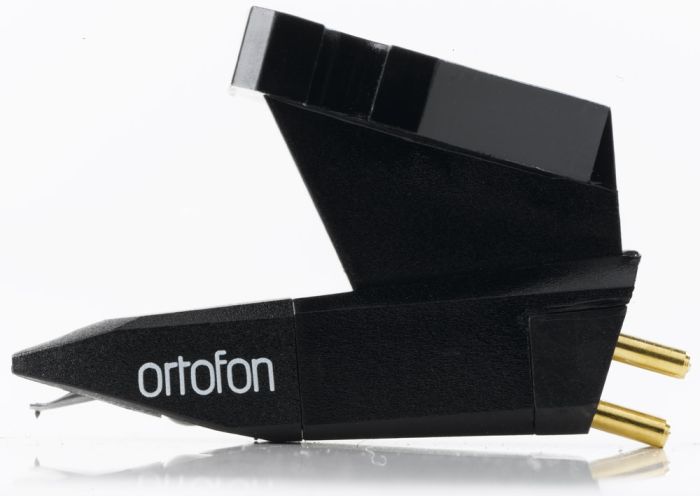

ORTOFON OM5E Moving Magnet Cartridge

For more than 50 years, Ortofon has been designing and manufacturing Moving Magnet cartridges. Along with our well-regarded Moving Coil cartridges, Moving Magnet models have established a good reputation among music lovers and Hi-Fi enthusiasts the world over.

Special Price $89.00 Regular Price $99.00
Add to Compare

Warranty Period : N/A

Sold as: 1 Unit
Calculate Shipping Cost

The OM 5E is a magnetic cartridge (MM) with an elliptical shaped stylus that provides balanced and distortion-free playback for general purpose applications.

Specification

Output voltage at 1kHz, 5cm/sec

  • 4mV

Channel Balance at 1kHz

  • 2dB

Channel Separation at 1kHz

  • 22dB

Channel separation at 15kHz

  • 15dB

Frequency range at -3dB

  • 20Hz - 25kHz

Frequency Response

  • 20Hz - 20kHz  ± 2 dB

Tracking Ability at 315Hz at recommended tracking force

  • 65 µm

Compliance, Dynamic, Lateral

  • 20 µm/mN

Stylus Type

  • Elliptical

Stylus tip radius

  • r/R 8/18 µm

Tracking force range

  • 1.5-2.0 g (15-20 mN)

Tracking force, recommended

  • 1.75 g (17.5 mN)

Tracking angle

  • 20°

Internal impedance, DC resistance

  • 750 Ohm

Internal inductance

  • 450 mH

Recommended load resistance

  • 47 kOhm

Recommended load capacitance

  • 200-600 pF

Cartridge colour

  • Black

Cartridge mass

  • 5g
