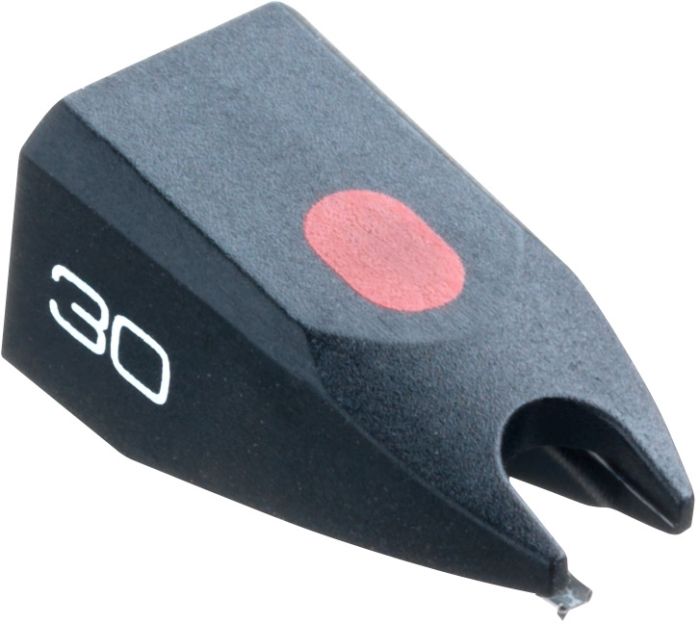

ORTOFON OM30 replacement Stylus

Frequency Range

• 20-29,000 Hz

Frequency Response

• 20-20,000 Hz +2/-3dB

Tracking ability at 315Hz at recommended tracking force

• 90 µm

Compliance, Dynamic, Lateral

• 25 µm/mN

Stylus Type

• Nude Fine Line

Stylus Tip Radius

• r/R 8/40 µm

Equivalent Stylus Tip Mass

• 0.3mg

Tracking Force Range

• 1.25-1.75 g (12.5-17.5 mN)

Tracking Force (Recommended)

• 1.5 g (15 mN)

Tracking Angle

• 20°

Stylus Colour

• Black

Recommended for the following cartridges

• Super OM30
• OM30
• OMP30
• OMB30
• LM30
• Concorde 30
• SME 30H
• LM 30H
• TM 30H
