ORTOFON Cadenza Red Moving Coil Cartridge
Move your mouse over image or click to enlarge
ORTOFON Cadenza Red Moving Coil Cartridge

Ask a Question







Ask a Question


ORTOFON Quintet Blue Moving Coil Cartridge

ORTOFON Quintet Blue Moving Coil Cartridge

DENON DL 103 R Moving Coil Cartridge

DENON DL 103 R Moving Coil Cartridge

ORTOFON Cadenza Red Moving Coil Cartridge

ORTOFON Cadenza Red Moving Coil Cartridge

Special Price $1,682.00 Regular Price $1,869.00
SKU

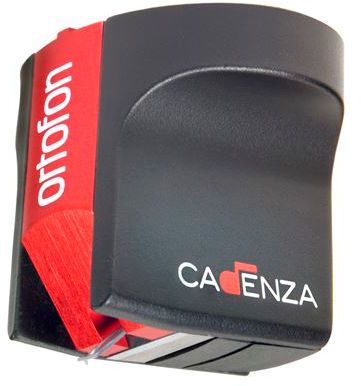

ORTOFON Cadenza Red

The Cadenza Red model is using a Nude Fine Line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm.

The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance.

The sound picture of Cadenza Red is more relaxed, homogeneous and moderately dynamic in the perspective compared to the Cadenza Blue and have great space and depth in the stereo image.

Output voltage at 1 kHz 5 cm/sec

  • 0,45 mV

Channel balance

  • < 1,5 dB

Channel separation at 1 kHz

  • > 23 dB

Channel separation at 15 kHz

  • > 15 dB

Frequency range at -3 dB

  • 20 Hz - 50 kHz

Frequency response 20 Hz - 20 kHz

  • +3/-1

Tracking ability at 315 Hz at recommended tracking force *)

  • 80 μm

Compliance, dynamic, lateral

  • 12 μm/mN

Stylus type

  • Nude Fine Line on Alu cantilever

Stylus tip radius

  • r/R 8/40

Tracking force range

  • 2,2-2,7 g (22-27 mN)

Tracking force recommended

  • 2,5 g (25 mN)

Tracking angle

  • 20º

Internal impedance, DC resistance

  • 5 Ohm

Recommended load impedance

  • 50-500 Ohm

Cartridge body material

  • Stainless steel Aluminium

Cartridge colour

  • Red/Black

Cartridge weight

  • 10,7 g

*) Typical value
