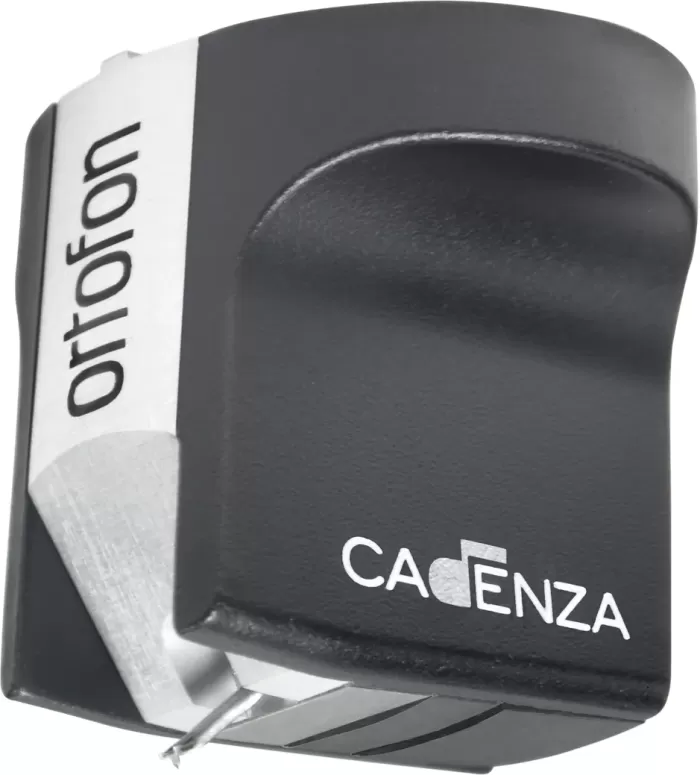

ORTOFON Cadenza Mono Moving Coil Cartridge

27 - 33 DAY LEAD TIME UPON ORDER

A true mono cartridge

MC Cadenza Mono

Cadenza, derived from the Italian word "cadence," designates a segment within a musical performance, typically a concert, where the orchestra ceases its play, allowing the soloist to perform independently, unrestrained by a strict rhythmic pattern.

This solo passage, known to as a cadenza typically showcases the most ornate and virtuosic passage performed by the solo instrument throughout the composition. As the cadenza concludes, the orchestra resumes its presence, often bringing the movement to its culmination.

MC Cadenza Mono is a true mono cartridge for playing mono microgroove vinyl records.

Special Price $2,069.00 Regular Price $2,299.00
Brand

Warranty Period : 1 year

Warranty Period : 1 year

Enjoy authentic mono play-back

Accuracy level

Find your old records as well as new micro groove mono records and experience the Cadenza Mono!

The Cadenza Mono model is made with a Nude Fine Line stylus and a cylindrical aluminium cantilever. The stylus radius is r/R 8/40 µm.The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance. For easy use, the pins are connected so you get the same signal from both pairs of connecting pins.

Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback the sound is relaxed, homogeneous, and moderate.

Push the performance

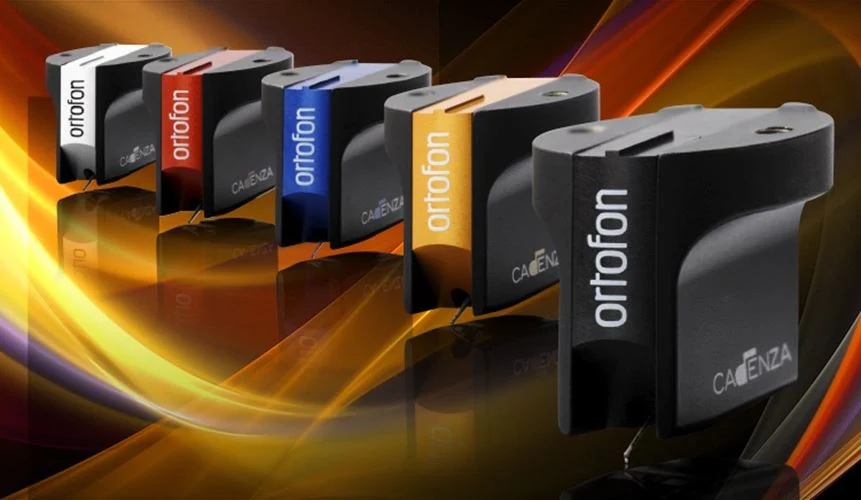

The Cadenza series

At Ortofon, we perpetually seek fresh technologies to incorporate into our products, driving the advancement of current technologies. This commitment ensures the attainment of the utmost performance and quality. The Kontrapunkt models and MC Jubilee have set benchmarks in the market, emerging as some of our most sought-after cartridges. Yet, in spite of this success, Ortofon has chosen to embark on the development of a novel cartridge series that aspires to even greater heights.

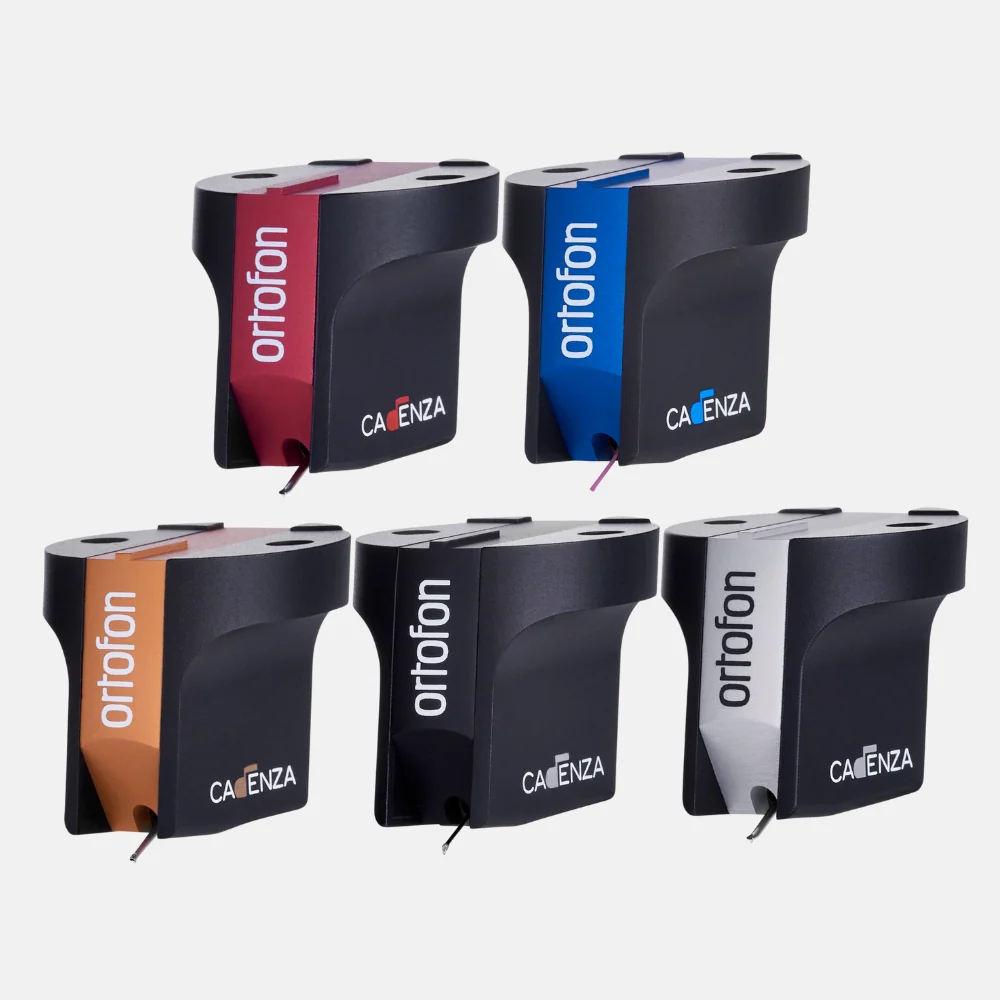

Each of the five Cadenza Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations.

The MC Cadenza Mono is a true mono cartridge for playing mono microgroove vinyl records.

Specification
GENERAL SPECIFICATIONS
Operating Principle
  • MC (Moving Coil)
Application
  • Mono Microgroove Vinyl Records
Output Configuration
  • Pure Mono
  • Identical Signal from Both Output Pin Pairs
Mounting
  • 1/2" Mount
Cartridge Body
  • Aluminium
  • Stainless Steel
Coil Wire
  • 6NX High-Purity Silver
Colour
  • Natural / Black
PERFORMANCE
Output Voltage
  • 450μV (1kHz, 5cm/s)
Frequency Range
  • 20Hz - 50kHz (-3dB)
Frequency Response
  • 20Hz - 20kHz (+3/-1dB)
Tracking Ability
  • 70μm (315Hz, recommended tracking force, typical)
Dynamic Compliance
  • 12μm/mN (lateral)
STYLUS AND CANTILEVER
Stylus Type
  • Nude Fine Line Diamond
Stylus Tip Radius
  • r/R 8/40μm
Cantilever
  • Cylindrical Aluminium
Tracking Angle
  • 20°
Tracking Force
  • 2.2g - 2.7g Range
  • 2.5g Recommended
ELECTRICAL CHARACTERISTICS
Internal Impedance
  • 5Ω DC Resistance
LOAD REQUIREMENTS
Recommended Load Impedance
  • 50Ω - 500Ω
DIMENSIONS AND WEIGHT
Dimensions
  • 18.5mm Width
  • 19.5mm Depth
  • 18.0mm Height
Mounting Centres
  • 12.7mm
Weight
  • 10.7g
