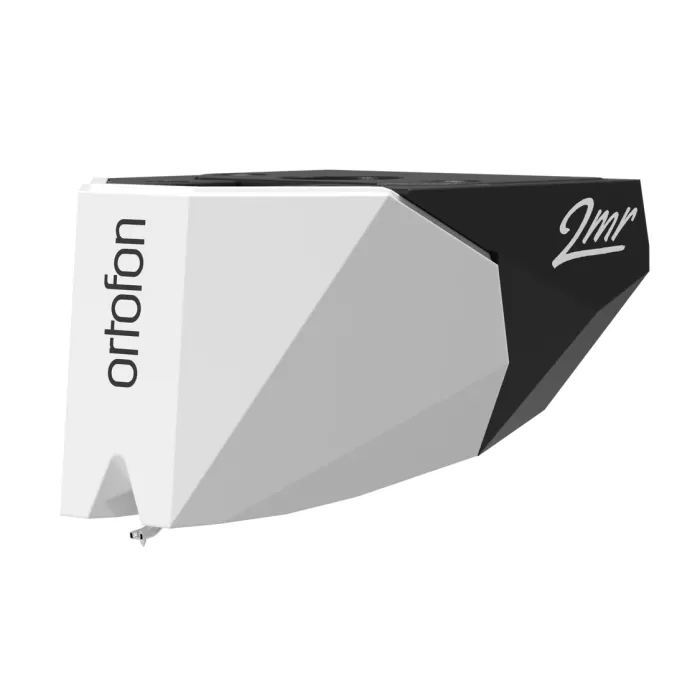

ORTOFON 2MR MONO CARTRIDGE

Moving Magnet Cartridge with low profile body to suit Rega tonearms.


For optimized fit on low-profile tonearms and turntables

Special Price $495.00 Regular Price $549.00

Step into an Era of Authenticity with the 2MR Mono Cartridge, thoughtfully crafted with a stylus' tip that features an R 18µm Nude Spherical diamond to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.

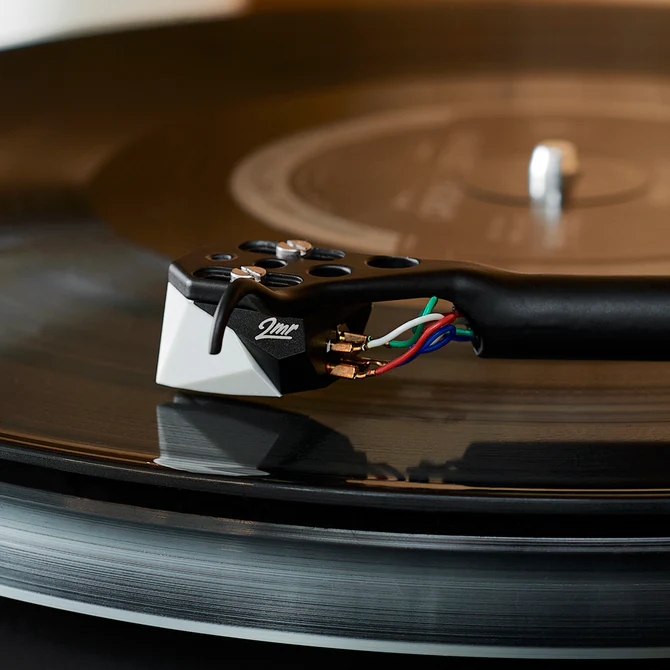

Ortofon 2MR Mono features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

Stylus - Brings out the best in your mono records

Embark on an Elevated Mono Experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond. This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.

Output - Enjoy true mono

The 2MR Mono features a high-performance motor system with quad coils and Ortofon’s very own invention: the split pole pins. The 2MR Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Compatibility - Designed for optimized fitting on low-profile turntables

The 2MR Mono 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.





Specification
Output voltage at 1 kHz, 5cm/sec
4 mV
Frequency response 20 Hz - 10 kHz
+ 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force
70 µm
Compliance, dynamic, lateral
18 µm/mN
Stylus tip radius
R18 µm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Tracking angle
20°
Internal impedance, DC resistance
700 Ohm
Cartridge colour
Black/White
Cartridge weight
6 g
Reccomended load resistance
47 kOhm
Internal inductance
350 mH
Stylus colour
White
