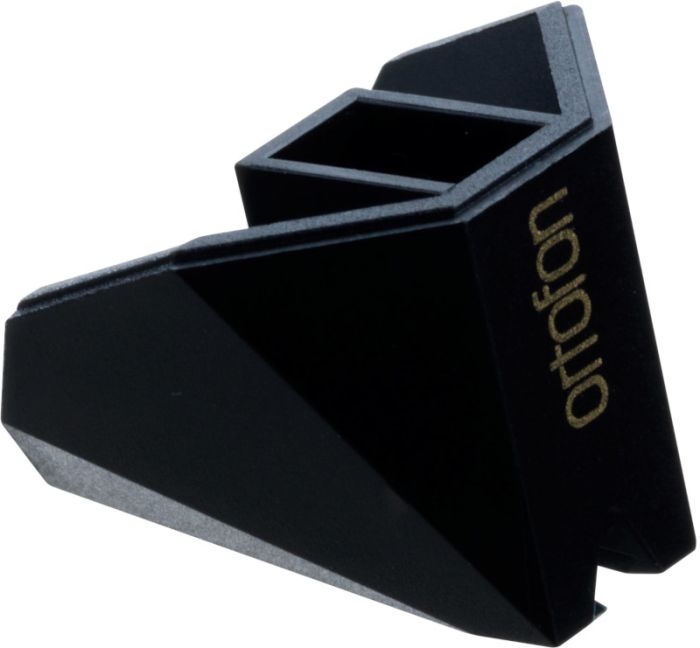

ORTOFON 2M Black Replacement Stylus

More Views

ORTOFON 2M Black Replacement Stylus

Regular Price: $699.00

Special Price $625.00

Warranty Period: 3 months Sold as: 1 Unit
Overview

Details

Physically 2M styli will fit on alternative 2M cartridges bodies, but 2M Series cartridges’ engines, coils and magnets configurations are not quite identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78.

Specifications

Details

Frequency Range

  • 20Hz - 31,000Hz

Frequency Response

  • 20Hz - 20,000Hz +2/-0dB

Tracking Ability at 315Hz at recommended tracking force

  • 80 µm

Compliance, dynamic, lateral

  • 22 µm/mN

Stylus Type

  • Nude Shibata

Stylus Tip Radius

  • r/R 6/50 µm

Equivalent Stylus Tip Mass

  • 0.5 mg

Tracking Forcce Range

  • 1.4-1.7 g (14-17 mN)

Tracking Forcee Recommended

  • 1.5 g (15 mN)

Tracking Angle

  • 20°
