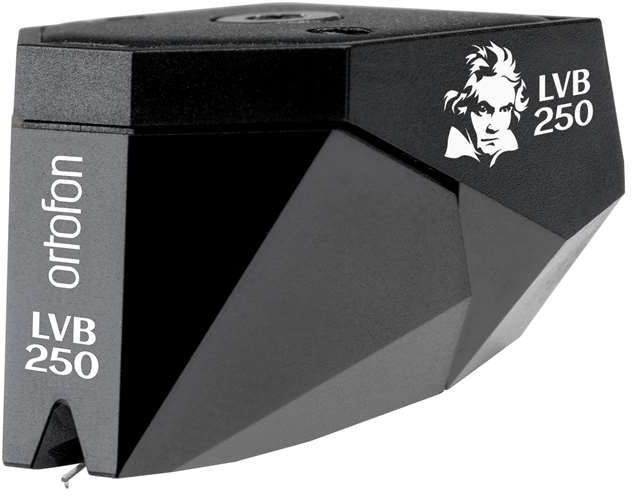

ORTOFON 2M Black LVB250 Moving Magnet Cartridge (Limited Edition)

The new Ortofon Exclusive 2M Black LVB 250 model

Special Price $1,484.00 Regular Price $1,649.00

To commemorate the 250th anniversary of the birth of Ludwig van Beethoven, we announce the release of the 2M Black LVB 250 Exclusive Model. The 2M Black flagship from Ortofon is widely acknowledged as being one of the best MM cartridges on the market, but at Ortofon being the best doesn’t mean that we can’t get better.

Stock availability around late April

Benefits of high-end materials

The 2M Black LVB 250 has been recreated from the concepts of its predecessor, the 2M Black, but the 2M Black LVB 250 performance takes one step further to enhance the cartridge’s capabilities and technical excellence.

The 2M Black LVB 250 uses a Nude Shibata diamond on a Boron cantilever, the combination known from the acclaimed MC Cadenza Black cartridge.

The Nude Shibata stylus’s slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies.

The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed and responsiveness.

The new rubber compound formula

To attain an optimal interaction between compliance and damping, a new rubber compound for the suspension system has been developed.

The new rubber compound formula is based on the Multi Wall Carbon Nano Tubes (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which ensure better damping and improve the overall performance of the cartridge.

Also, the new MWCNT rubber compound allows for more environmental-friendly production, adding further benefit. The MWCNT powder is applied in a rubber polymer matrix and not in a powdered form, which makes the production process more clean, non-polluting and energy saving.

Specification

Output voltage at 1000 Hz, 5cm/sec

  • 5 mV

Channel balance at 1 kHz

  • < 1 dB

Channel separation at 1 kHz

  •  > 27 dB

Channel separation at 15 kHz

  • 15 dB

Frequency response

  • 20-20.000 + 2 / - 1 dB

Tracking ability at 315Hz at recommended tracking force

  • 80 µm

Compliance, dynamic, lateral

  • 22 µm/mN

Stylus type

  • Nude Shibata

Stylus tip radius

  • r/R 6/50 µm

Cantilever material

  • Boron

Tracking force range

  • 1.5-1.7 g (15-17 mN)

Tracking force, recommended

  • 1.6 g (16 mN)

Tracking angle

  • 20°

Internal impedance, DC resistance

  • 1.2 kOhm

Internal inductance

  • 630 mH

Recommended load resistance

  • 47 kOhm

Recommended load capacitance

  • 150-300 pF

Cartridge colour, body/stylus

  • Black/Black

Cartridge weight

  • 7.2 g

Replacement stylus unit

  • 2M Black LVB 250

Interchangeable styli units

  • 2M Black
  • 2M Bronze

Stylus lifetime

with proper care we find that up to 1000 hours is possible without degradation of performance.
