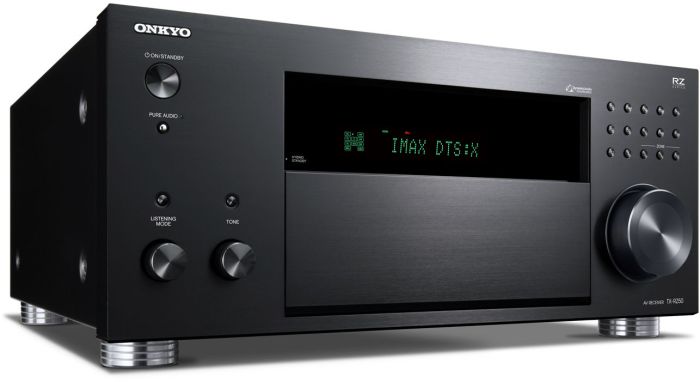

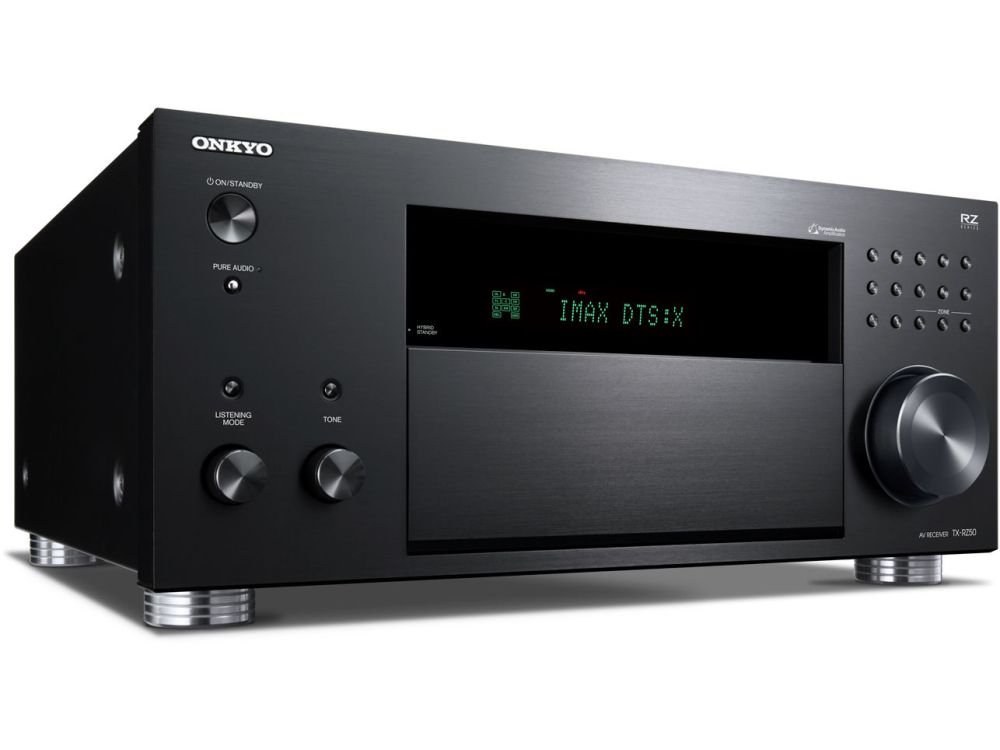

ONKYO TX RZ50 9.2 Channel AV Receiver

9.2-Channel THX Certified AV Receiver

$2,699.00

As a part of our dealer agreement this product is unavailable for online sale.
  Please CONTACT US or Call Now for purchasing options.

Please Note: the image provided by Onkyo shows a dedicated set of speaker terminals for Zone 2. This is for the North American models only. The user manual for the RZ50 does mention that Zone 2 can be run even though 9 channels are assigned to the main zone, where it will disable Height 1 speaker terminals when Zone 2 is active, but as the AU/Asia model combines the Zone 2 output into the Height 1 speaker terminals, that function is not available for the local models. As with most other brands of 9 channel (11 channel processing) home theatre receivers available in the Australian market, Zone 2 will need its own power amplifier if 9 channels are assigned to the main zone.

With up to 11.2 channels of processing, DIRAC Live® Room Correction, and the coveted THX Certification, the Onkyo TX-RZ50 AV Receiver is a best-in-class home theater powerhouse. The TX-RZ50 delivers enormous power on-demand to highlight every nuance of the music, movies, and games you love.

Groundbreaking DIRAC Live® Room Correction technology offers improved musical staging, clarity, dialog, and deeper bass right out of the box, ensuring that your immersive surround experience is delivered with the highest fidelity.

Featuring three HDMI-out options, the TX-RZ50 AV receiver delivers uncompressed HDMI 8K/4K transfer at 40 Gbps, increasing the bandwidth over its predecessors and taking full advantage of the capabilities of Next-Gen gaming consoles. Put through thousands of tests to obtain the coveted THX Certification, this SMART AV Receiver™ delivers a mind-blowing movie, music, and gaming experience to your home.

DIRAC LIVE® ROOM CORRECTION

State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS * application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers’ full potential in any listening space and delivers a uniquely pristine listening experience.

* Device must be connected to the internet and the same network as your AVR.

ULTIMATE 4K GAMING EXPERIENCE

4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. The TX-RZ50 supports higher performance from streaming devices like the latest Apple TV.

11.2-Channel Processing

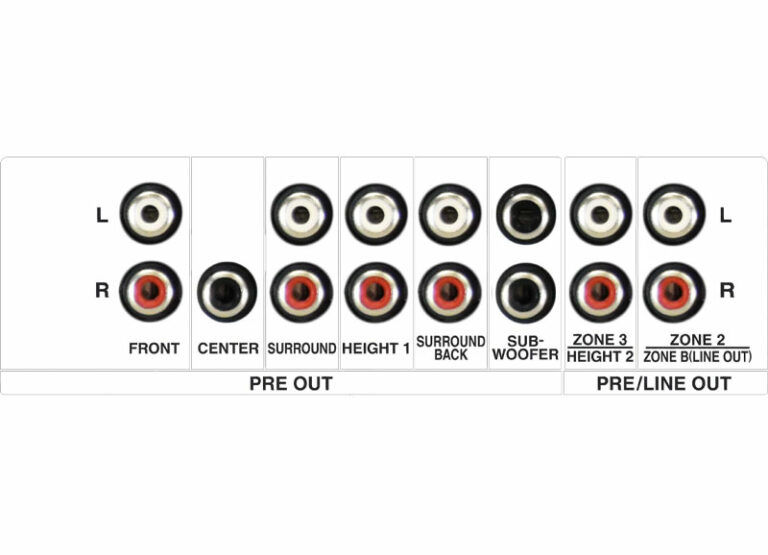

The TX-RZ50 features up to 11.2 channel processing and pre-outs for 7.2.4 system layouts, making it an ideal choice for your premium home theater setup.

THX® CERTIFIED

In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-RZ50 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.

IMAX® Enhanced Mode

IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Onkyo’s IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.

Discrete Zone 2 HDMI Switching

Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.*

*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.

HDMI® 2.1 WITH 8K

HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.

BUILT-IN MULTI-ZONE STREAMING AND VOICE CONTROL

The Onkyo TX-RZ50 9.2-Channel THX® Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.**

*A third-party AI device is required for voice commands - sold separately

***8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used

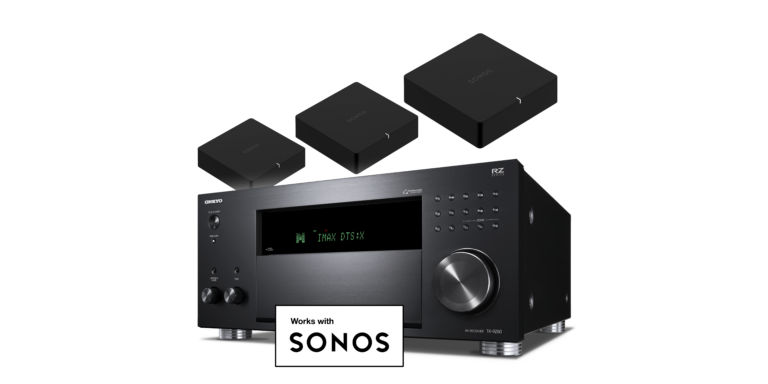

Works with Sonos Certified

This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*. The TX-RZ50 can work with up to three Sonos Ports---one for each of three independent zones---each playing a completely different streaming service from Sonos Radio.

*Sonos Port required and sold separately.

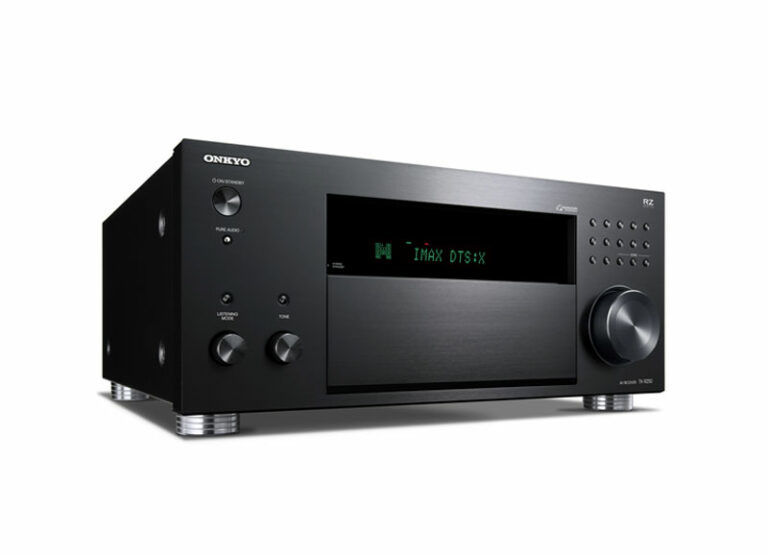

SLEEK APPEARANCE

The TX-RZ50 AV receiver features a sleek aluminum drop-down panel to conceal the buttons and controls for an upgraded, more luxuriant appearance.

BI-DIRECTIONAL BLUETOOTH® WIRELESS TECHNOLOGY

This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.

BUILT-IN STREAMING SERVICES

Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.

READY FOR DTS PLAY-FI®

DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.

Features
  • 250 W/Ch THX® Certified Select RZ Series Dynamic Audio Amplification

  • IMAX® Enhanced certified for immersive signature sound by DTS:X®

  • 11.2-ch processing and pre-outs for 7.2.4 layouts

  • Supports Dirac Live® Room Correction (20Hz - 20kHz)

  • AccuReflex phase-matching solution for Atmos-enabled speakers

  • SMART AV Receiver™:

    -Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services

  • Works with Hey Google or Alexa (Google home devices and Amazon Echo devices sold separately)

  • Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard

  • HDMI® inputs

    -Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support 8K/60B and 4K/120AB. Front HDMI Input supports up to 4K/60 (HDMI 2.0).

  • HDMI 2.1 features that are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).

  • HDMI Sub/Zone 2 Out for media transmission to a second display

  • Send or receive audio via Bluetooth® wireless technology:

    RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD

  • Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines

  • 5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playback

  • Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks

Specification
Amplifier

Power Output

  • 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven)
  • 120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)

Dynamic Power

  • 250 W (3 ohms, Front)
  • 220 W (4 ohms, Front)
  • 130 W (8 ohms, Front)

Total Harmonic Distortion + Noise

  • 0.08% (20 Hz–20 kHz, half power)

Input sensitivity and impedance

  • 200 mV rms/47 k-ohms (Line)
  • 3.5 mV rms/47 k-ohms (Phono MM)

Rated RCA output level and impedance

  • 1V rms/470 ohms (Subwoofer pre-out)
  • 200 mV rms/470 ohms (Zone 2/Zone B line-out)

Frequency response

  • 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)

Tone control

  • ±10 dB, 20 Hz (Bass)
  • ±10 dB, 20 kHz (Treble)

Signal-to-noise ratio

  • 106 dB (Line, IHF-A)
  • 80 dB (Phono, IHF-A)

Speaker impedance

  • 4–16 ohms

Tuner

Receiving Bands

  • AM
  • FM

Preset Memory

  • 40 Station Presets

General

Power Supply Requirements

  • 240V AC, 50Hz

Power Consumption

  • 0.1W Standy
  • 75W Idle
  • 850W PEAK

Dimensions

  • 435mm Width
  • 201.5mm Height
  • 398mm Depth

Weight

  • 14kg

Included Accessories

  • Power cable
  • Indoor FM Antenna
  • AM Loop Antenna
  • Speaker Setup Microphone
  • Quick Start Guide
  • Remote Control
  • 2x AAA Batteries
