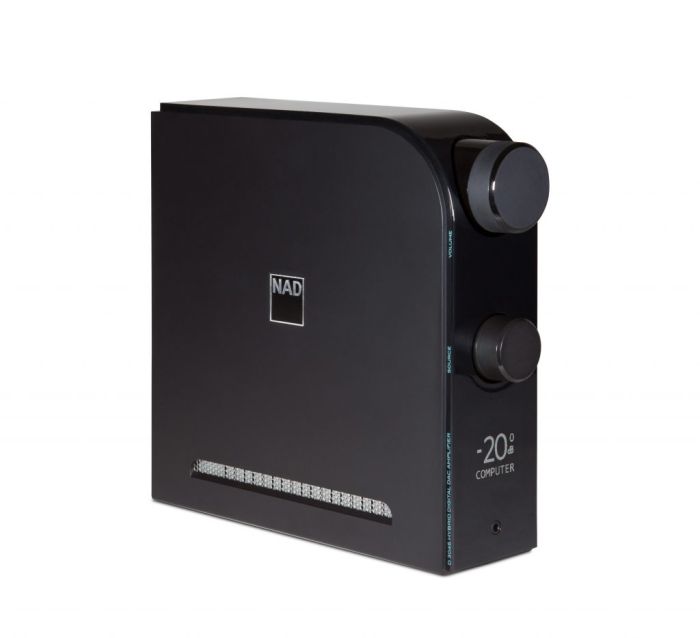

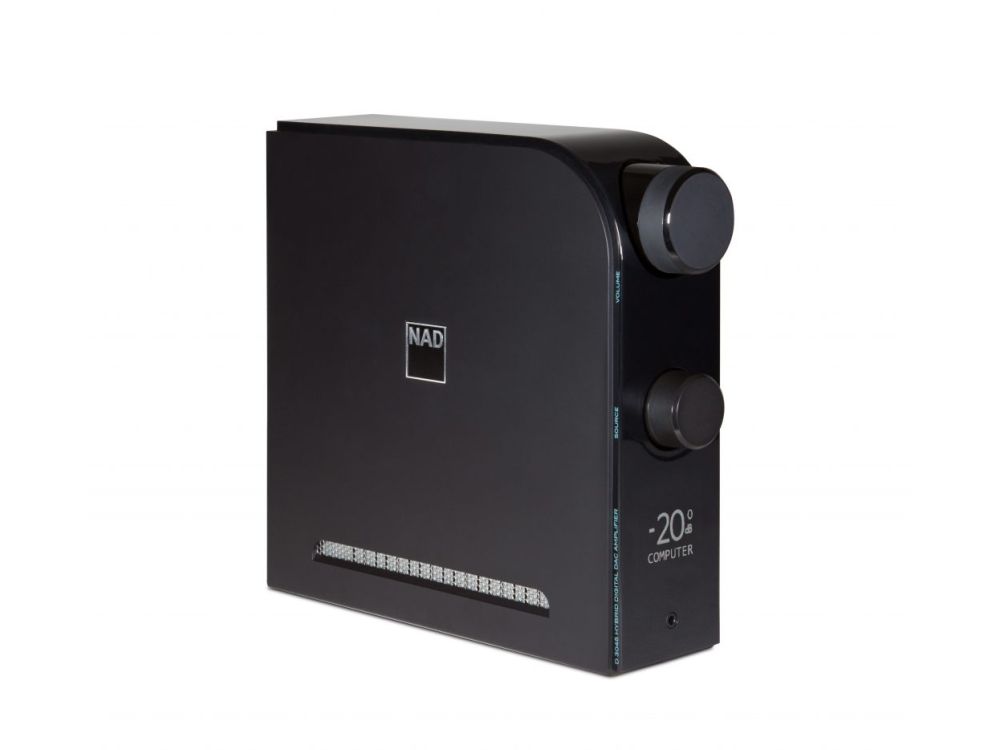

NAD D 3045 Hybrid Digital DAC Amplifier

A desktop size Hybrid digital amplifier with 60W per channel and superb connectivity. Designed to appeal to the most ardent hi-res digital and vinyl enthusiasts, the D 3045 has it all: HybridDigital 60W per channel amplifier, Asynchronous USB 24/192 Input, support for MQA and DSD, two way Bluetooth powered by aptX HD and a high quality moving magnet phono stage, all in a compact size that can be used either vertically or horizontally.

$1,399.00

The NAD D 3045 is everything a modern amplifier ought to be; compact, energy efficient, powerful, silent, high-resolution enabled and packed with cutting-edge features like DSD and MQA playback. NAD’s expertise in both digital and analogue engineering is clearly evident in this high performance, flexible yet affordable amplifier.

Featuring a 2 x 60W per channel HybridDigital amplifier in a small form factor, the D 3045 will astound many for its ability to drive difficult loudspeakers to satisfying levels without adding noise or distortion.

Calling on NAD’s decades of leadership in Hi-Res digital audio, the D 3045 boasts exceptional connectivity including an Asynchronous USB 24/192 Input. The D 3045 supports both MQA and DSD playback. MQA decoding is available on all digital inputs in addition to BluOS streaming content.

The D 3045 can faithfully and accurately reproduce the full spectrum of sound encapsulated on the studio master. Until now, music-loving consumers have only been able to hear an edited version of the full fidelity because the delivery systems, be it tape, vinyl, or CD, did not have the capacity to hold all the information contained in the studio master recording. With hi-res downloads and streaming, we can now enjoy exactly the same experience the artist heard in the studio when the recording was first made. Yet, 90% of the products on the market today do not have the full capability required to experience this new higher fidelity. The D 3045 features two-way wireless Bluetooth capability that is powered by aptX HD for the highest possible sound quality available. Users can easily stream music from smartphones, tablets and laptops or can also use its integrated two-way Bluetooth feature and effortlessly stream music that is playing on the amp to any pair of Bluetooth enabled headphones. aptX HD is becoming more and more popular for its remarkable sound quality and low power consumption compared to Wi-Fi.

Drawing on their decades of analogue know-how, vinyl lovers will be impressed that NAD engineers designed the phono stage for exceptional performance, featuring accurate RIAA equalization, ultra-low noise and an infrasonic warp filter.

Also included in the D 3045 is a full-range preamp output as well as a subwoofer output for added connection flexibility. NAD also includes a premium quality headphone jack on the front panel that is connected to a dedicated, high current, low impedance headphone amplifier that will drive all but the most power hungry headphones, including planar magnetic designs.

Beyond impressive performance, a major focus for NAD has been finding new technology that can improve musical performance while consuming less power to operate and using fewer non-renewable resources to manufacture. The D 3045 is compact, environmentally sensitive and runs cool. NAD believes technical prowess and eco-friendliness is not only desirable but achievable. Its highly efficient design wastes less energy, resulting in extended component life an increased reliability. Standby power consumption is <0.5W.

Supplied with an IR Remote Control for convenience.

Features

2 x 60W HybridDigital Amplifier
Two-Way Bluetooth powered by Qualcomm aptX HD audio
Asynchronous USB 24/192 Input supports MQA and DSD
HDMI Audio Return Channel Input
Coax and Optical Input
MM Phono and Line Input
High performance Moving Magnet Phono Stage added for vinyl lovers to complement digital connectivity
Preamp and Subwoofer Outputs for additional connection flexibility
Energy-Saving – new design technology consumes less power to operate
Compact footprint – can be used almost anywhere, either vertically or horizontally

Specification

THD (20Hz – 20kHz) <0.003% at 2V out
Signal-to-Noise Ratio >100dB (IHF, A-weighted, ref. 500mV out, unity gain)
Channel separation >85dB (1kHz) >80dB (10kHz)
Input impedance (R and C) 47kohms + 220pF
Maximum input signal >5.5Vrms (ref. 0.1% THD)
Output impedance - 400 Ohms
Input sensitivity - 82mV (ref. 500mV out, Volume maximum)
Frequency response ±0.2dB (20Hz – 20kHz)
Maximum voltage output – IHF load >4V (ref. 0.1% THD)
