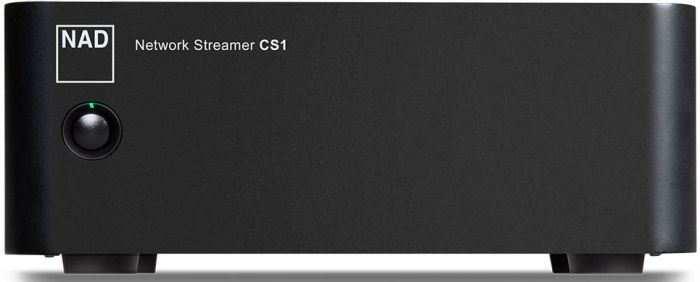

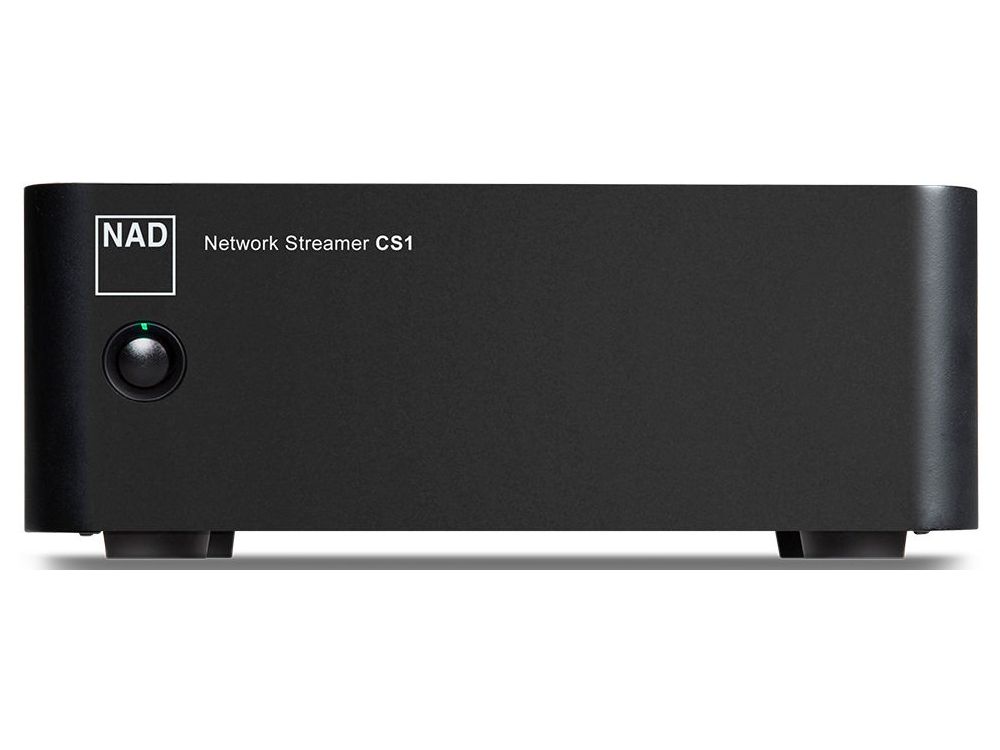

NAD CS1 Endpoint Network Streamer

NAD’s affordable CS1 Endpoint Network Streamer lets you add music streaming capability to any stereo or home-theatre system. Or you can configure a low-footprint music system for your den or home office by connecting the CS1 to a pair of powered speakers. The CS1 supports the most popular network streaming and casting protocols, including Apple AirPlay 2, Chromecast, Spotify Connect, Tidal Connect, DLNA mobile and computer apps*, and Roon, so you can control playback with the music apps you use every day. The CS1 employs audiophile-grade components and can play high-resolution audio, up to 24-bit/192kHz.

$599.00

Plug and Play

A compact, minimalist design, the NAD CS1 has a pair of line-level analogue RCA outputs for connection to a stereo receiver, integrated amp, preamplifier, or a pair of powered speakers. Alternatively, you can use the CS1’s optical or coaxial output to send digital audio to an AV receiver, external DAC, or a pair of powered speakers with digital input, at up to 24-bit/192kHz resolution.

You can connect the CS1 to your home network via Wi-Fi or hardwire its LAN Ethernet port to your network router or an access point, or use Bluetooth® to pair the CS1 with your mobile device.

Stream Your Way

You don’t have to install special apps to play music through the NAD CS1 Endpoint Network Streamer. Using Bluetooth, you can stream audio from any app on your smartphone, tablet, or computer.

You’ll get even better sound via Wi-Fi or Ethernet. The CS1 supports AirPlay 2, so you can stream CD-resolution audio from any app on an iPhone, iPad, or Mac, or from an iTunes library on a Windows PC. With Chromecast, you can choose the music you want to hear in any Cast-enabled app on a mobile device or personal computer, then transfer playback to the CS1 at up to 24-bit/96kHz resolution.

Spotify and Tidal subscribers can cue up music in the apps for those services, then transfer playback from their device to the CS1. Roon subscribers can play music from their digital libraries and from streaming services supported by Roon.

Premium Sound

The CS1 features an advanced differential digital section based on Texas Instruments’ PCM5141 DAC, a design known for its wide dynamic range, low noise floor, and immunity to clock jitter. It supports resolution up to 24-bit/192kHz and has MQA pass-through support for both digital outputs, enabling full decoding and rendering by a compatible external DAC for playing Master Quality Authenticated music.

Streaming doesn’t get easier than this. Pair the NAD CS1 Endpoint Network Streamer with your mobile device or connect it to your home network, then use your favorite apps to choose the music you want to hear. Then sit back and enjoy glorious, high-fidelity sound.

Features
  • Compact, minimalist design
  • Built-in Bluetooth
  • Dual-band Wi-Fi plus LAN Ethernet port
  • Stereo analogue, optical digital, and coaxial digital outputs
  • Premium differential DAC design based on Texas Instruments PCM5141 DAC, with support for 24-bit/192kHz high-resolution audio
  • High-resolution music streaming from Tidal
  • Apple AirPlay 2 support allows CD-resolution streaming from any audio app on an iPhone, iPad, or Mac
  • Chromecast support allows playback at up to 24-bit/96kHz resolution from any Cast-enabled app on a smartphone, tablet, or personal computer
  • Spotify Connect and Tidal Connect support lets users cue up music on a smart device, then transfer playback to the CS1
  • DLNA support allows streaming at up to 24-bit/192kHz resolution from any DLNA-capable music app.*
  • Roon subscribers can stream audio to the CS1 from their personal libraries and online services supported by Roon

* Certification in process

Specification

AUDIO

THD + N (20 Hz – 20 kHz)

<0.03% 20-20 kHz -1dBFS output

Signal-to-Noise ratio

-94dB (ref 2V)

Frequency response

20-20 kHz +/-0.3dB

50 kHz -3dB

Native sampling rate

Up to 192 kHz

Bit depth

16-24

Supported audio file format

  • LPCM
  • MP3
  • AC3
  • OGG Vorbis
  • HE-AAC
  • MQA
  • WMA

Supported 3rd party service provider

  • Spotify Connect
  • Tidal Connect
  • Apple AirPlay 2
  • Google Chromecast
  • DLNA
  • Roon

DAC

TI PCM5254

Processor

ARM® Cortex™ -A53, Quad-Core

1.5GHz per core

CONNECTIONS

Power

AC adapter

Input: 100-240V AC 0.3A

Output: 5V DC 1A

Network connectivity

Ethernet RJ45 100 Mbps

Wi-Fi 5 (802.11ac 2.4GHz/5 GHz)

DLNA/UPnp*

Bluetooth

Bluetooth 5.0

BT Profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP

NFC

NFC for easy Bluetooth connection

12V Trigger Out

3.5mm Mini-jack x 1

Analog Out

RCA x 1

Coaxial Out

RCA 75 ohms

Optical Out

TOSLINK x 1

USB IN

USB C for AC adapter

GENERAL

Status Indicator

Front Panel LED

Function Button

Front Panel Function Button

Power Consumption

0.5W Network Standby

Finish

Black

DIMENSION AND WEIGHT

Dimensions

  • 140mm Width
  • 140mm Depth
  • 55mm Height

Weight

1.5kg Net

1.7kg Shipping
