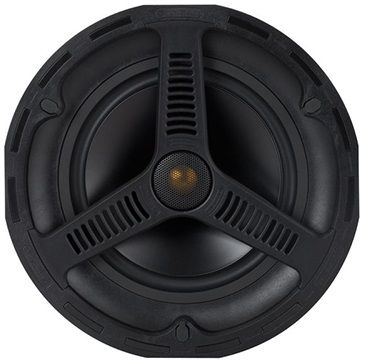

MONITOR AUDIO AWC280 All Weather Ceiling Speaker (each)

More Views

MONITOR AUDIO AWC280 All Weather Ceiling Speaker (each)

Regular Price: $499.00

Special Price $449.00

Warranty Period: Limited Lifetime (Domestic) Sold as: 1 Unit
Overview

Details

Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC280 comprises a stylish two-way 8” C-CAM bass driver.

  • Quick and Easy Installation
  • High Performance C-CAM bass and high frequency drivers
  • Stainless steel "trimless" grille - strong and resistant to corrosion
  • Non-ferrous Samarium Cobalt magnets for grille attachment - Prevent Rust and Corrosion
  • IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-Corrosion
  • Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation
  • EPDN barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
  • Gold plated push terminals with silicon cover
  • stainless fixing screws with silicone covers
  • Tweeter level attenuation (internal) - set prior to installation
  • Applications: Pool rooms, Bathrooms, Marine Deck, Universal outdoor installation.
Specifications

Details

Frequency Response

  • 50 Hz — 30 kHz

Sensitivity (1W @ 1M)

  • 89 dB

Nominal Impedance

  • 8 ohms

Maximum SPL

  • 109 dBA

Power Handling (RMS)

  • 100 W

Recommended Amplifier Requirements

  • 20 — 100 W

Drivers

  • 8" C-CAM cone bass driver
  •  1" C-CAM Gold Dome tweeter (fixed angle)

Controls

  • HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation

Adjustment Controls

  • 2 x (1 pair) Gold plated push style terminal

Overall Diameter (Including Grille)

  • 285 mm (111/4")

Overall Depth (Including Grille)

  • 102.5 mm (41/32")

Cut-Out Hole Diameter

  • 247 mm (93/4")

Mounting Depth

  • 97.55 mm (37/8")

Optional Square Grille (Outer Dimensions)

  • 285 x 285 mm (111/4")

Fixing Type

  • 3 position Tri-Grip dog leg fixings

Construction Material

  • Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)

Grille

  • SS430 Stainless Steel

Magnets

  • Samarium Cobalt

Operating Temperature Range

  • -34° to 79° C -29° to 174° F

Weight

  • 2.8 kg (6 lb 2 oz)
