Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Leading Technology

CINEMA 70s comes replete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

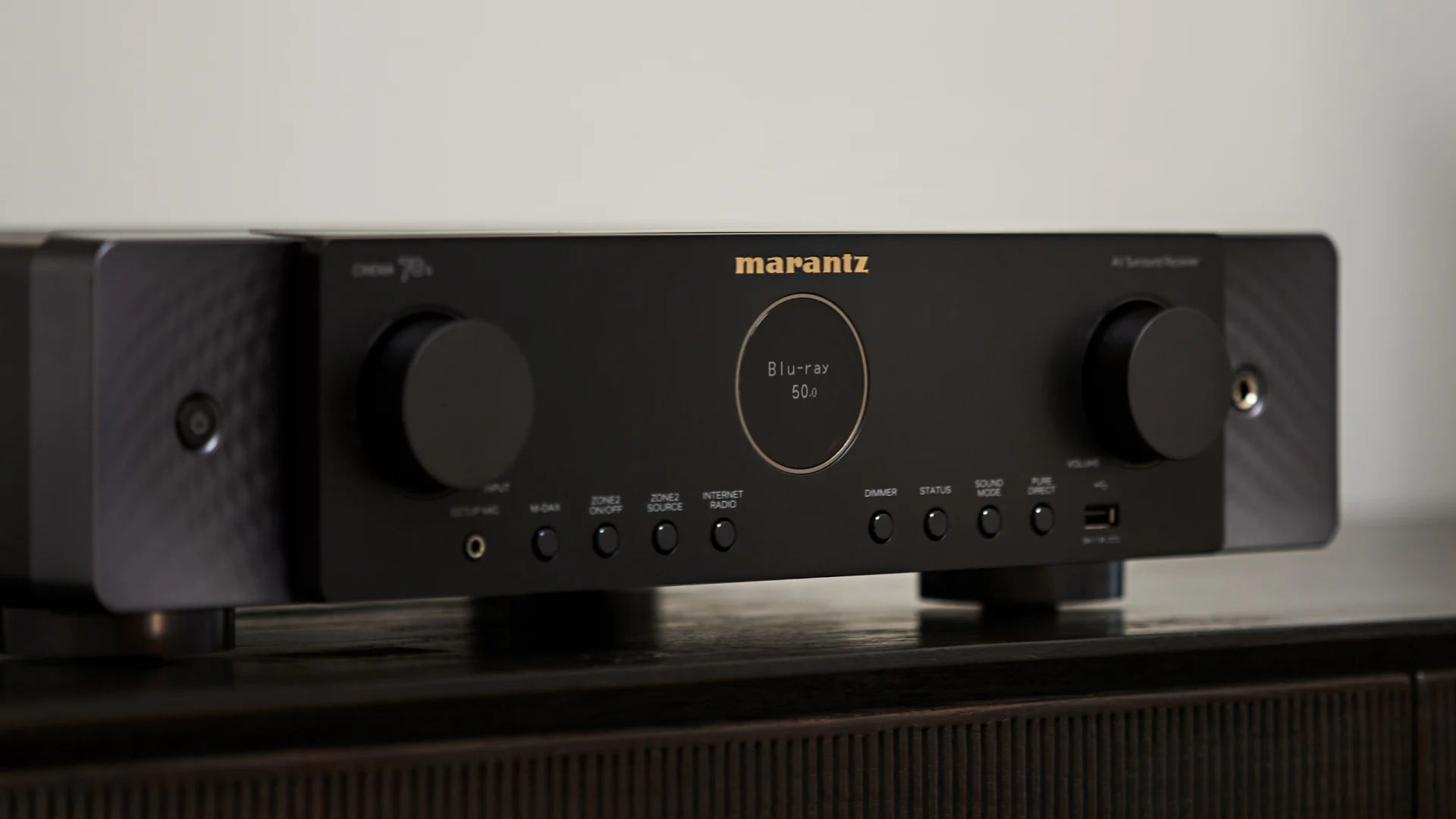

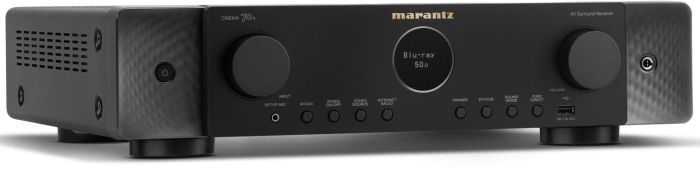

Exquisite Slimline Design

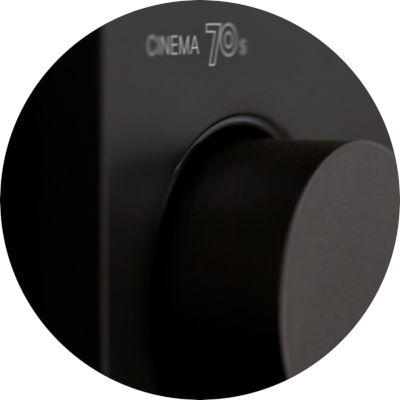

A modern expression of timeless design principles, CINEMA 70s features a highly compact slimline design, the iconic Marantz porthole, and symmetrical design.

Power Amplifier

Number of Powered Channels

• 7 Discrete Power Amplifiers

Power Output

• 50W (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
• 70W (6 ohm, 1 kHz, 0.7% 2ch Drive)
• 100W (6 ohm, 1 kHz, 10% 1ch Drive)

Amplifier Topology

• Class A/B

Bi-Amp Drive

• Assignable on 6th and 7th speaker terminals

Multichannel Surround Technologies

DTS

• DTS HD Master
• DTS:X
• DTS Neural:X
• DTS Virtual:X

Dolby

• Dolby TrueHD
• Dolby Atmos
• Dolby Atmos Height Virtualization
• Dolby Atmos Music
• Dolby Surround

Maximum Number of Processing (Pre-amp) channels

• 7.2ch

Inputs / Outputs

HDMI

• 6 Rear Inputs (3 support 8k)
• 1 Main Zone Output

Analogue

• 3 Stereo RCA Inputs
• 1 MM Phono Input (with ground terminal)

Digital

• 1 Optical Digital Input
• 1 Coaxial Digital Input

Pre-Out

• 7.2 Channels (RCA)
• 2 Subwoofer outputs

Speaker Terminals

• 7 Screw Type

Assignable Speaker Terminal Functions

• Bi-Amp Drive
• Speakers A/B
• 2nd Zone
• Rear Surround
• Height

USB Audio

• 1 Type A USB port on front panel for mass storage, accessible via HEOS app

Tuner

• FM with RDS

HDMI

HDMI Inputs

• 6 inputs on rear
• 3 inputs support 8k

HDCP

• HDCP2.3

HDMI Outputs

• 1 output supporting 8k for Main Zone

HDMI Upscaling

• Up to 8k

Video Dynamic Range Support

• HDR
• HLG
• Dolby Vision
• HDR10+
• Dynamic HDR

HDMI Features

• ALLM (Auto Low Latency Mode) Pass-Through for gaming
• VRR (Variable Refresh Rate)
• QFT (Quick Frame Transport)
• HDMI Pass-Through in Standby
• CEC
• Auto LipSync
• eARC

Acoustic / Room Correction

Audyssey

• MultEQ
• Dynamic EQ
• Dynamic Volume

Other Features

• Variable Crossover
• Optimized Bass Redirection

Music File Support

Lossy Formats

• MP3
• WMA
• AAC

Lossless Formats

• FLAC (up to 24bit/192kHz)
• WAV (up to 24bit/192kHz)
• ALAC (up to 24bit/192kHz)

DSD Audio

• 2.8MHz
• 5.6MHz

Gapless Playback

• FLAC
• WAV
• ALAC
• DSD

Compressed Audio Enhancer

• MDAX2

Network Audio Sharing

• Via HEOS

Streaming Services

Multi-Room and Streaming Platform

• HEOS by Denon
• Roon Tested

Streaming Services Supported

• AirPlay2
• Internet Radio provided by TuneIn
• Spotify Connect
• Pandora
• Amazon Music HD
• Tidal
• Deezer
• Soundcloud
• +More

Network Connectivity

Ethernet

• 1 Port
• RJ45

Wi-Fi

• Dual Band

Bluetooth

• 4.2
• Headphone Transmission

Smart Home Integration and Control

Voice Assistant Compatibility

• Alexa
• Google Voice Assistant
• Apple Siri (Homepod)

App for iOS and Android

• Marantz AVR App
• HEOS

Multi-Room and Streaming Platform

• HEOS

Multi-Room Zones on board

• 2

2nd Zone Audio Sources

• HDMI (2 channel)
• Optical/Coaxial (2 channel)
• Network Streaming / USB
• Analogue

2nd Zone Output

• RCA Pre-Out
• 6th and 7th channels assignable

Control Connectivity

• IP Control
• Web Control
• App Control

Other Control Features

• Marantz Remote Bus
• 12VDC Trigger Output
• HDMI Diagnostics

Others

Front Display

• Port Hole OLED

User Interface

• Advanced Graphical User Interface in 9 languages
• Setup Assistant
• Smart Select on Remote
• Firmware update via network/USB

ECO Functions

• ECO Mode
• Auto Power Off
• Sleep Timer

General

System Remote Control

• RC050SR

Power Consumption

• 250W

Dimensions

• 45cm W
• 38cm D
• 11cm H

Weight

• 8.8kgs

What's in the box

• Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
