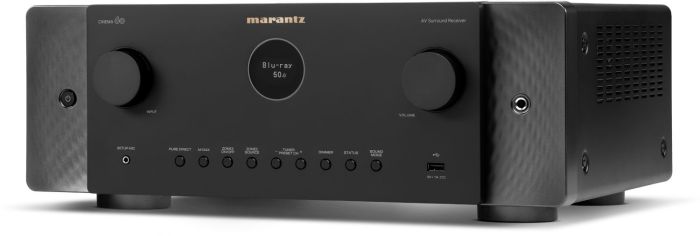

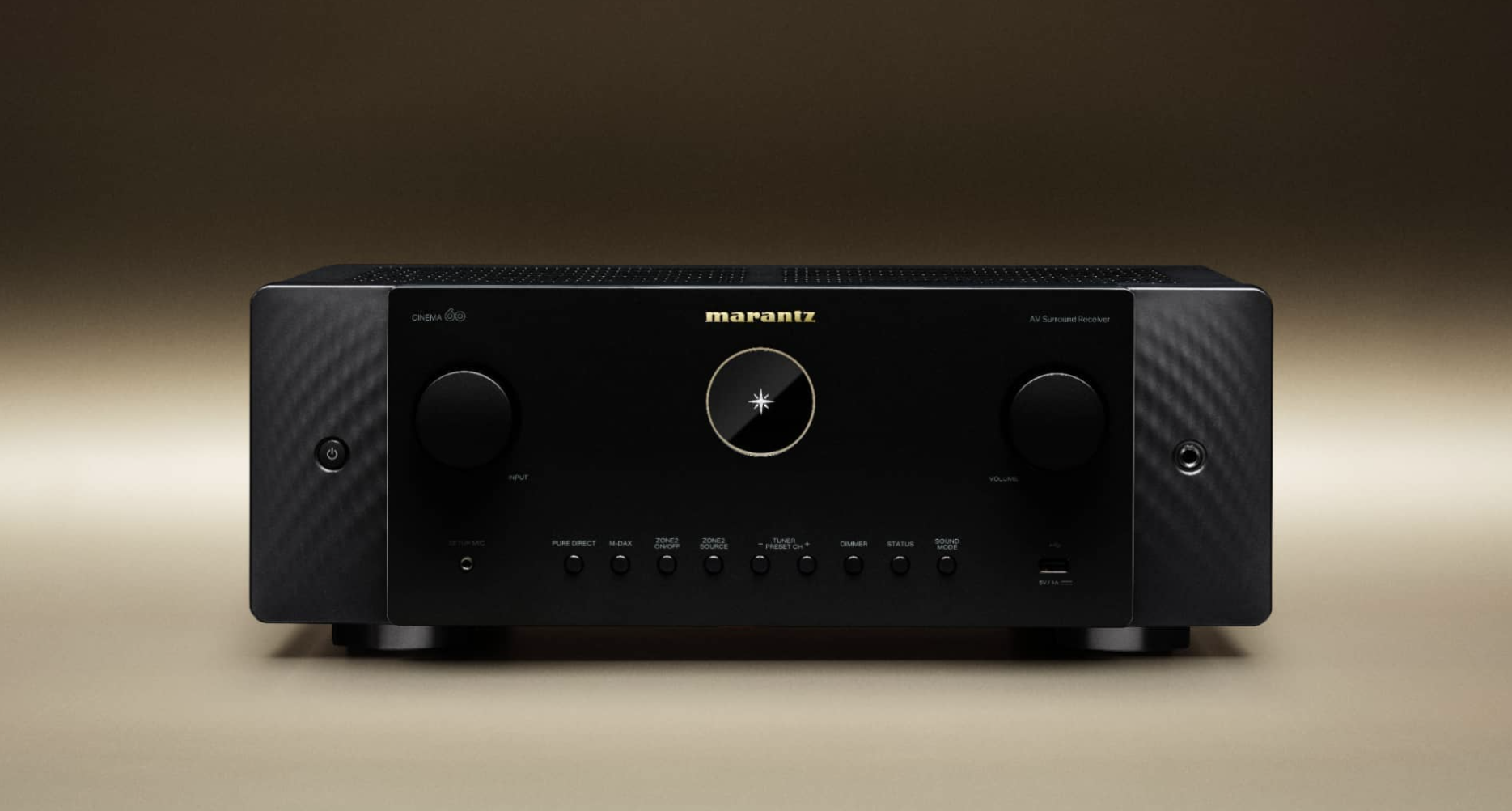

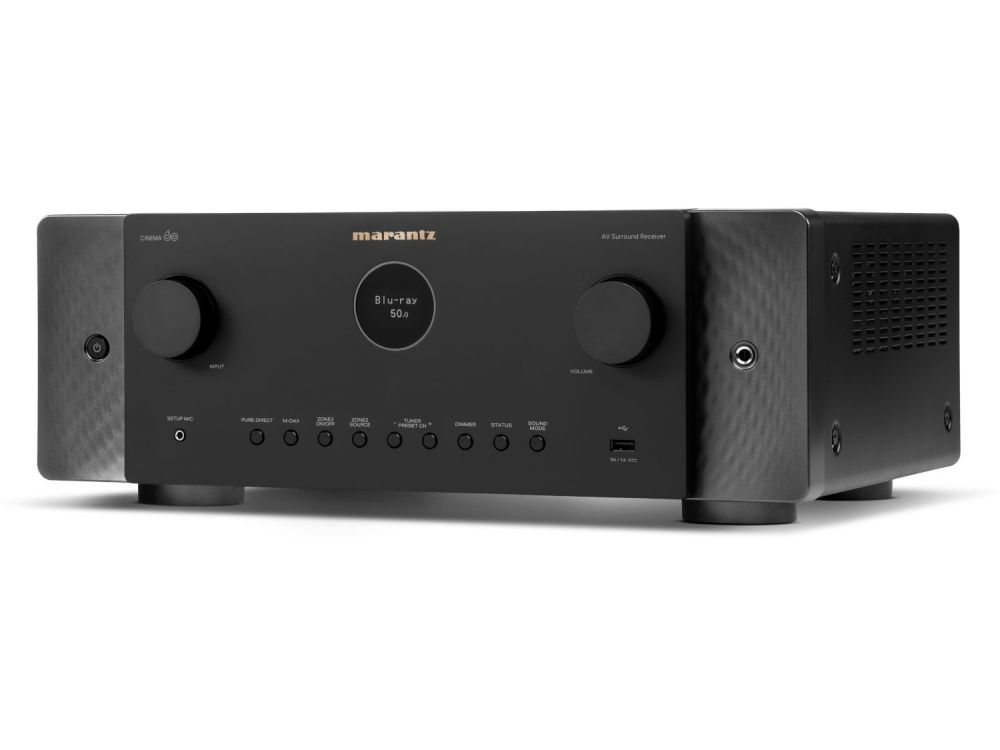

Marantz Cinema 60 7.2 AV Receiver

High-performance 7.2 channel AV receiver with 100 watts per channel amplification.

$2,600.00

High-performance 7.2 channel AV receiver with 100 watts per channel amplification, Dolby Atmos, DTS:X, 8K Ultra HD, and HEOS built-in streaming. Cinema 60 is the new standard of foundational luxury home theater.

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

Excellence Only Begins with Performance

Believe in Quality

Performance

The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Style

Excellence is heard and seen. CINEMA 60 features architectural design that can be featured or remain discreet in any luxurious environment.

Customizability

Thoughtfully selected connectivity options and fine- tuning ability allow you to make CINEMA 60 your own.

Effortless

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Features



Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Leading Technology

CINEMA 60 comes replete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite Slimline Design

A modern expression of timeless design principles, CINEMA 60 includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.

Connecting ZONE2

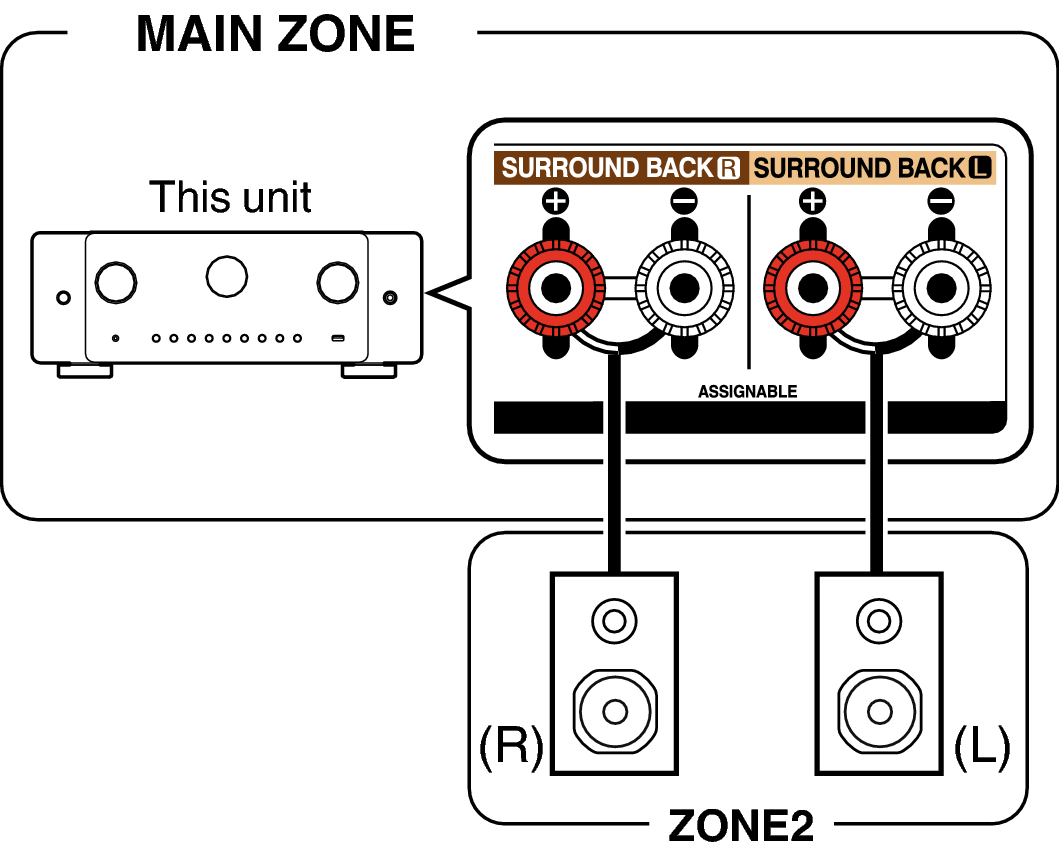

Connection 1: Connecting using a speaker output terminal

When “Assign Mode” is set to “ZONE2” in the menu, ZONE2 audio is output from the SURROUND BACK speaker terminal

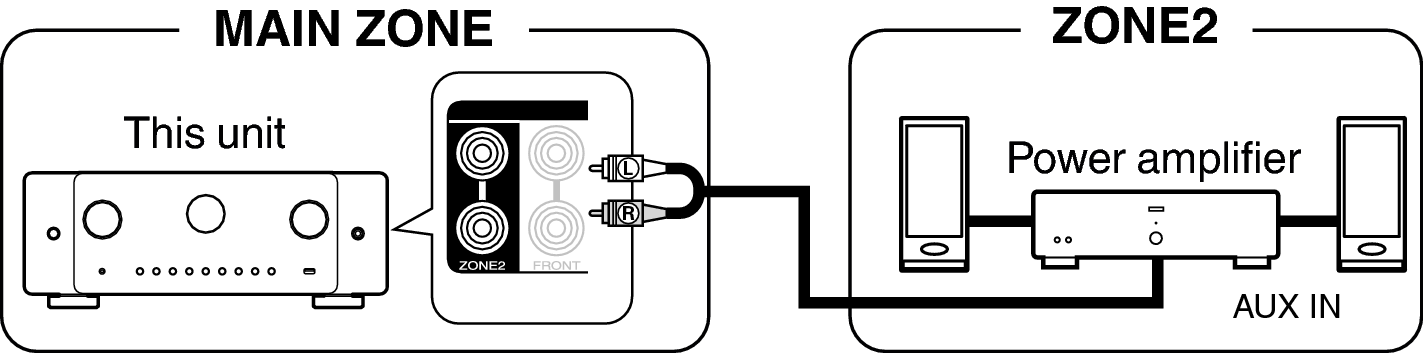

 Connection using an external amplifier (ZONE2)

The audio signals of this unit’s ZONE2 audio output connectors are output to the ZONE2 amplifiers and played on these amplifiers.

Specification

Power Amplifier

Number of Powered Channels

  • 7

Power Output

  • 100W (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
  • 140W (6 ohm, 1 kHz, 0.7% 2ch Drive)
  • 200W (6 ohm, 1 kHz, 10% 1ch Drive)

Amplifier Topology

  • Class A/B
  • Current Feedback
  • Pure Direct Mode
  • Hyper Dynamic Amplifier Modules

6th and 7th channels assignable options

  • 2nd Zone
  • Bi-Amp Drive (front channels)
  • Rear Surrounds
  • Dolby Atmos Height Channels
  • Speakers A/B

Multichannel Surround Technologies

DTS

  • DTS HD Master
  • DTS:X
  • DTS Neural:X
  • DTS Virtual:X

Dolby

  • Dolby TrueHD
  • Dolby Atmos
  • Dolby Atmos Height Virtualization
  • Dolby Atmos Music
  • Dolby Surround

Maximum Number of Processing (Pre-amp) channels

  • 7.1ch

Inputs / Outputs

HDMI

  • 6 Inputs (3 support 8K)
  • 2 Main Zone Outputs (8K)

Digital Audio

  • 2 Coaxial
  • 2 Optical

Analogue Audio

  • 4 Stereo RCA
  • 1 Phono MM
  • AM/FM Tuner

Network

  • RJ45 Ethernet
  • Wi-Fi
  • Bluetooth receiver
  • Bluetooth headphone transmission
  • USB-A port (front panel) for mass storage, accessible via HEOS app

Control

  • RS232
  • IR Flasher In
  • Marantz Remote Bus
  • 12V DC Trigger Out (150mA max, 3.5mm mono socket)

HDMI

Ports

  • 6 Inputs Total, 3 supporting 8K
  • 2 Main Zone Outputs (8K)

HDMI Features

  • HDCP2.3 Support
  • ARC / eARC
  • ALLM (Auto Low Latency Mode) pass-through for gaming
  • VRR (Variable Refresh Rate)
  • QFT (Quick Frame Transport)
  • HDMI Pass-Through in Standby
  • CEC
  • Auto LipSync

Upscaling

  • 1080p/4K to 8K

High Dynamic Range

  • HDR
  • HLG
  • Dolby Vision
  • HDR10+
  • Dynamic HDR

Max resolution

  • 8K / 60Hz
  • 4K / 120Hz

Acoustic / Room Correction

Audyssey

  • MultEQ XT
  • Dynamic EQ
  • Dynamic Volume

Other

  • Variable Crossover
  • Optimized Bass Redirection

Music File Support

Lossy Format Support

  • MP3
  • WMA
  • AAC

Lossless Format Support

  • FLAC (24bit, 192kHz)
  • ALAC (24bit, 192kHz)
  • WAV (24bit, 192kHz)

DSD Audio

  • 2.8MHz
  • 5.6MHz

Gapless Playback

  • FLAC
  • ALAC
  • WAV
  • DSD

Features

  • MDAX2 Compressed Audio Enhancer
  • Network Audio Sharing

Streaming Services

Streaming Services supported

  • Apple AirPlay 2
  • Spotify Connect
  • Tidal
  • Deezer
  • SoundCloud
  • iHeart Radio
  • Amazon Music HD
  • Internet Radio provided by TuneIn
  • Roon Tested

Network Connectivity

Network

  • RJ45 Ethernet Port
  • Wi-Fi

Bluetooth

  • Bluetooth Receiver
  • Bluetooth headphone transmission

Smart Home Integration and Control

Voice Assistant Compatibility

  • Amazon Alexa
  • Google Voice Assistant
  • Apple Siri

App Support

  • Marantz AVR Remote App
  • HEOS

Zone 2 Sources

  • HDMI (2ch)
  • Coax/Optical (2ch)
  • Network streaming/USB
  • Analogue

Control

  • IP Control
  • RS232
  • Web Control
  • App Control
  • 12V DC Trigger Out
  • IR Flasher In
  • Marantz Remote Bus
  • HDMI Diagnostics

Others

  • Front Panel Port Hole OLED Display
  • Graphical User Interface in 3 languages
  • Setup Assistant
  • Smart Select on remote
  • Firmware update via network / USB
  • ECO Mode
  • Auto Power Off
  • Sleep Timer

General

Power Consumption

  • 650W PEAK
  • 75W Idle (ECO OFF)
  • 45W Idle (ECO ON)
  • <2.0W Network Standby
  • 0.5W CEC Standby
  • 0.2W Standby

Dimensions

  • 442mm Width
  • 354mm Depth
  • 165m Height
  • 235mm Height with antennas vertical
  • 10.9kg

What's in the box

  • Marantz Cinema 60
  • RC049SR Remote Control
  • Batteries for remote control
  • AM Antenna
  • FM Antenna
  • Wire Labels
  • Quick Start Guide
  • Audyssey Calibration Microphone
  • Cardboard Microphone Stand
  • 2 Detachable Wi-Fi / Bluetooth Antennas
  • AC Power Cable
