MARANTZ AV30 AV Processor

11.4-Channel Balanced AV Preamplifier Powered by HEOS™

AV 30 delivers exceptional performance and capability for large media rooms and dedicated home theater systems. This 11.4-channel balanced AV preamplifier features Marantz HDAM discrete circuitry and boasts seven HDMI inputs, each of which is 8K Ultra HD compatible. Powered by HEOS™ for high-resolution music streaming, AV 30 includes room correction with Audyssey MultEQ XT32 and optional Dirac Live. It delivers Dolby Atmos, DTS:X Pro, AURO-3D, and features multiple inputs and balanced pre-amp outputs for all channels, including four independent subwoofers.

$6,500.00

Brand

Marantz

DESCRIPTION

Elevated Listening Begins Here

AV 30 is engineered to bring exceptional cinema sound into your home. Advanced Marantz technology and expert craftsmanship ensure your entertainment is always delivered with powerful precision—from an elegant, timeless design.

AV30

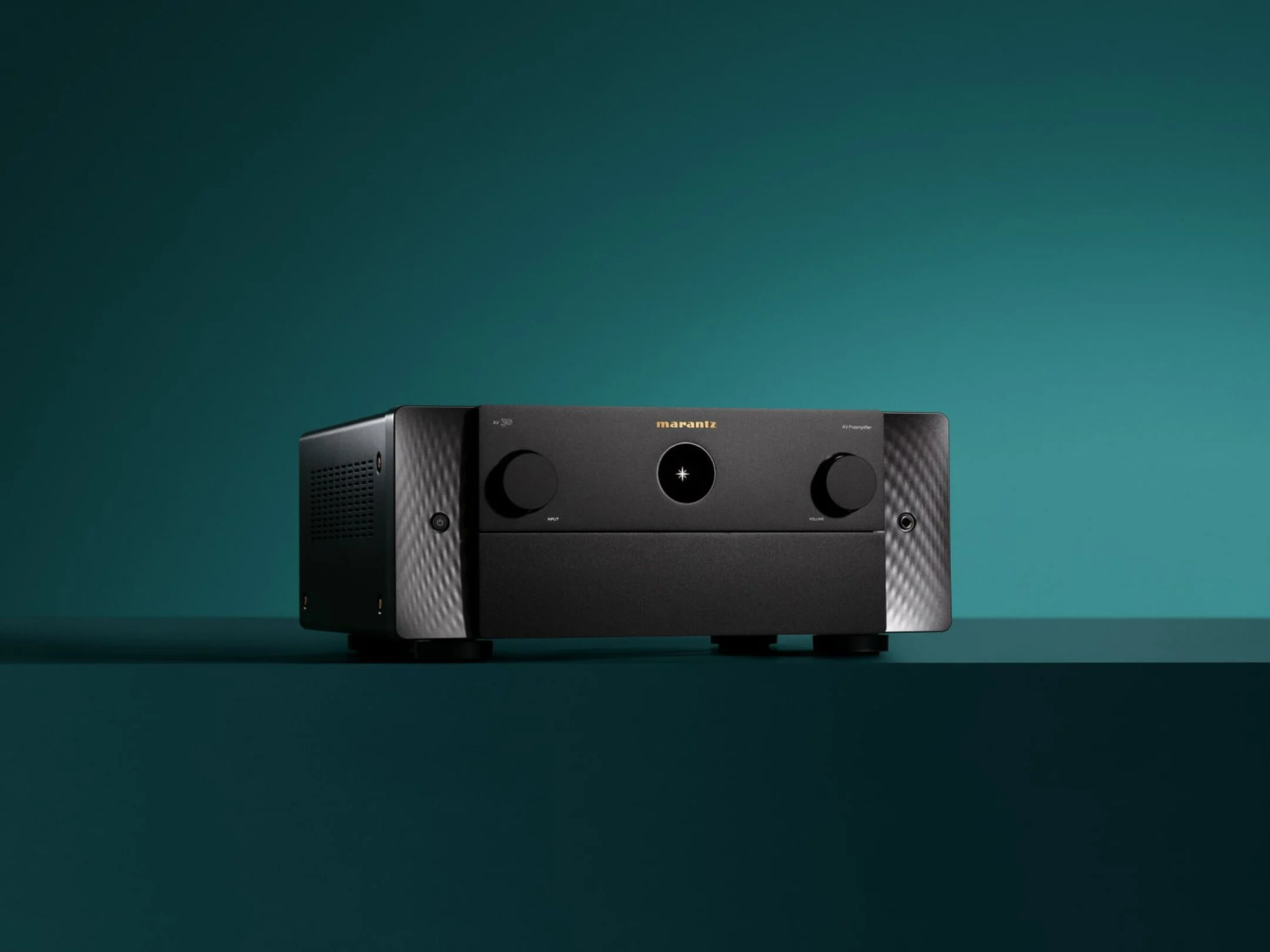

Exceptional Performance

Enjoy every movie moment with immersive realism and lifelike detail. AV 30 delivers an outstanding theater experience—in your home.

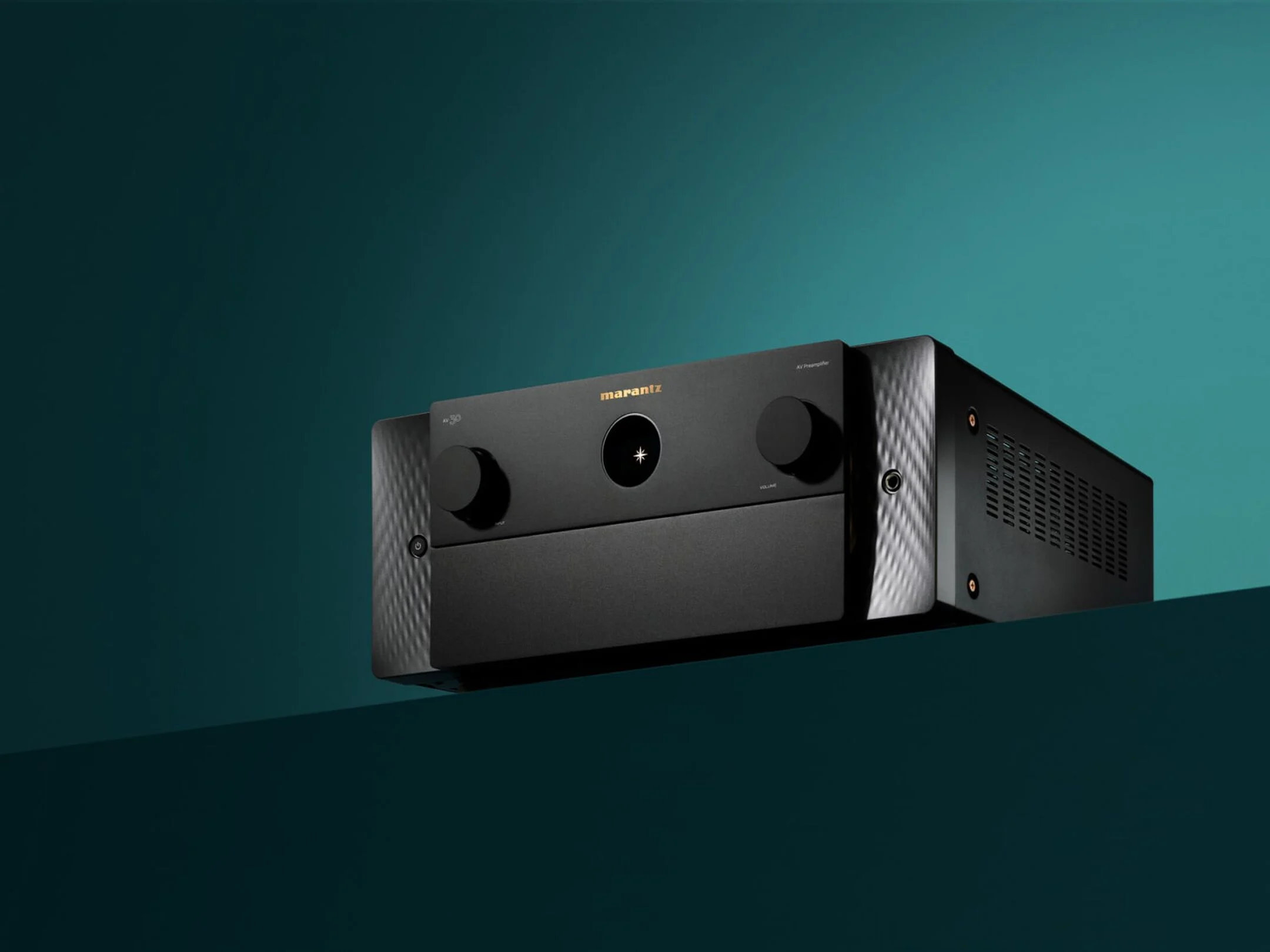

Ultimate Flexibility

The 11.4-channel onboard processing supports a wide range of speaker configurations. Perfect for all forms of immersive audio suitable for even large home theater systems.

Technology Leader

AV 30 comes packed with support for the latest high-resolution movie formats, plus 8K video compatibility, room optimization, and Powered by HEOS™ technology to simplify and elevate your listening.

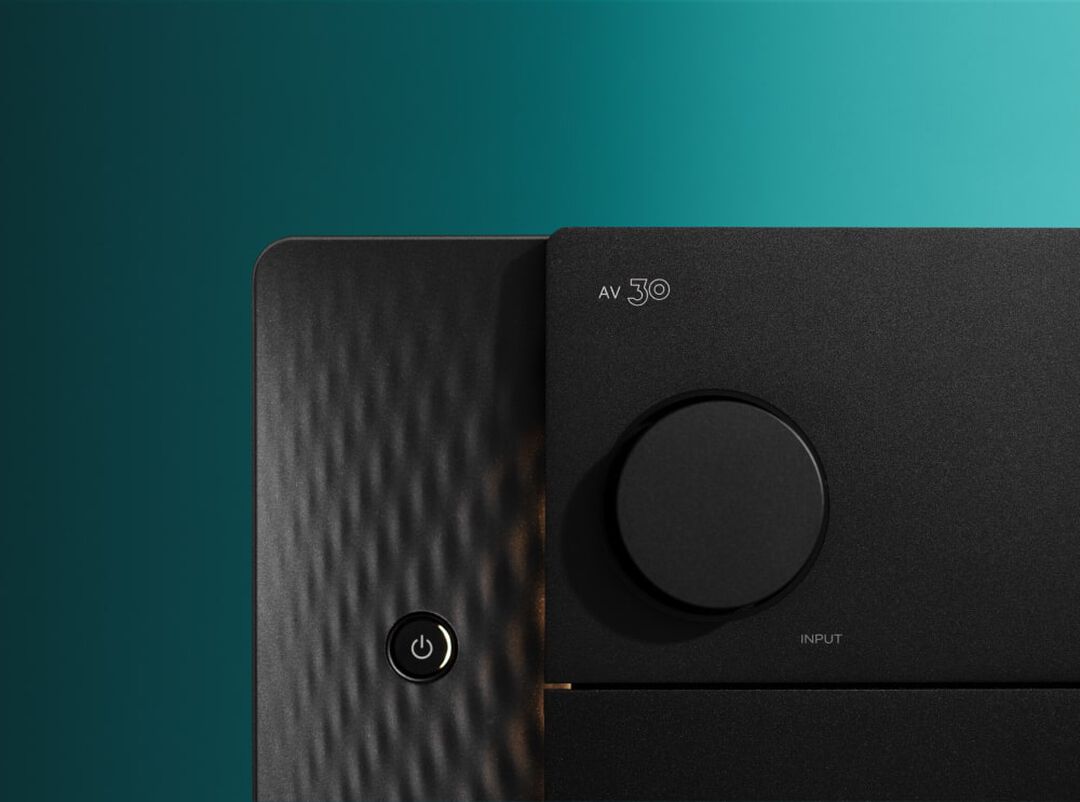

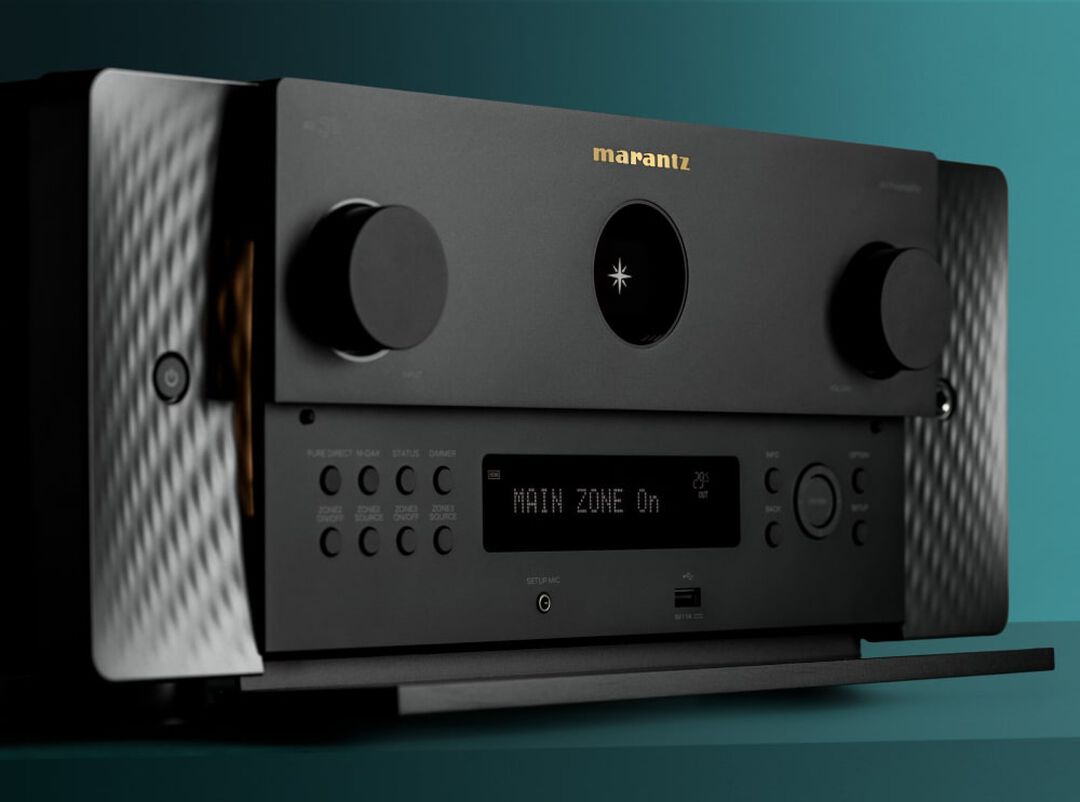

Timeless Design

A modern expression of timeless design principles, AV 30 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

For the Soundtrack of Your Life

HEOS® has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

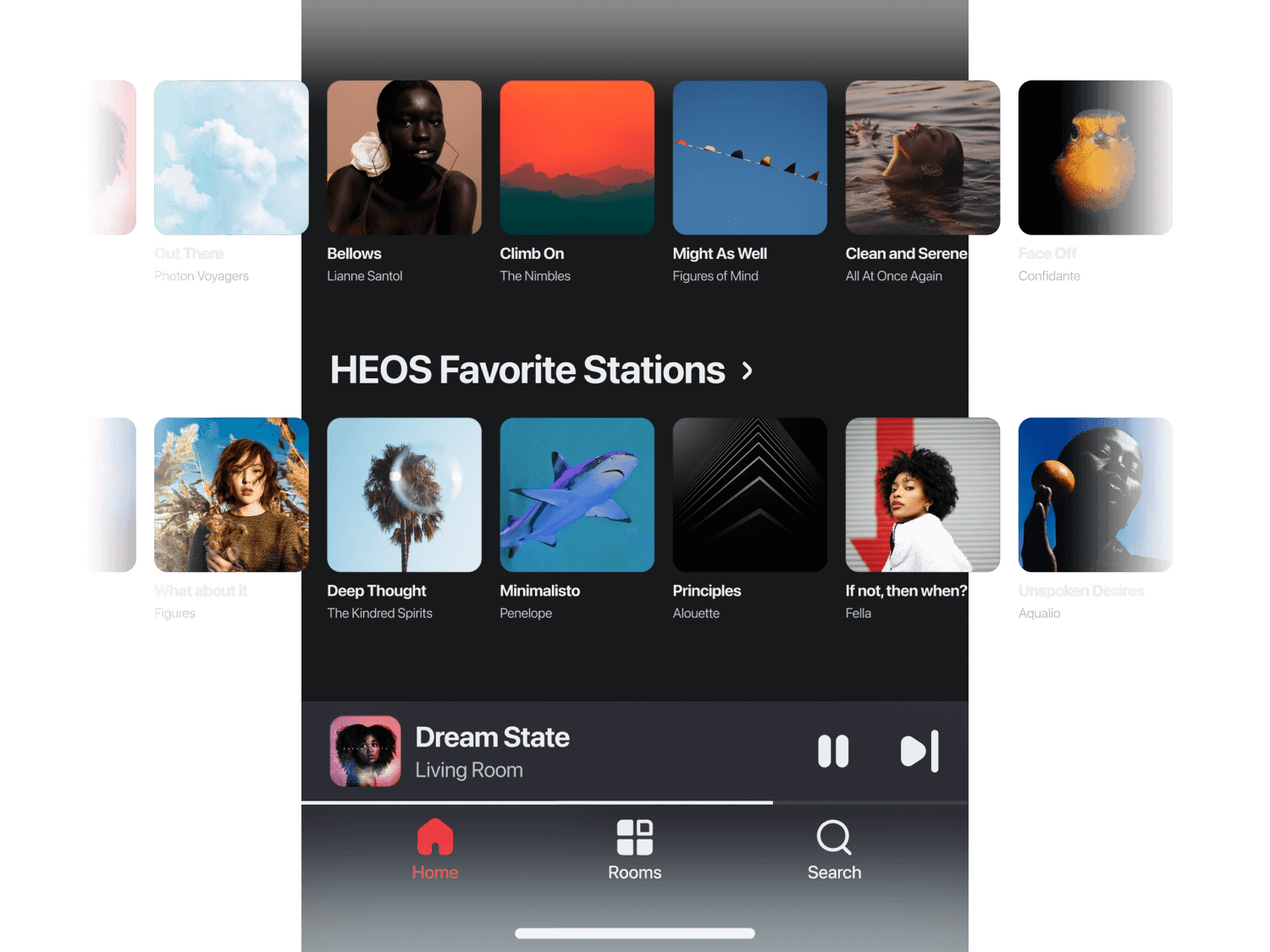

Search for Songs Across Platforms

HEOS® has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

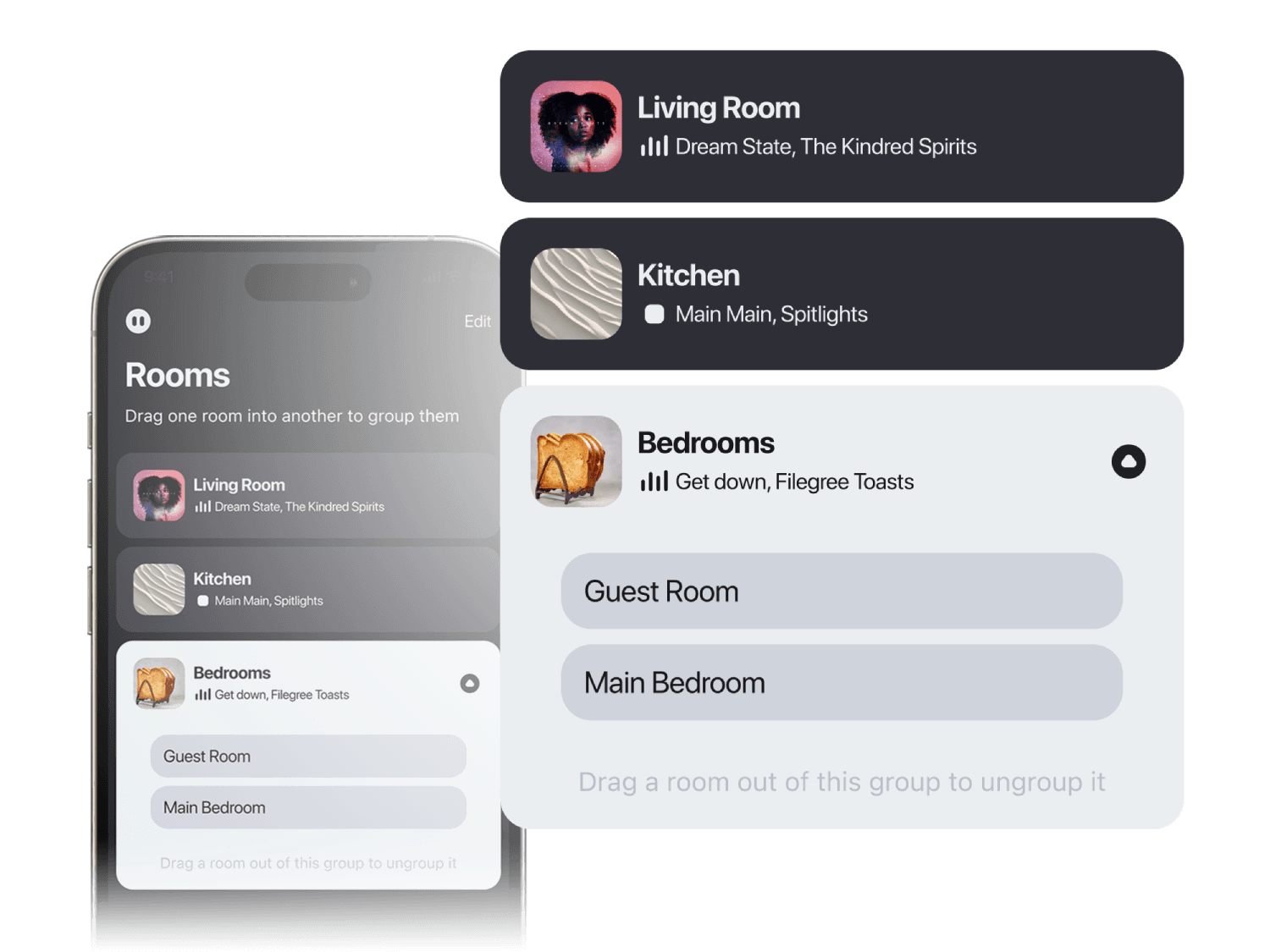

Your Whole Home in One Place

Devices Powered by HEOS™ allow you to control multiple rooms, all with the HEOS app.

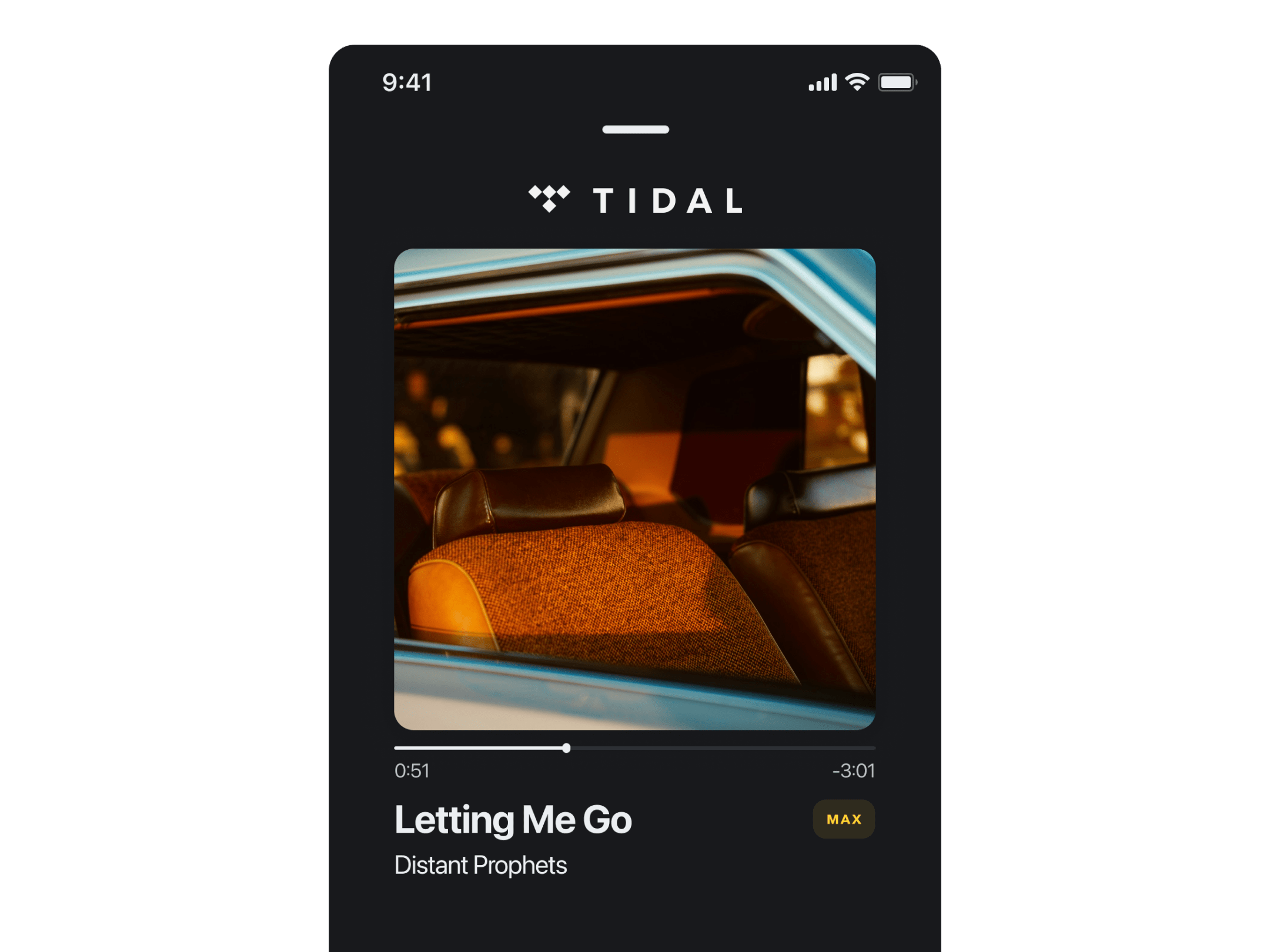

Hi-Resolution Streaming

Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.

Key Technologies

SPOTIFY

AIRPLAY

DOLBY ATMOS

DOLBY VISION

DTS:X

DTS:X PRO

Powered by HEOS™

IMAX Enhanced

8K

Bluetooth

Amazon Music

HDMI (eARC)

Deezer

Tidal

Roon Ready

Qobuz

Features

Features
Detailed and immersive sound transforms your home theater 11.4-channel output allows a variety of speaker layouts Decodes Dolby Atmos, DTS:X, IMAX Enhanced audio, and AURO-3D Acoustic room tuning with Audyssey MultEQ XT32 and optional Dirac Live, including Bass Control and Active Room Treatment Seven HDMI inputs (all 8K) and three outputs for the highest resolution video Sound Master tuned for warm, rich and detailed Marantz sound High-quality HD on-screen interface makes setup intuitive Balanced and RCA outputs for external power amplifiers Elegant design matches beautiful sound Optimized HDAM-SA2 for fast response and low distortion

Specifications

Specification

GENERAL SPECIFICATIONS
Product Type	AV Processor AV Preamplifier
Processing Channels	11.4
Remote Control	RC053SR Backlit
Power Consumption	80W 0.2W Standby 0.5W Standby (CEC) 2.0W Standby (Network Standby)
What's in the Box	Main unit Remote control Batteries Wire labels Quick start guide Audyssey microphone Cardboard microphone stand 2 x External detachable antennas AC cord
AUDIO PROCESSING
Surround Formats	DTS DTS-HD Master Audio DTS:X DTS Virtual:X DTS Neural:X Dolby Dolby TrueHD Dolby Atmos Dolby Height Virtualization Dolby Surround IMAX Enhanced Auro-3D 360 Reality Audio MPEG-H Multichannel Stereo
Room Correction	Audyssey MultEQ XT32 Dynamic EQ Dynamic Volume LFC Dirac Live Upgradeable Variable Cross Over Optimized Bass Redirection Bass Sync
Supported Audio Formats	PCM MP3 WMA AAC FLAC Up to 24-bit / 192kHz ALAC Up to 24-bit / 192kHz WAV Up to 24-bit / 192kHz DSD Up to DSD128 (5.6MHz)
Gapless Playback	FLAC ALAC WAV DSD
PROCESSOR FEATURES
Processor Features	Copper-Plated Chassis Toroidal Power Transformer Current Feedback Topology HDAM-SA2 Pure Direct Gold-Plated RCA Terminals Clock Jitter Reducer MDAX2 Metal Front Panel
ANALOGUE INPUTS
Analogue Inputs	6 x RCA analogue audio inputs 1 x Phono MM (RCA)
DIGITAL INPUTS
HDMI Inputs	7
Digital Audio Inputs	2 x Optical 2 x Coaxial
HDMI Outputs	2 x Main Zone 1 x Zone 2
HDMI Input Resolution Support	Up to 8K / 60Hz Up to 4K / 120Hz
HDMI Output Resolution Support	Up to 8K / 60Hz Up to 4K / 120Hz 2 outputs support pass-through up to 40Gbps
HDMI Version	HDMI 2.1
HDCP Version	HDCP 2.3
HDR Support	HDR HLG Dolby Vision HDR10+ Dynamic HDR
HDMI Features	eARC GUI Overlay ALLM VRR QFT HDMI Pass-Through in Standby Mode DSD Audio Capability Auto LipSync 1080p / 4K to 8K upscaling
OUTPUTS
Pre-Outs	11.4 RCA pre-outs 11.4 XLR pre-outs Assignable Pre-Out Bi-Amp Drive Assignable Pre-Out
Subwoofer Outputs	4 x Independent
Zone Outputs	2 x Analogue zone outputs 1 x HDMI Zone 2 output
CONNECTIVITY
Network Connections	Wi-Fi Bluetooth Ethernet
Bluetooth	Bluetooth audio streaming Bluetooth retransmit for Bluetooth headphones
Control Connections	IP Control RS232 Control Web Control App Control IR Flasher In Marantz Remote Bus 3 x DC Trigger Outputs HDMI Diagnostics
NETWORK AND STREAMING
Streaming Services	TuneIn Spotify Amazon Music TIDAL Deezer Napster SoundCloud
Streaming Protocols	HEOS AirPlay 2 Spotify Connect Tidal Connect Bluetooth Roon Ready
Network Functions	HEOS Multi-Room and Streaming 3 Zone multi-room audio Zone HDMI output from HDMI source
Compatible Control Apps	Marantz AVR Remote HEOS Android iOS Amazon Kindle
USB FUNCTIONS
USB Functions	Front USB mass storage input Accessible via HEOS app Rear USB power supply
MULTI-ZONE FUNCTIONALITY
Zone Audio Source Support	HDMI 2 channel Optical / Coaxial 2 channel Network / USB Analogue
Zone Audio Output	Pre-Out RCA
Zone Video Output	HDMI (2nd Zone)
DISPLAY AND INTERFACE
Front Display	2-Line FLD Port Hole OLED
GUI	Modern HD GUI 9 languages Setup Assistant Smart Select
Firmware Update	Network USB
Other Interface Features	Auto Speaker Setup by Microphone Auto Power Off Sleep Timer
DIMENSIONS AND WEIGHT
Dimensions	442mm Width 414mm Depth 191mm Height 254mm Height with antenna vertical
Weight	11.1kg
